Instrument Cluster / Carrier

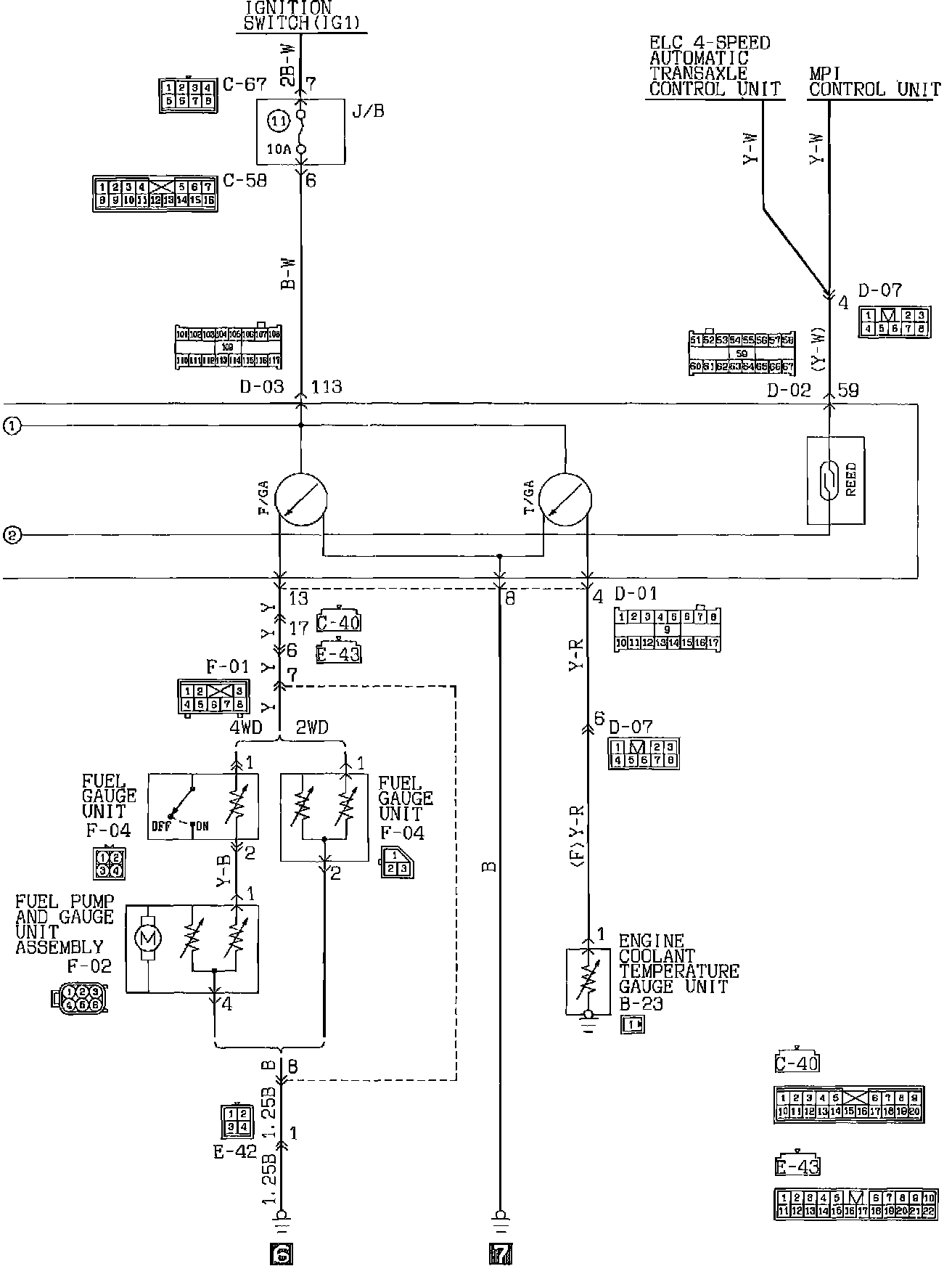

Instrument Panel (Meters And Gauges):

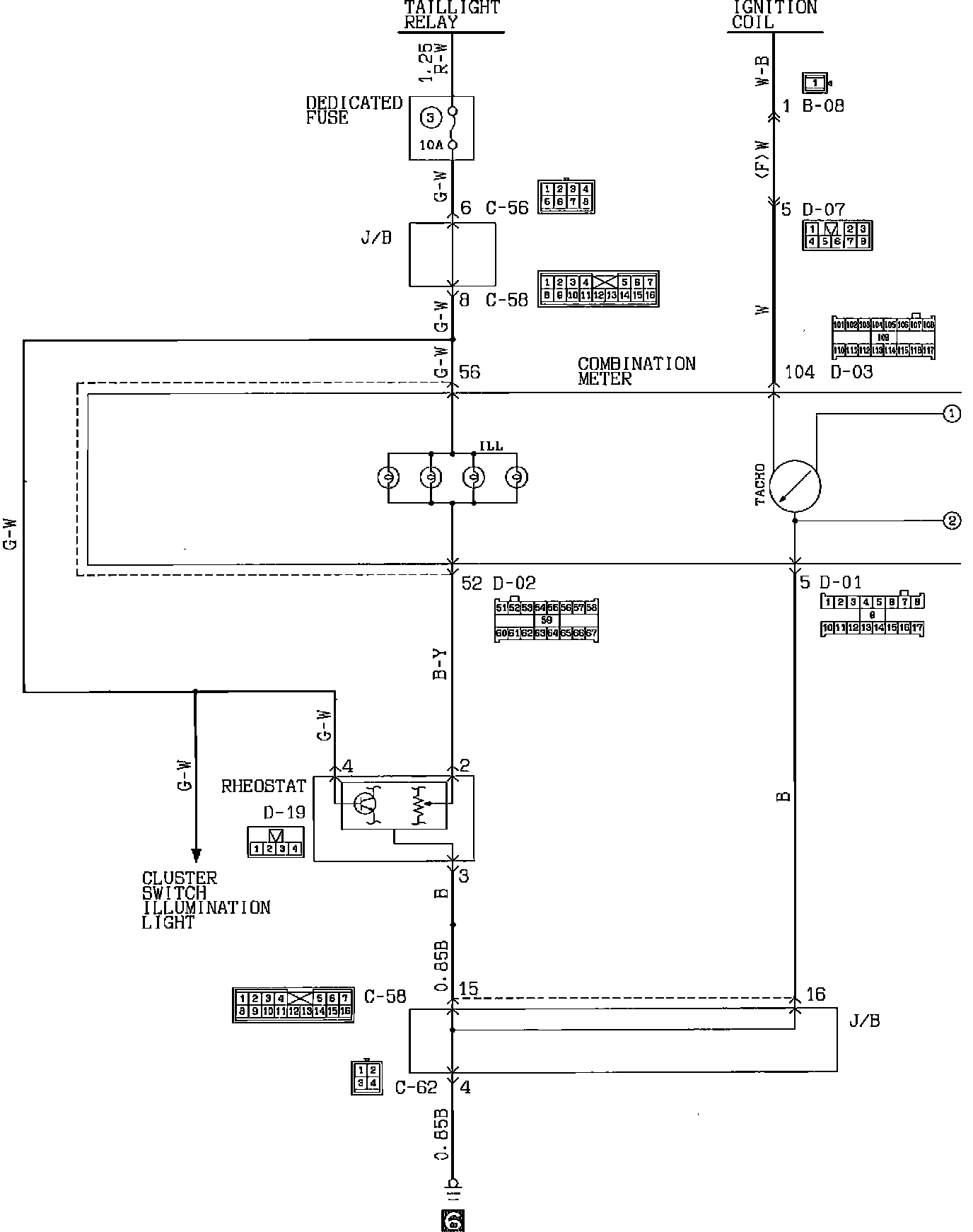

Instrument Panel (Meters And Gauges):
