Eagle
>>
1993
>>
Summit Vista AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Vehicle Fusible Link and Fuse Locations
Vehicle Fusible Link and Fuse Locations
Power Distribution:

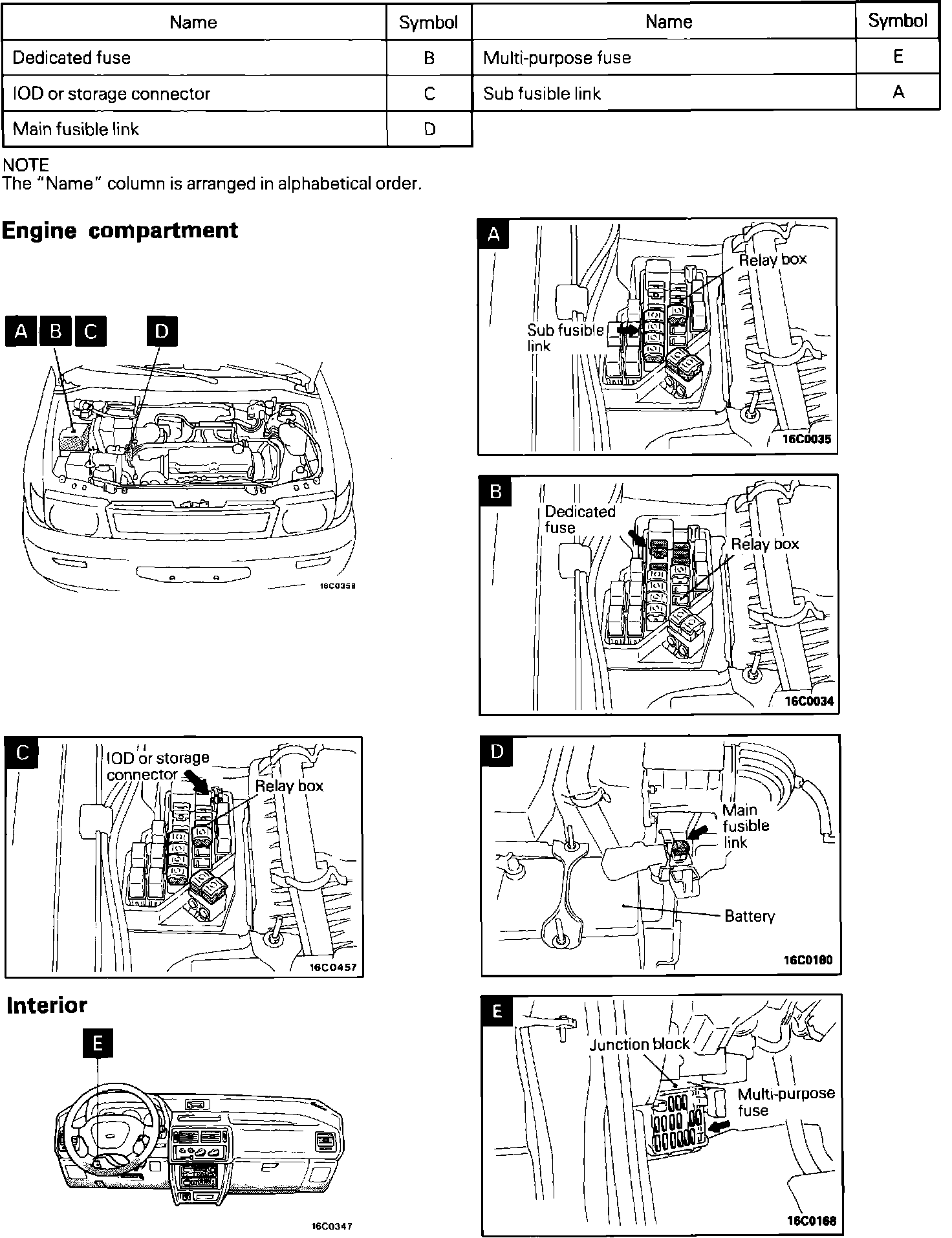

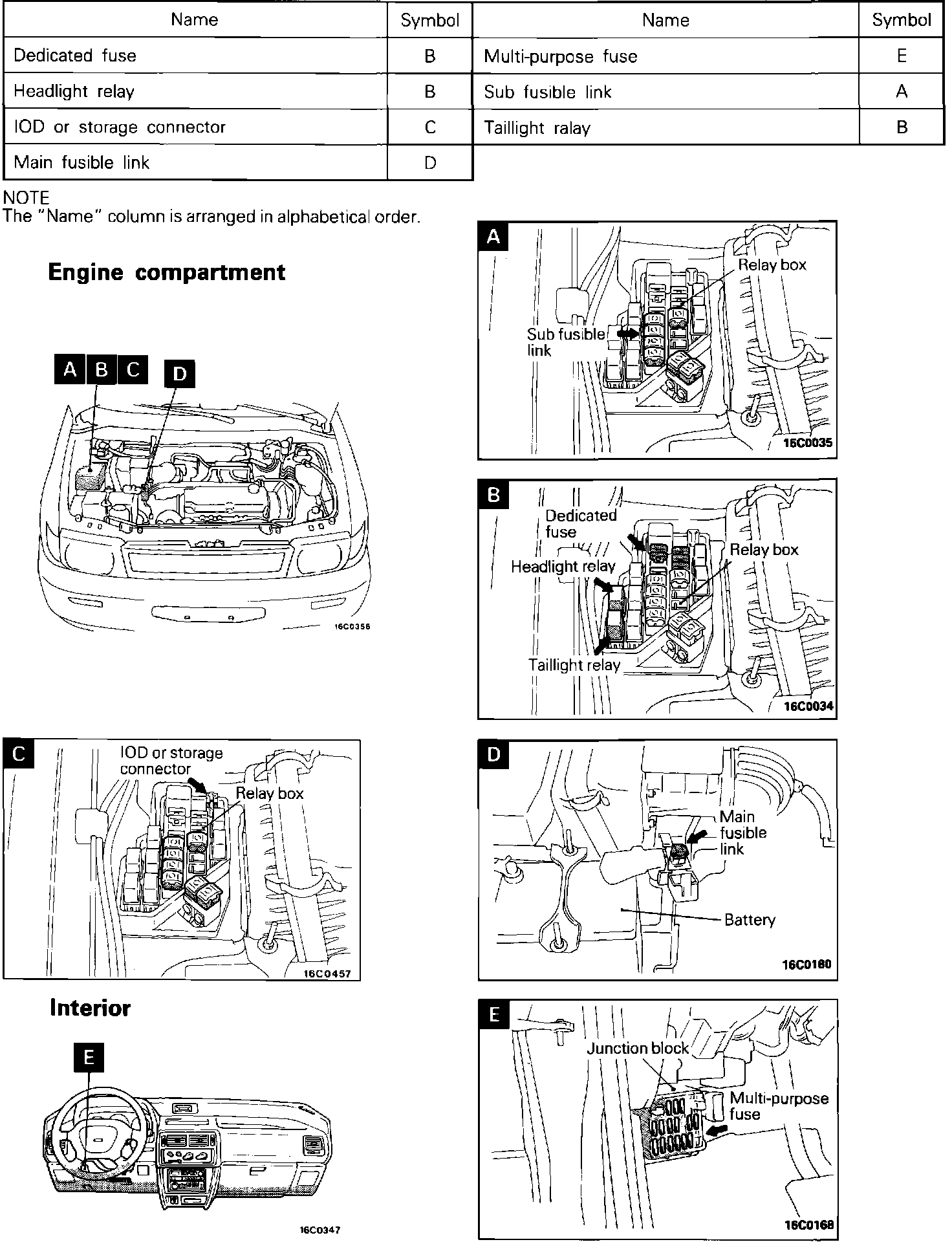

Fusable Link And Fuse Locations:
