Home >> Eagle >> 1993 >> Summit Vista AWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Powertrain Management >> Locations

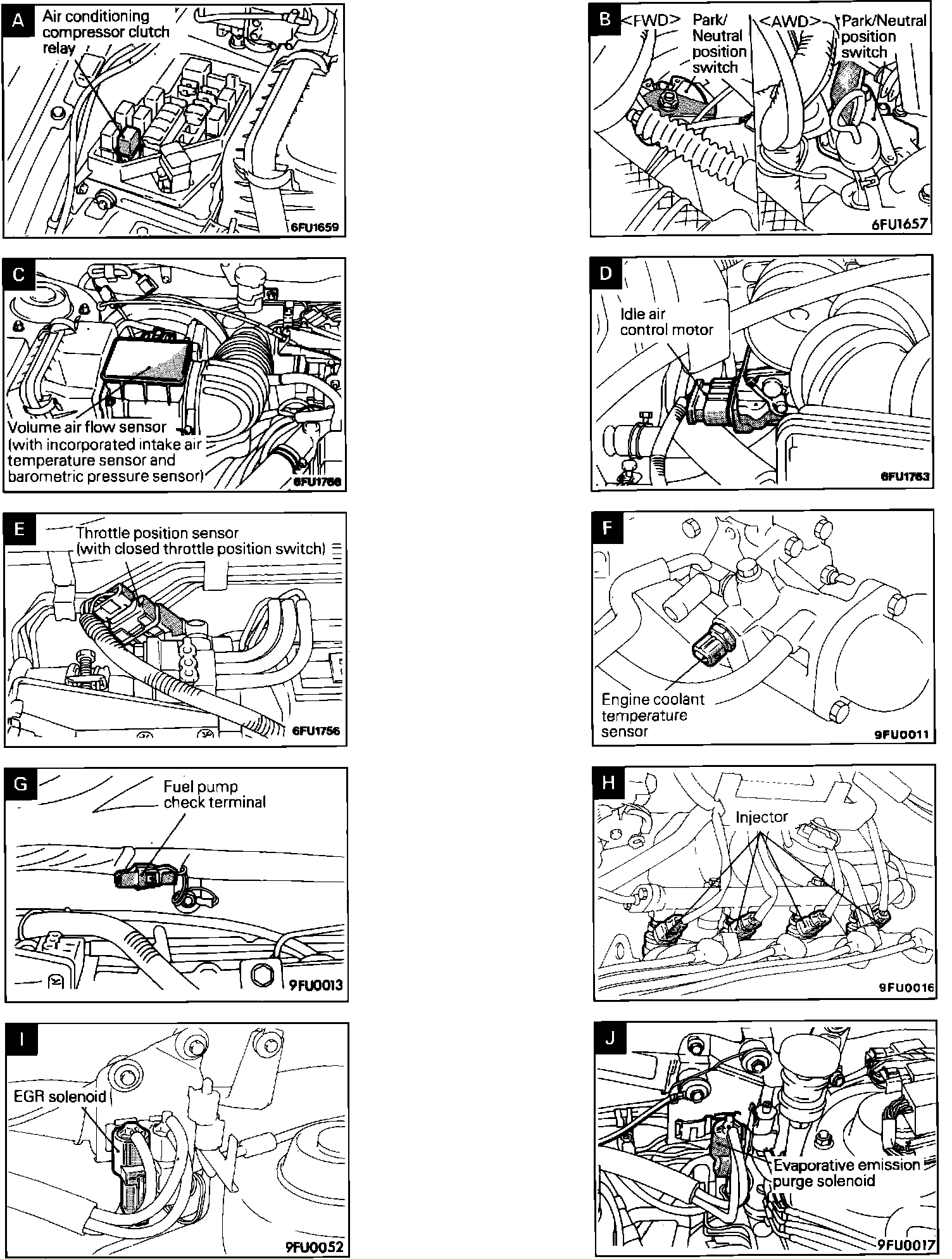

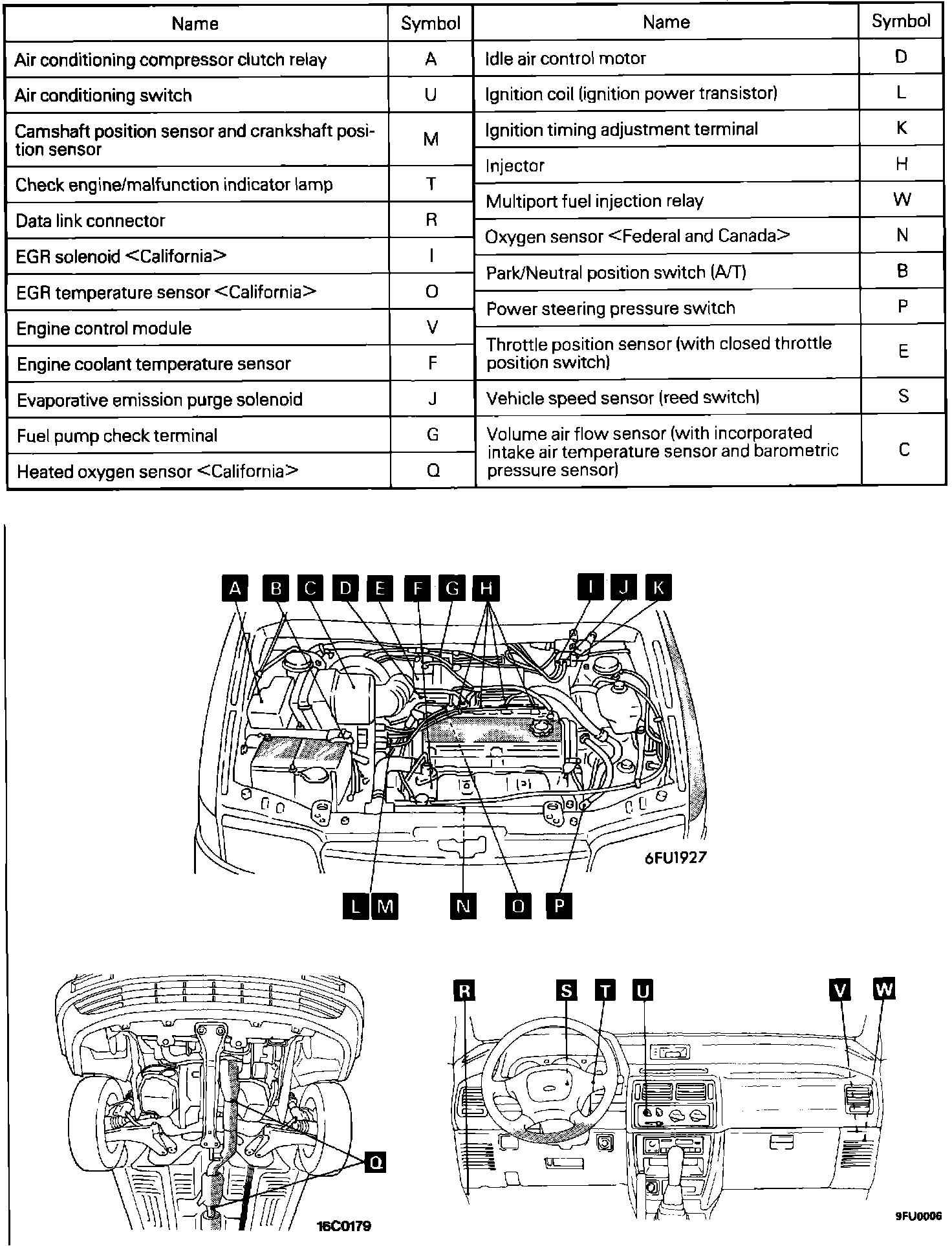

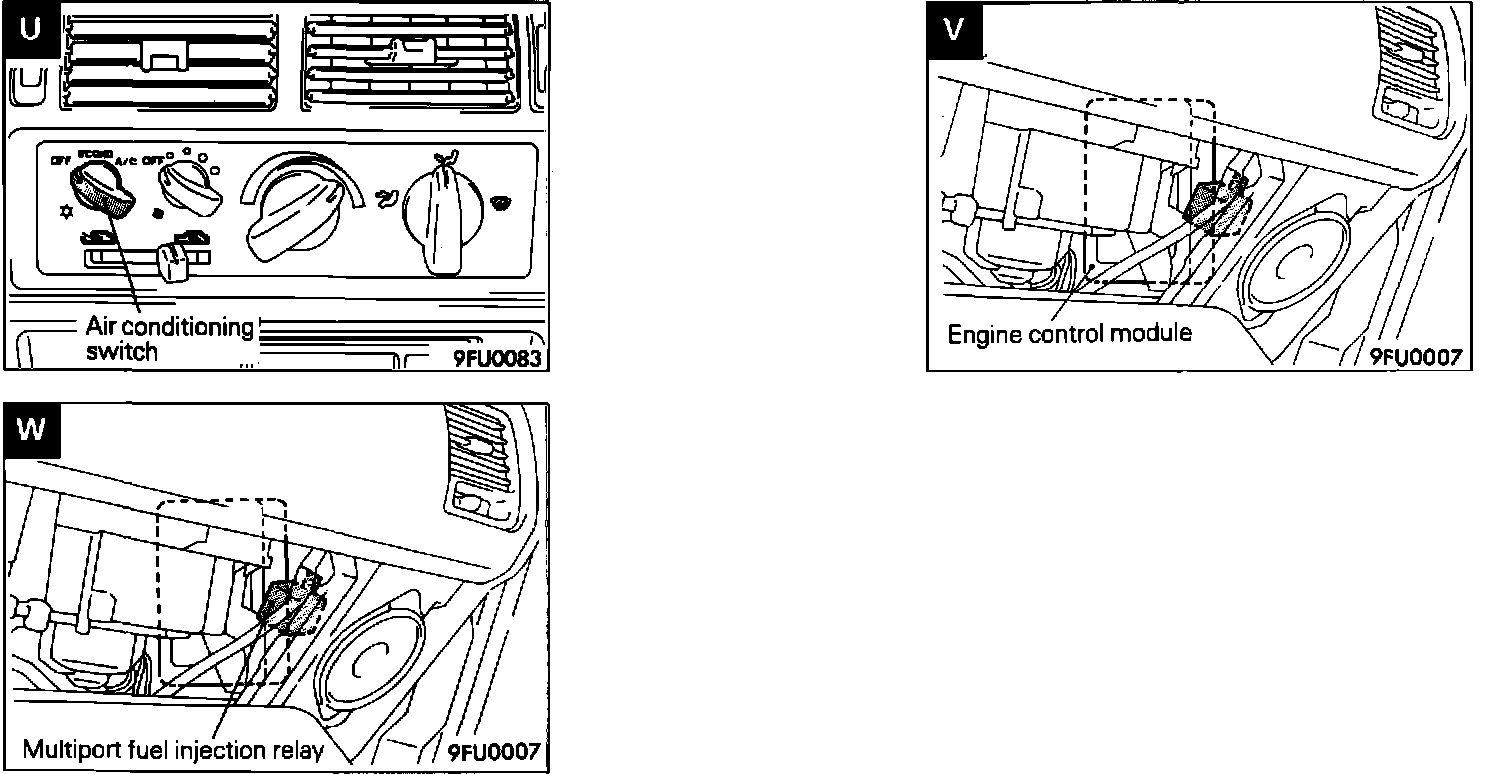

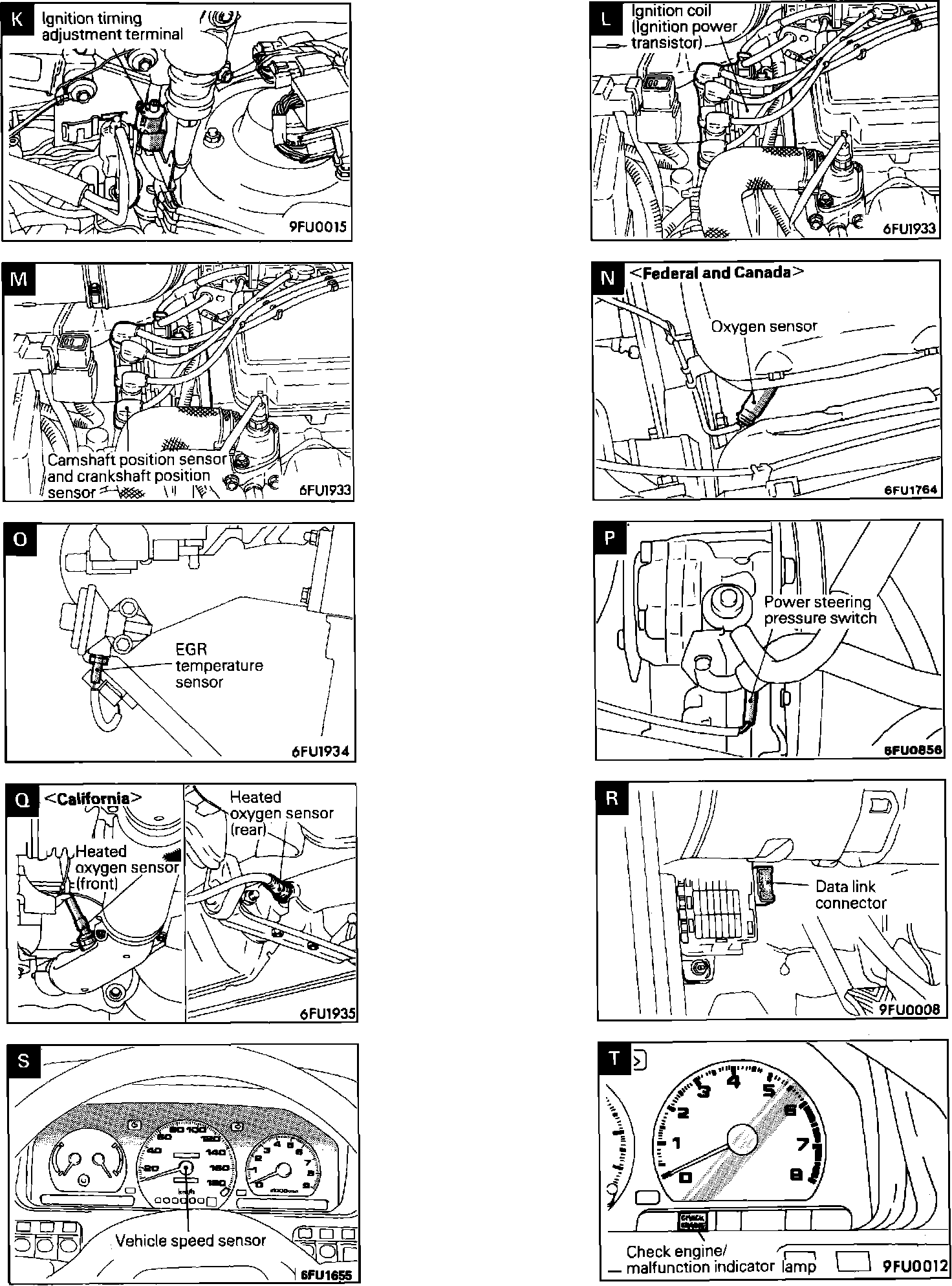

Powertrain Management: Locations

MFI System:



MFI System:



MFI System:



MFI System:
