EGR Temperature Sensor: Locations

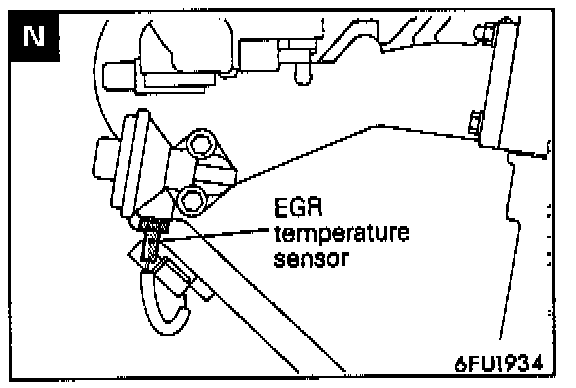

EGR Temperature Sensor:







Screwed into the EGR valve, on the firewall side of the engine.
