Home >> Eagle >> 1993 >> Summit Vista FWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

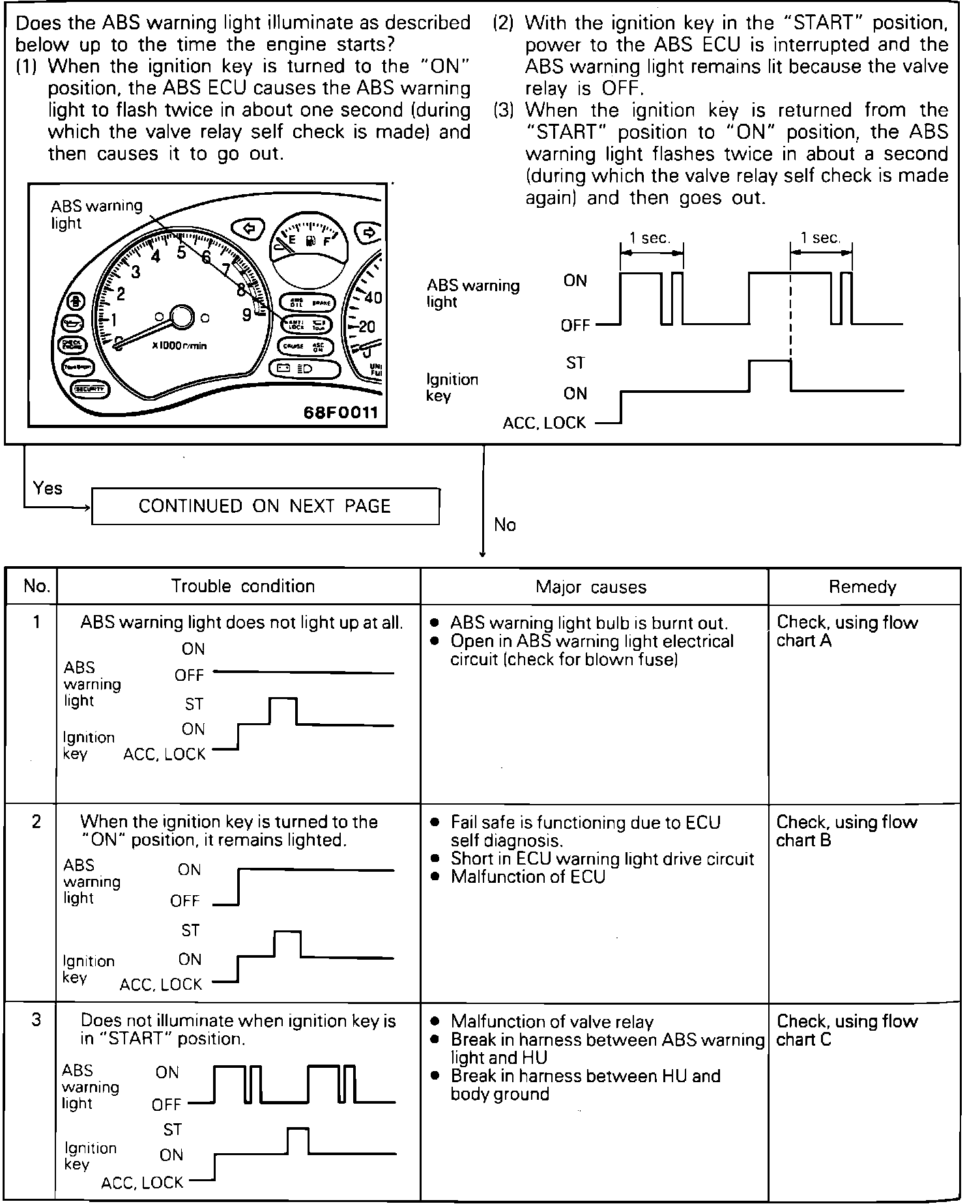

Fig. 1 Anti-lock Brake System Troubleshooting (Part 1 Of 2) FWD:

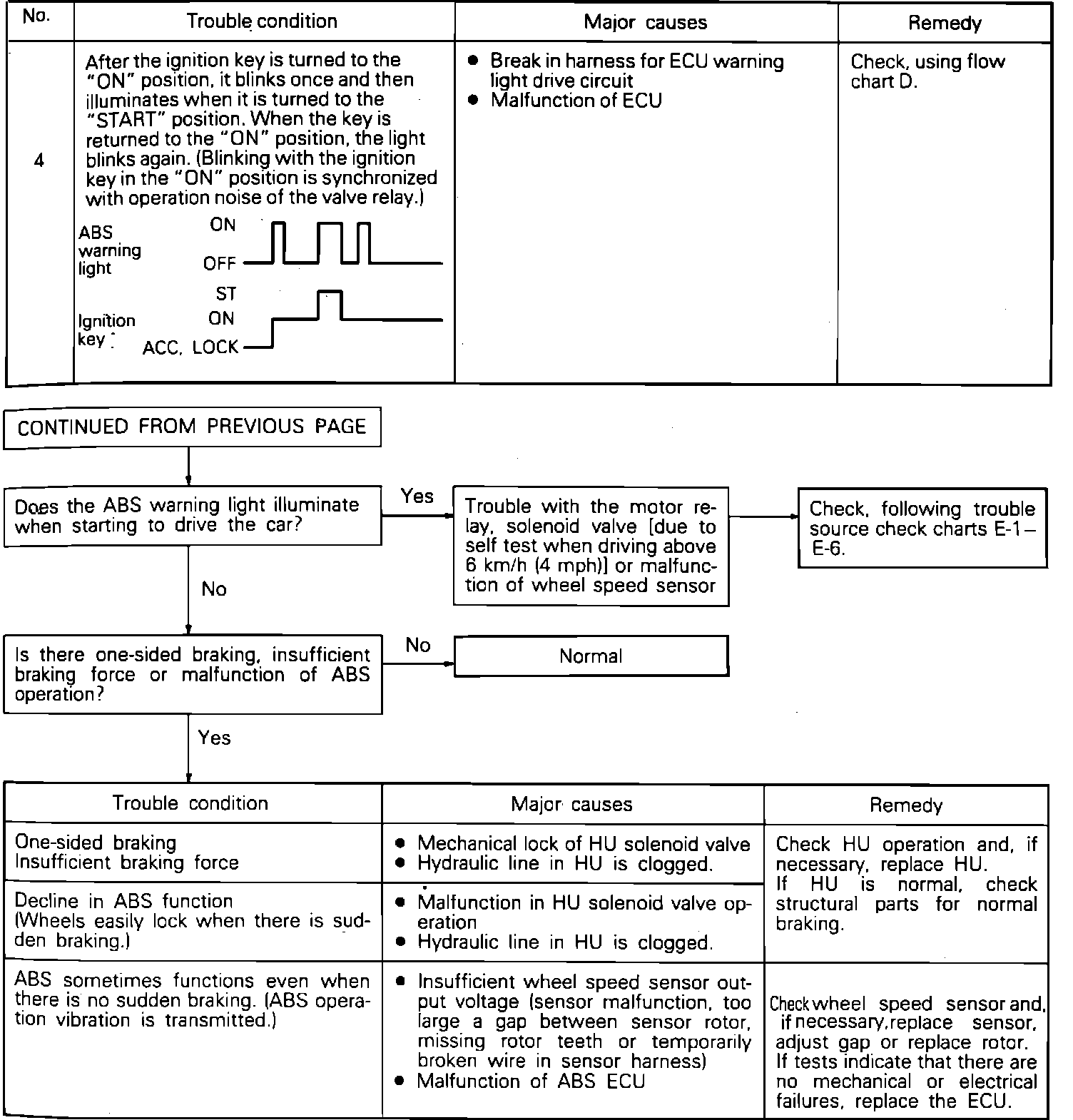

Fig. 1 Anti-Lock Brake System Troubleshooting (Part 2 Of 2) FWD:



Fig. 2 Anti-Lock Brake System Troubleshooting (Part 1 Of 2) FWD:

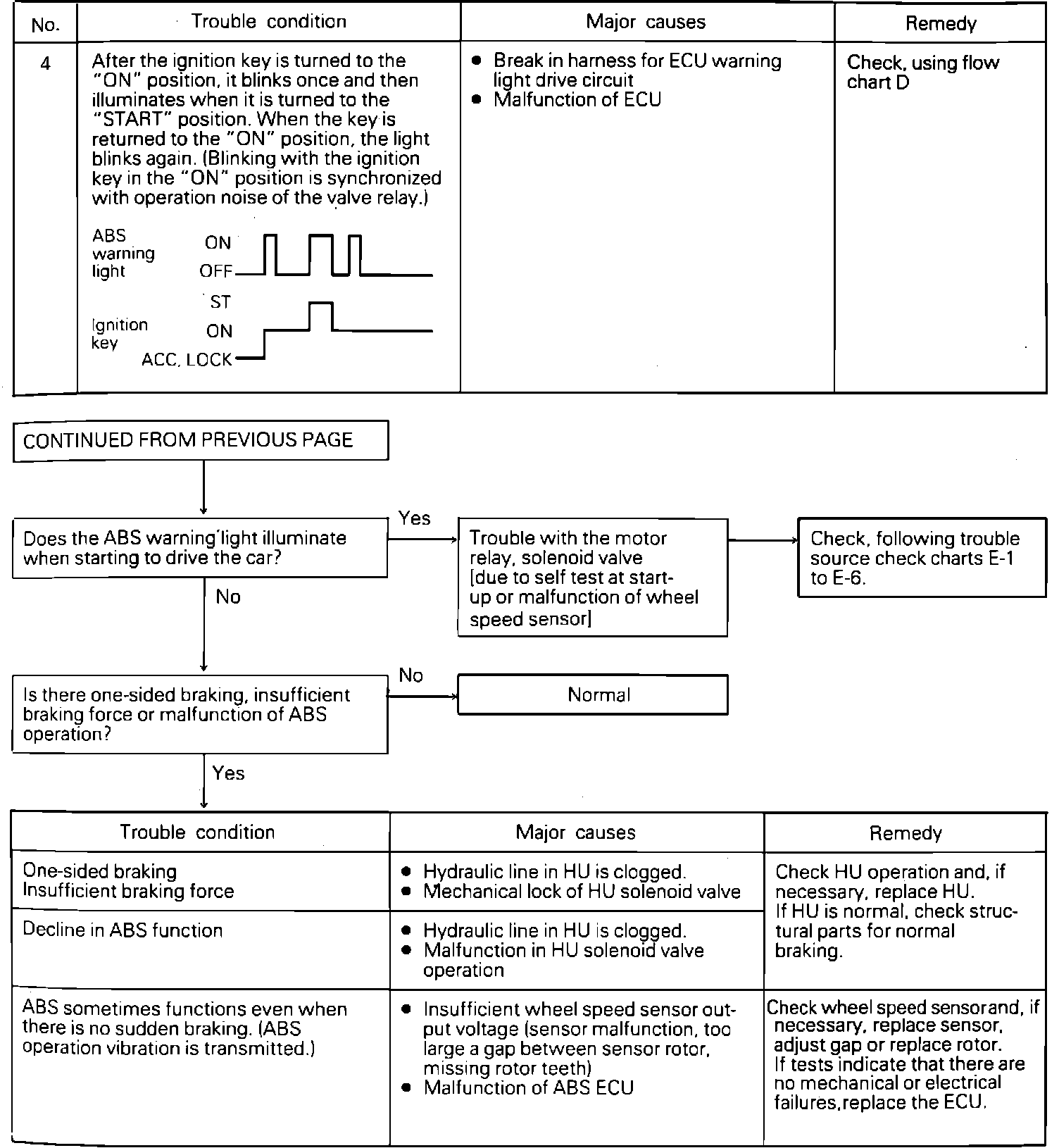

Fig. 2 Anti-Lock Brake System Troubleshooting (Part 2 Of 2) FWD:
