E Connectors - Interior Harness

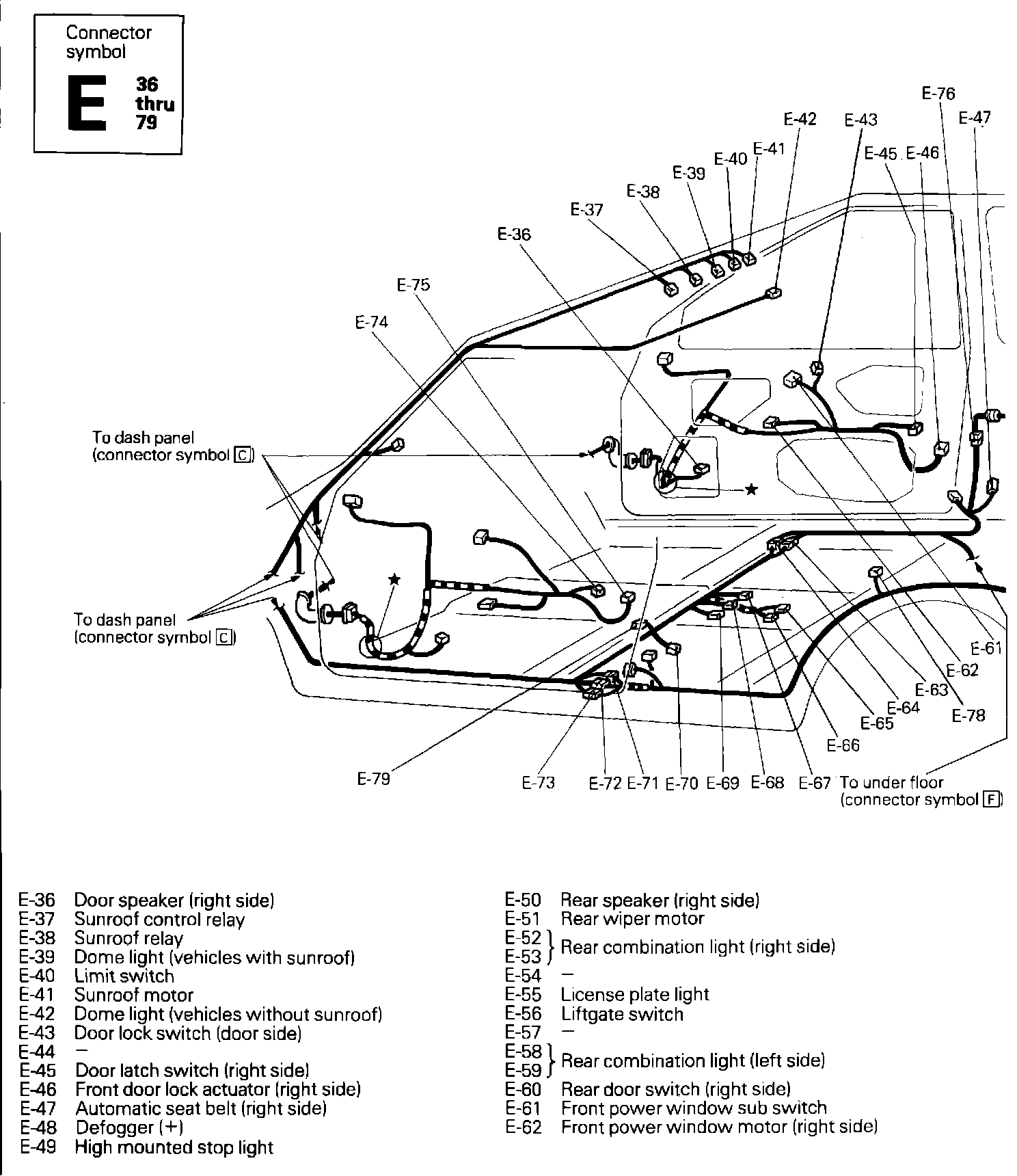

Interior Connectors:

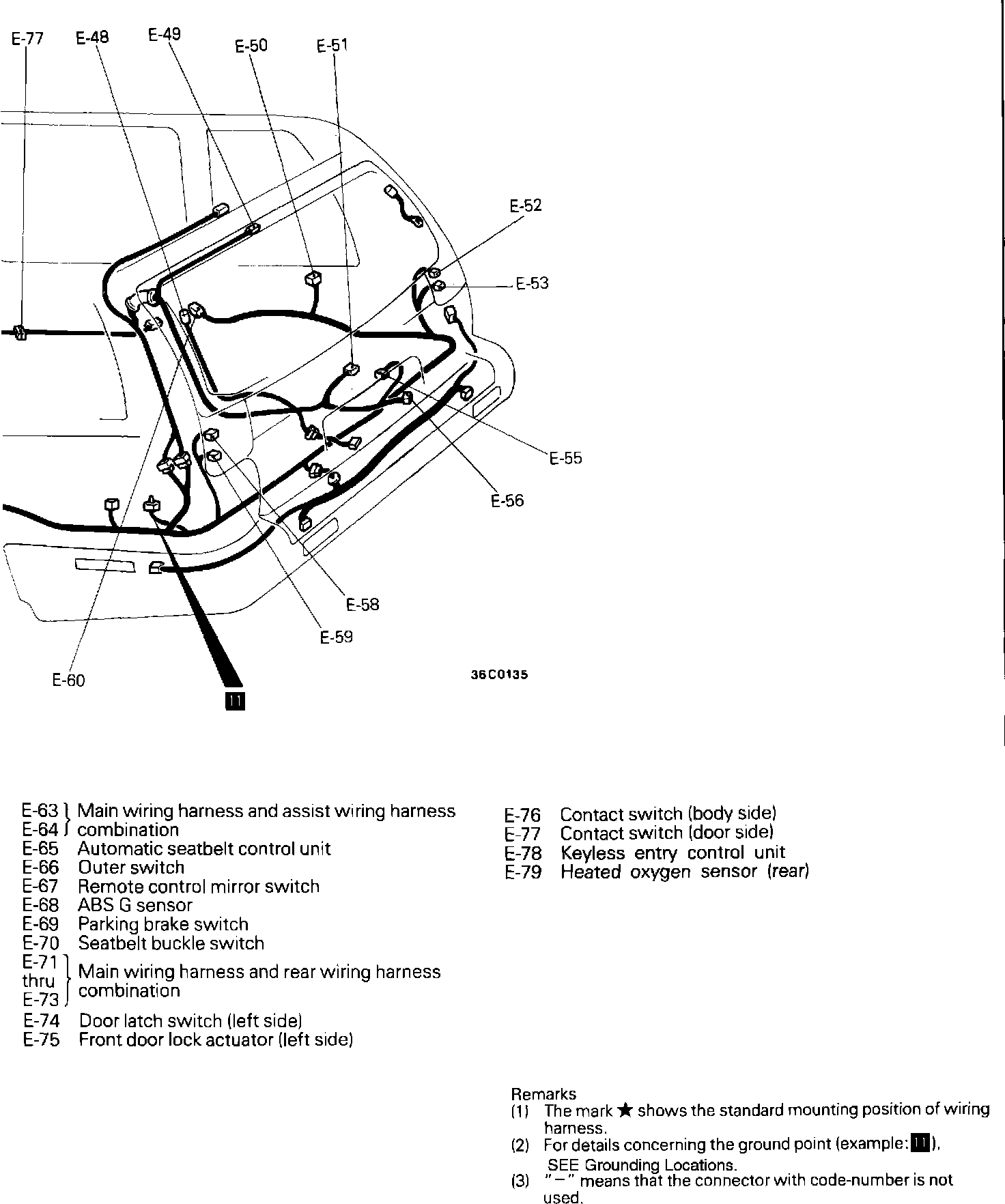

Interior Connectors:

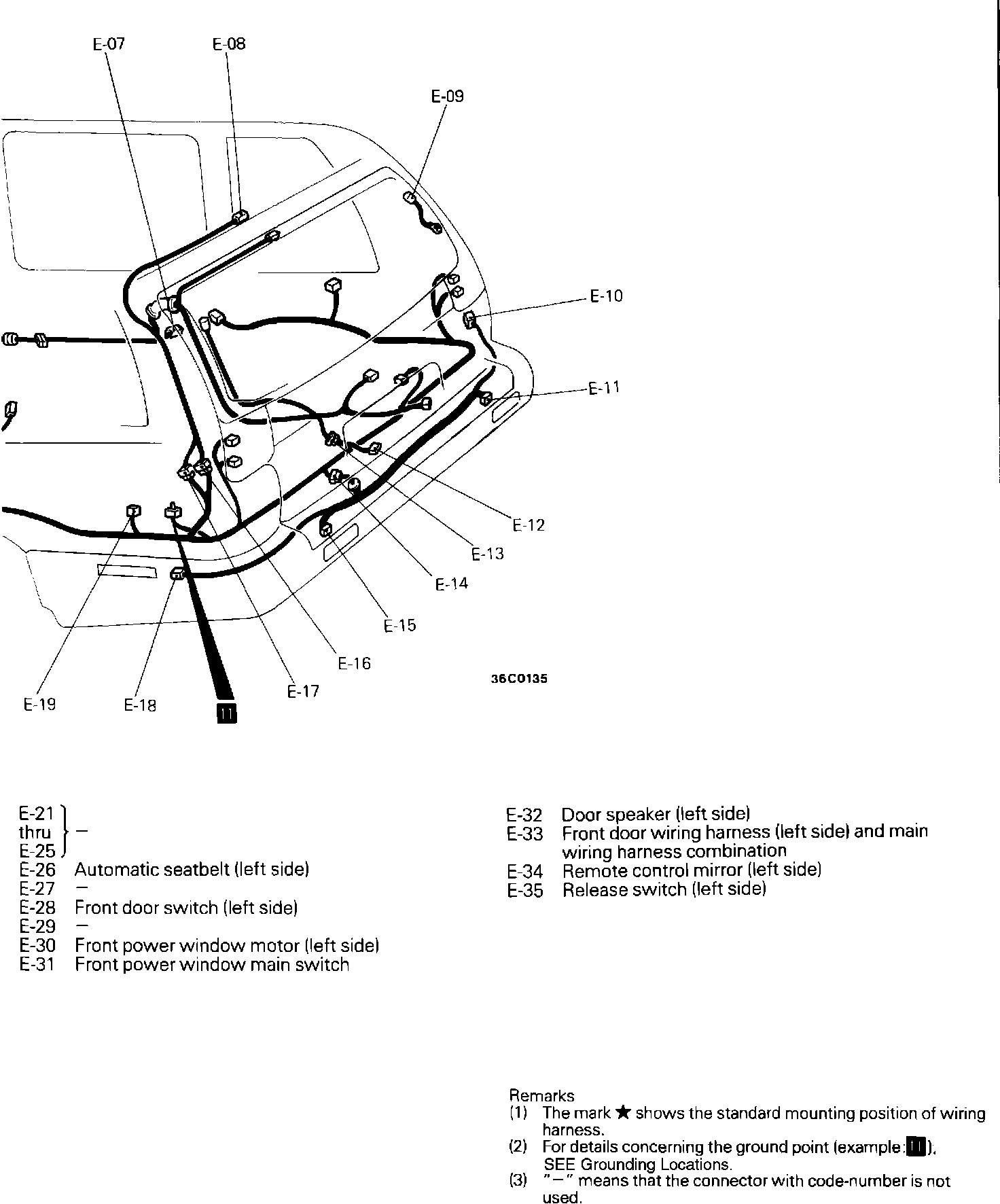

Interior Connectors:

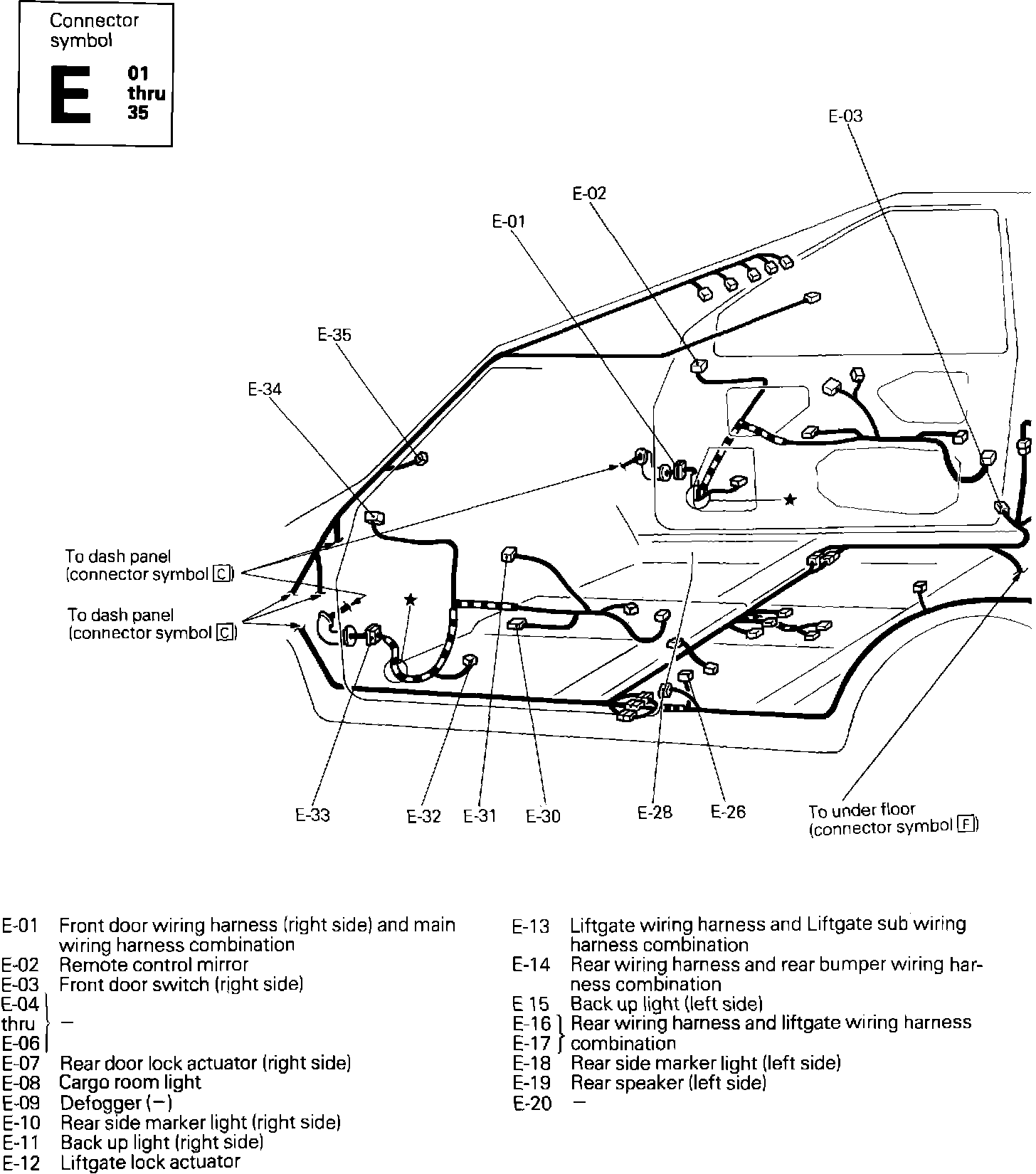

Interior Connectors:
