Chart E6 - Abnormality of Motor Drive Circuit

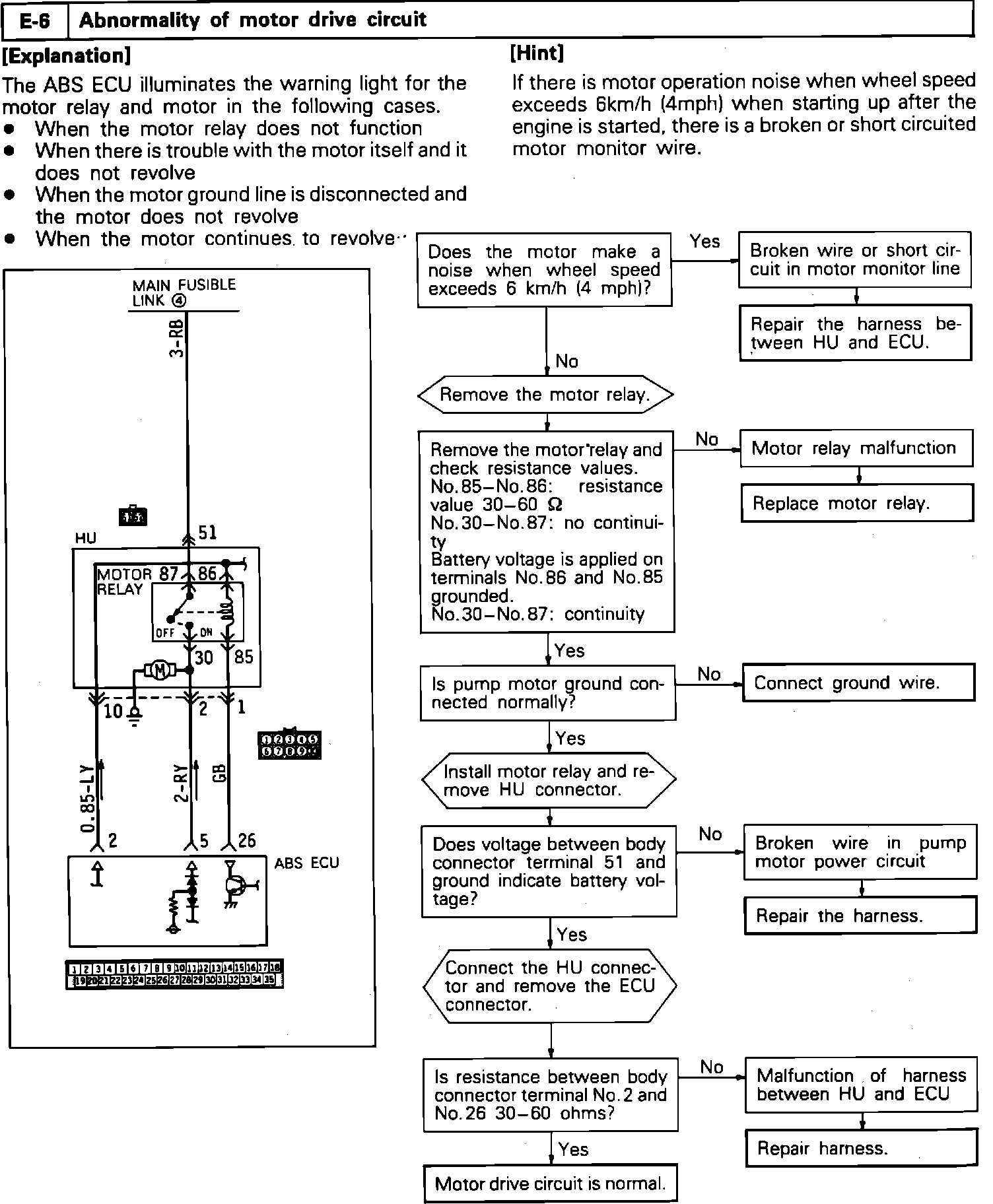

Fig. 14 ABS Chart E-6--Abnormality Of Motor Drive Circuit FWD:
