C Connectors - Dash Panel Harness

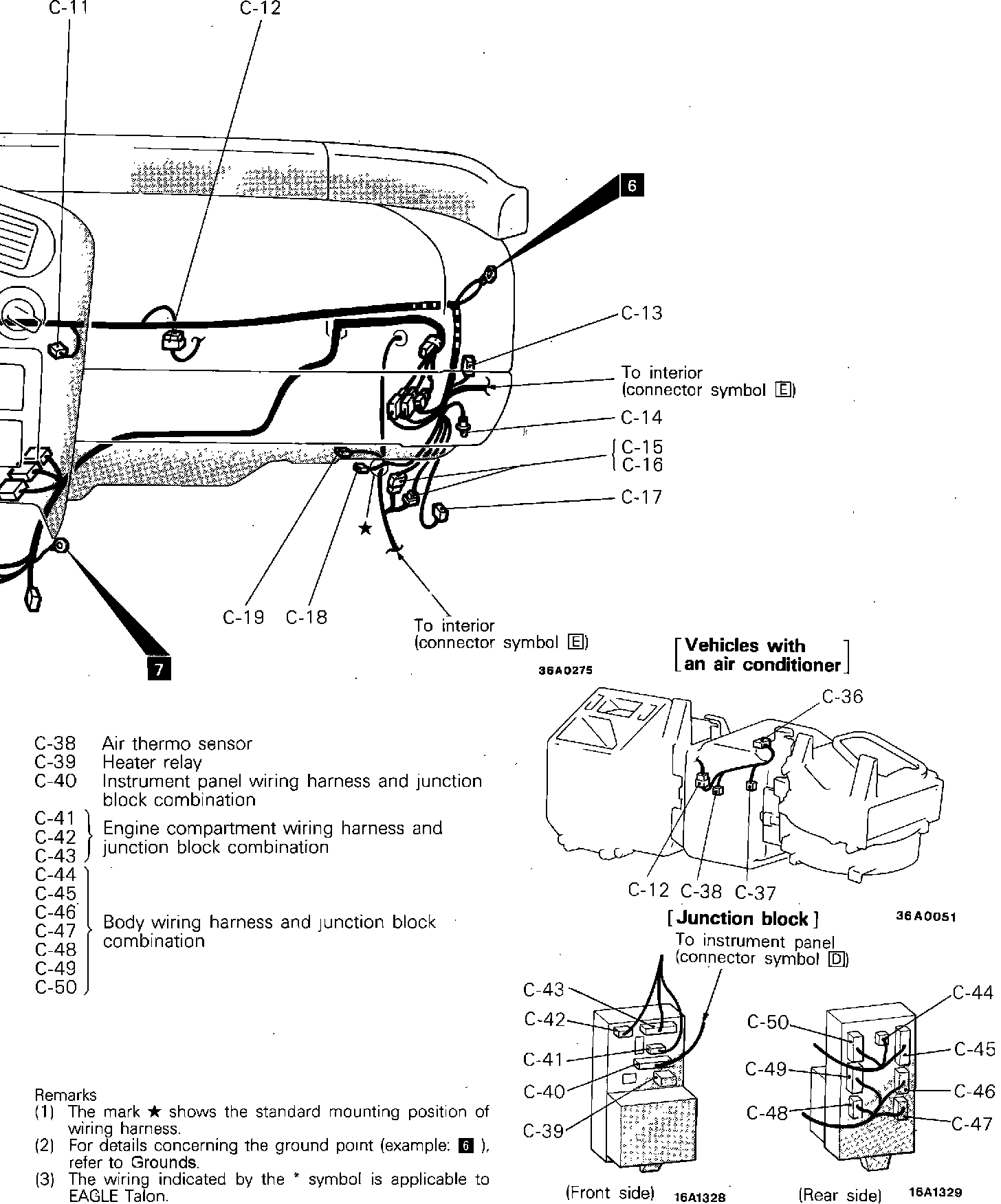

Connector Locations (Dash Panel):

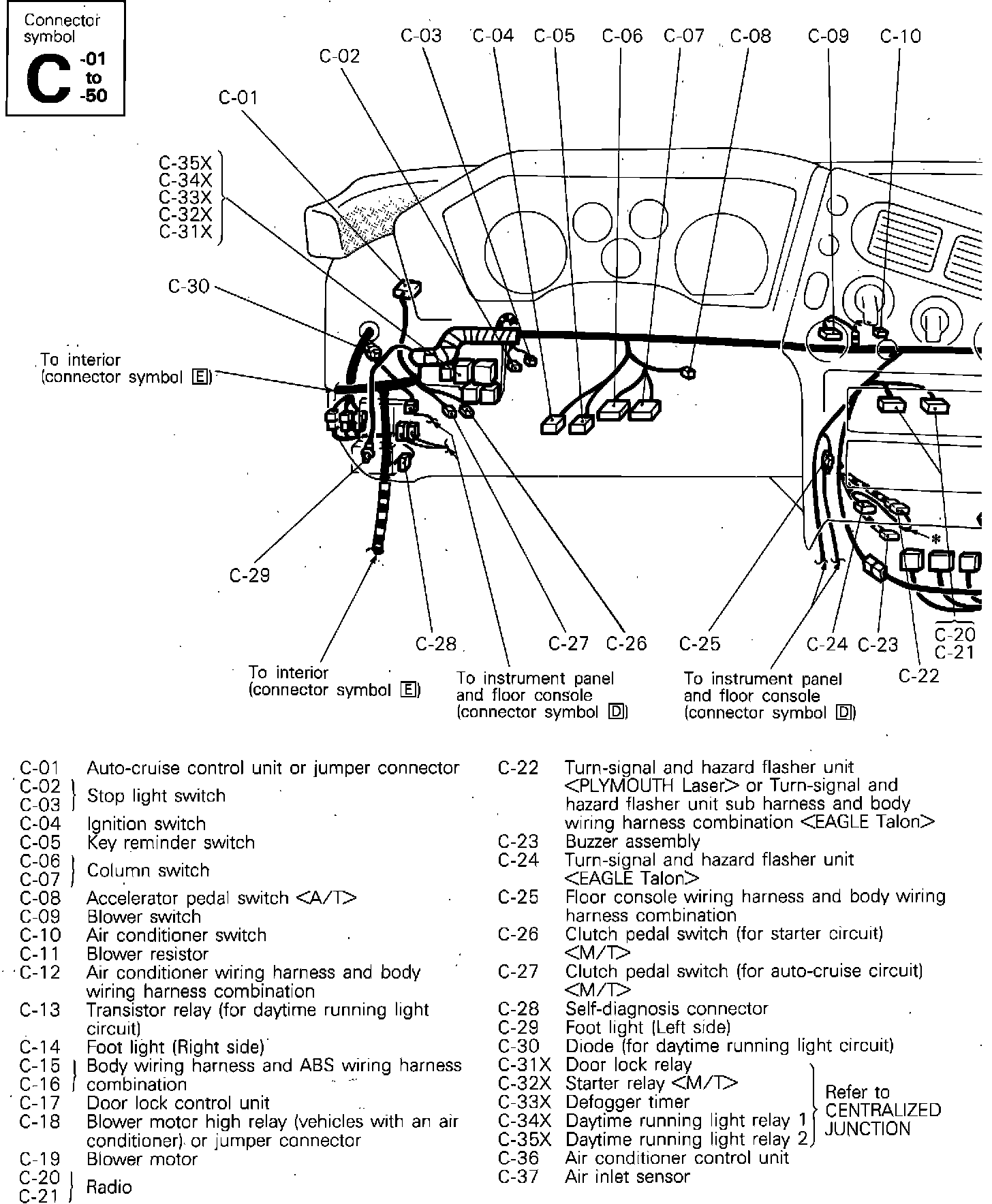

Connector Locations (Dash Panel):
