Relay Box

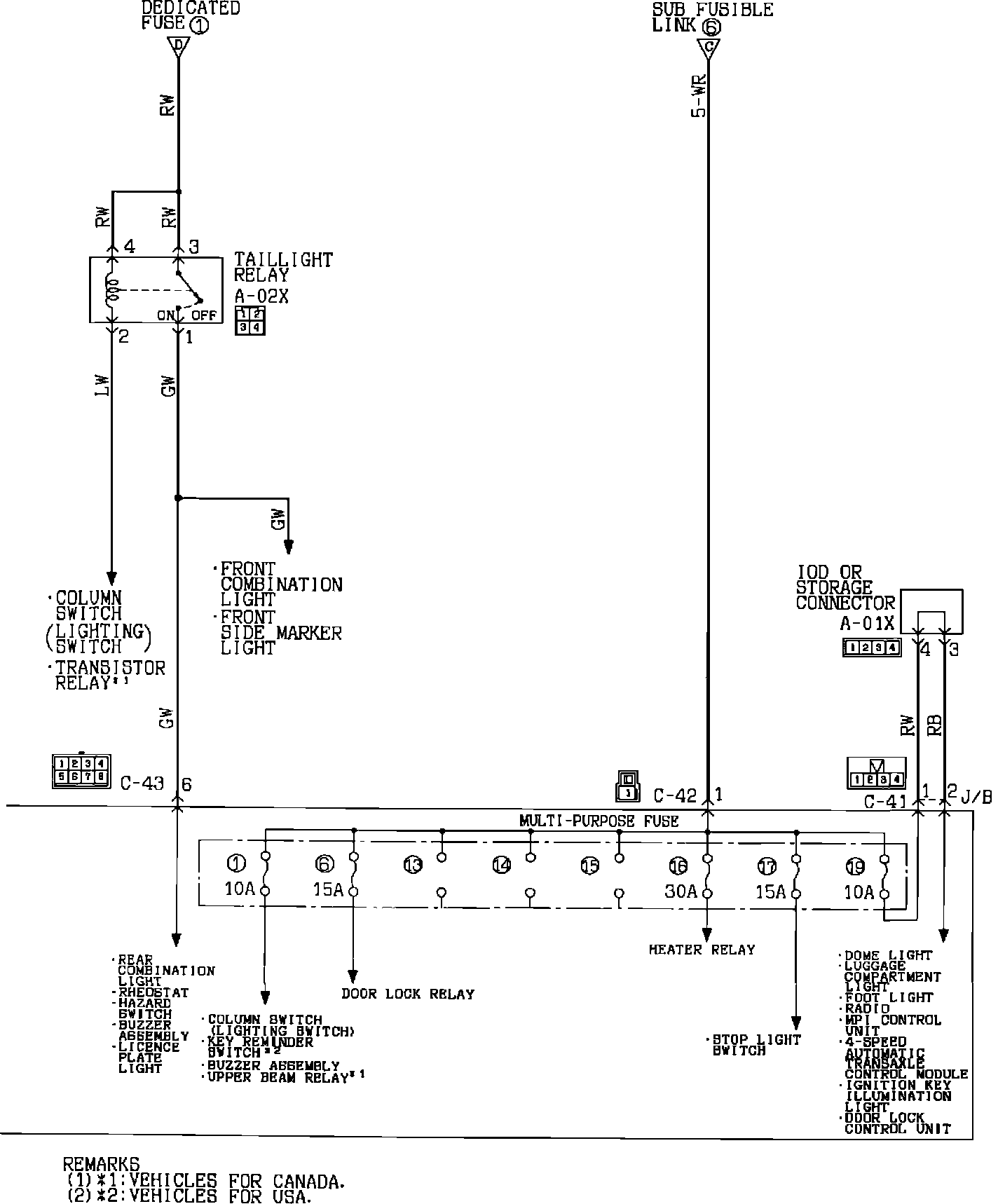

Power Distribution Circuit Diagram:

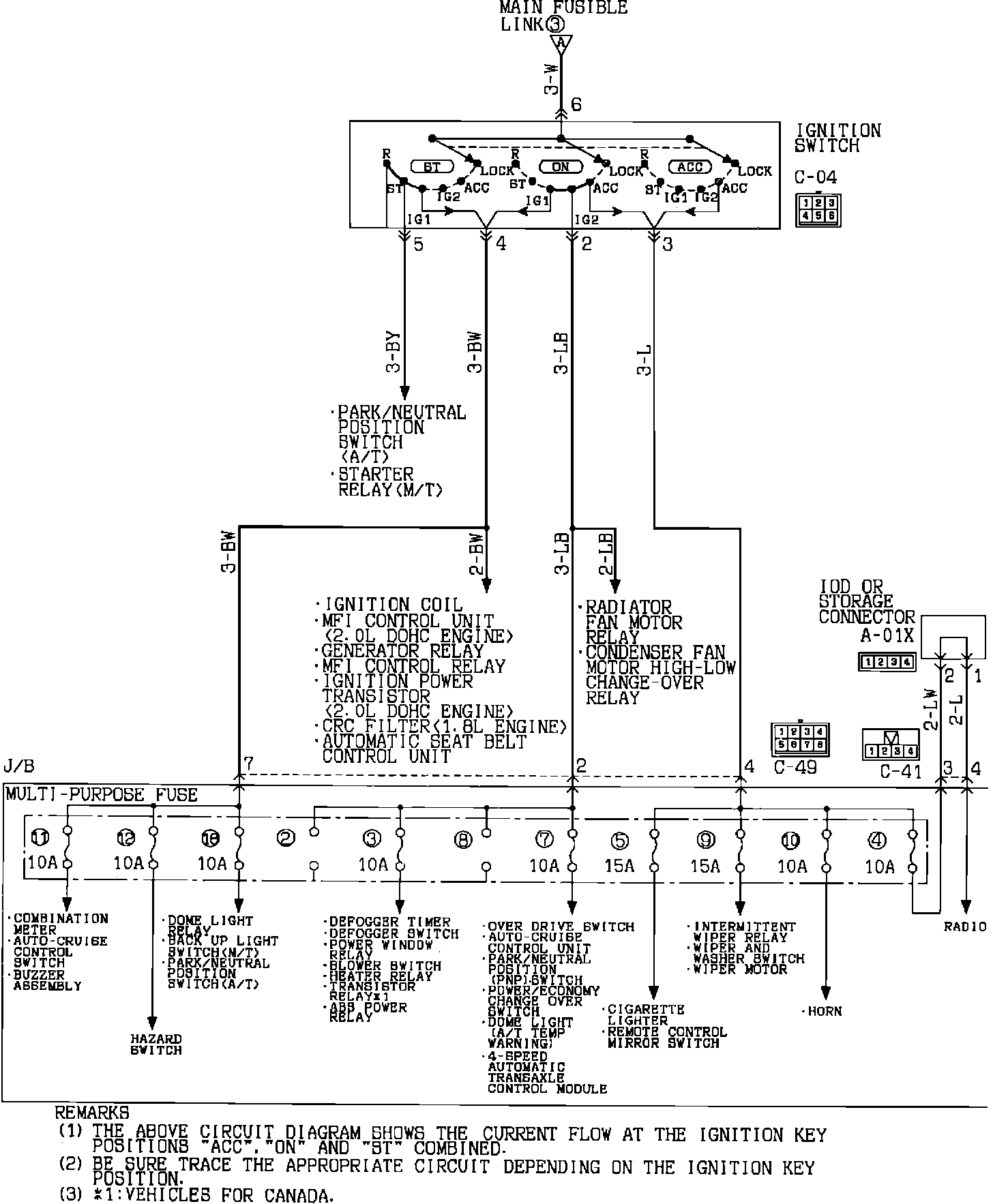

Power Distribution Circuit Diagram:



Power Distribution Circuit Diagram:
