Powertrain Management: Locations

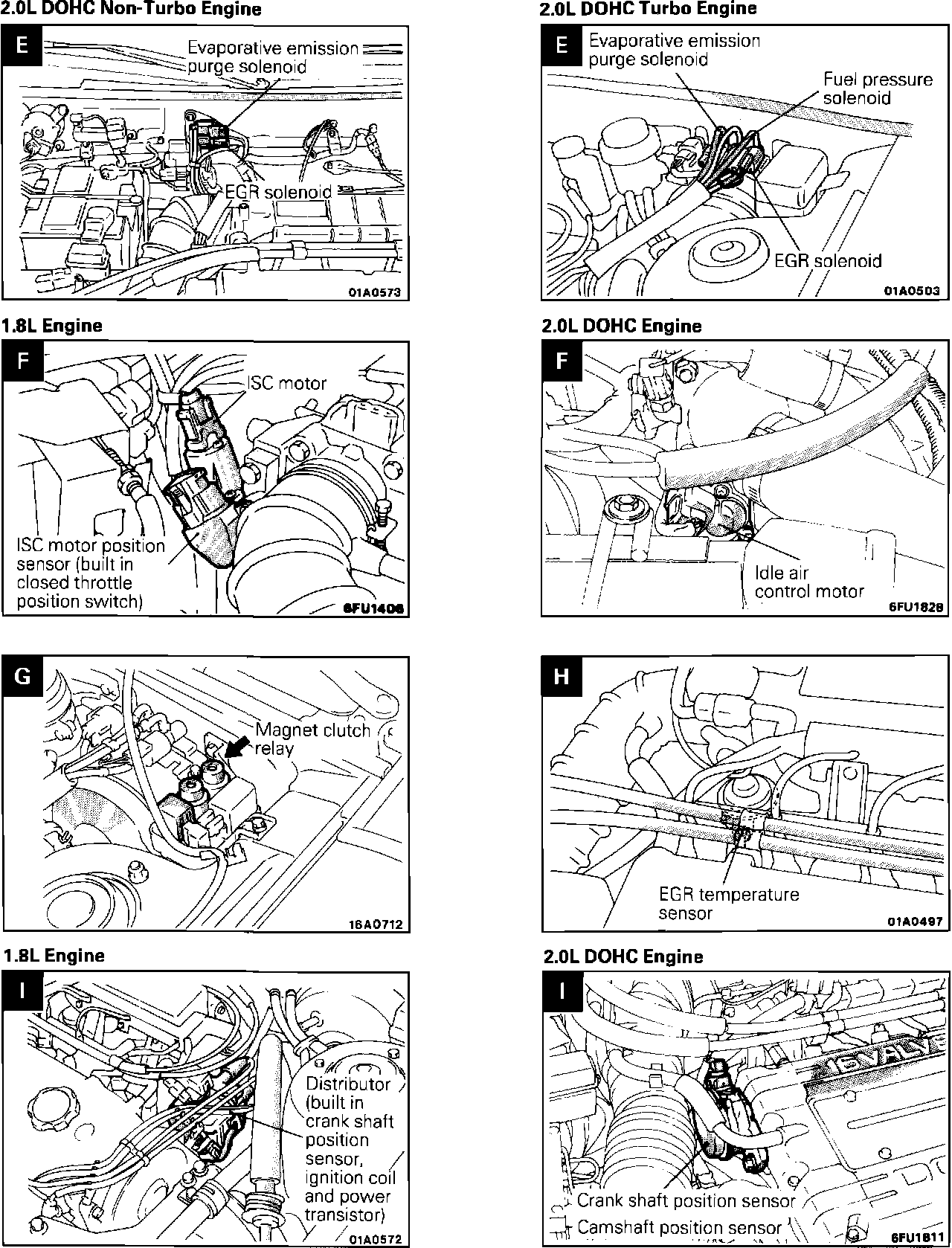

Engine Management Component Locations:

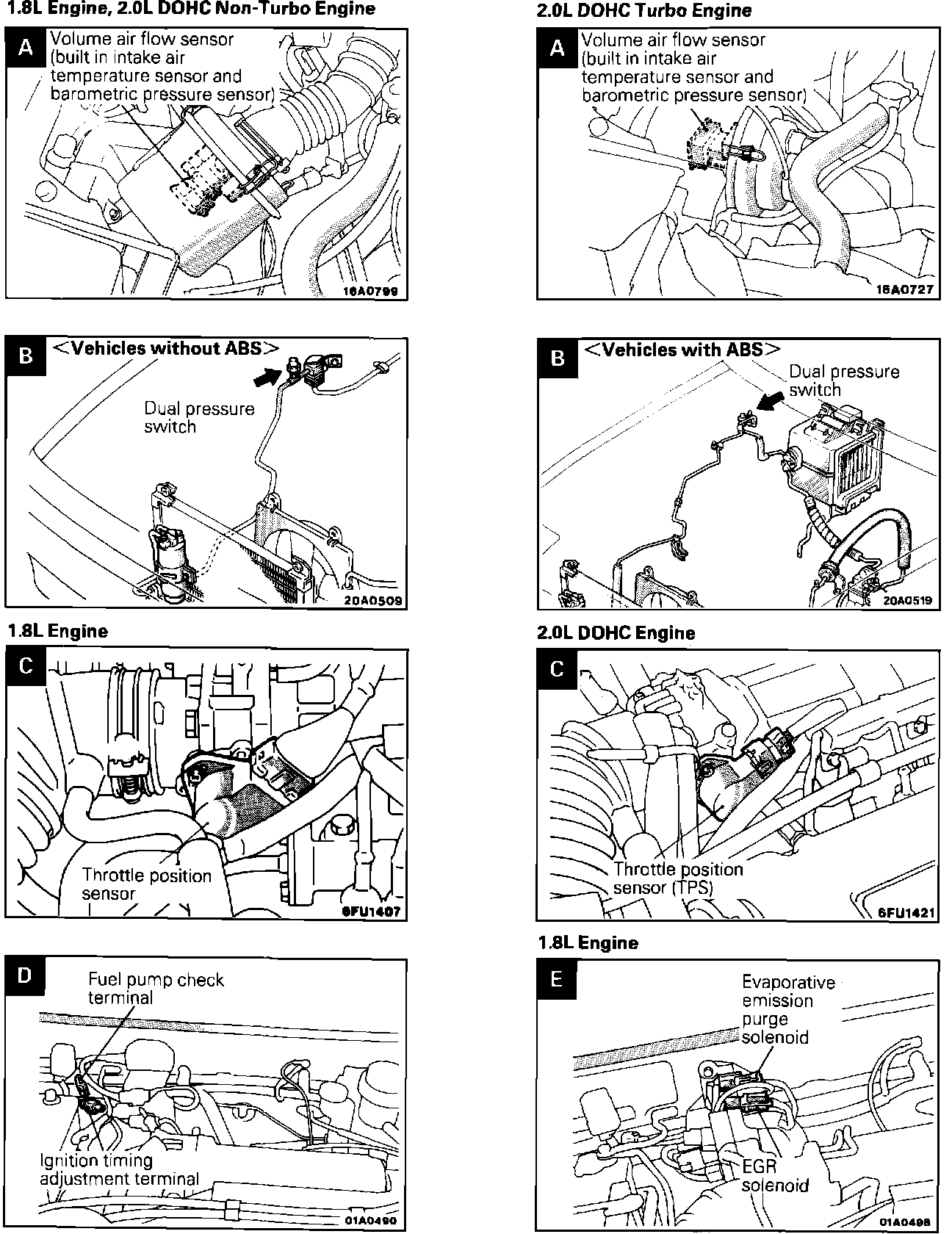

Engine Management Component Locations:

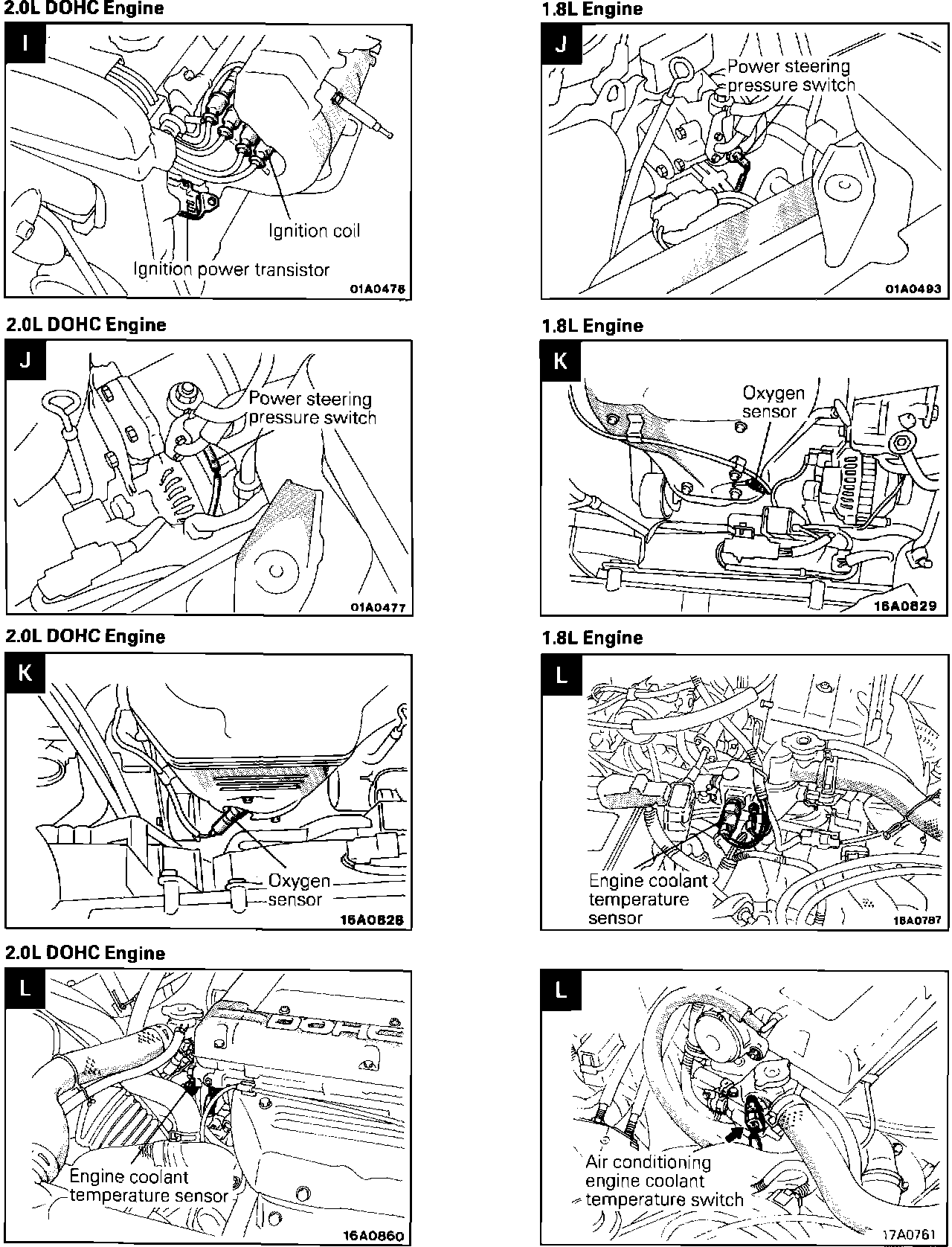

Engine Management Component Locations:

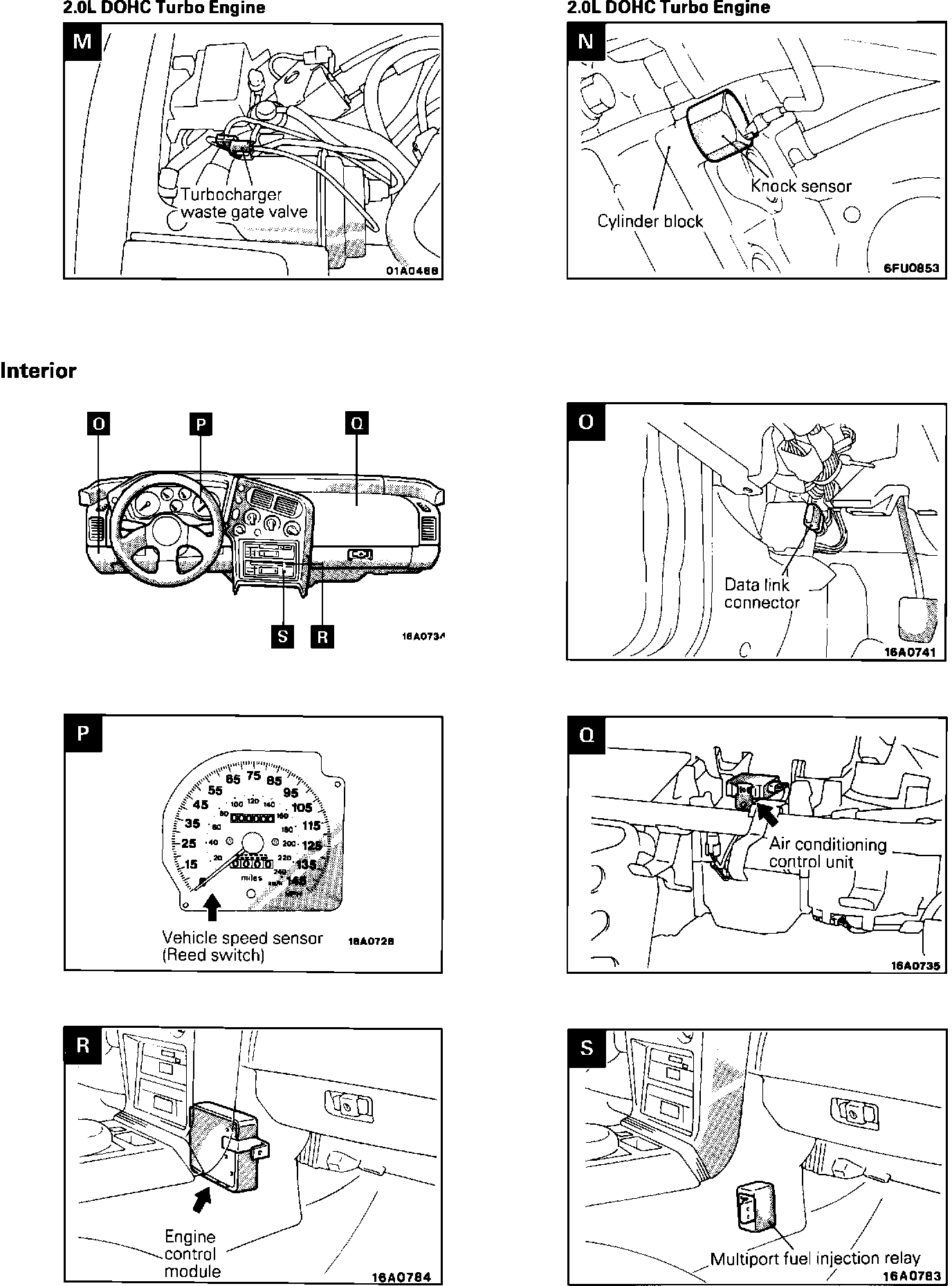

Engine Management Component Locations:

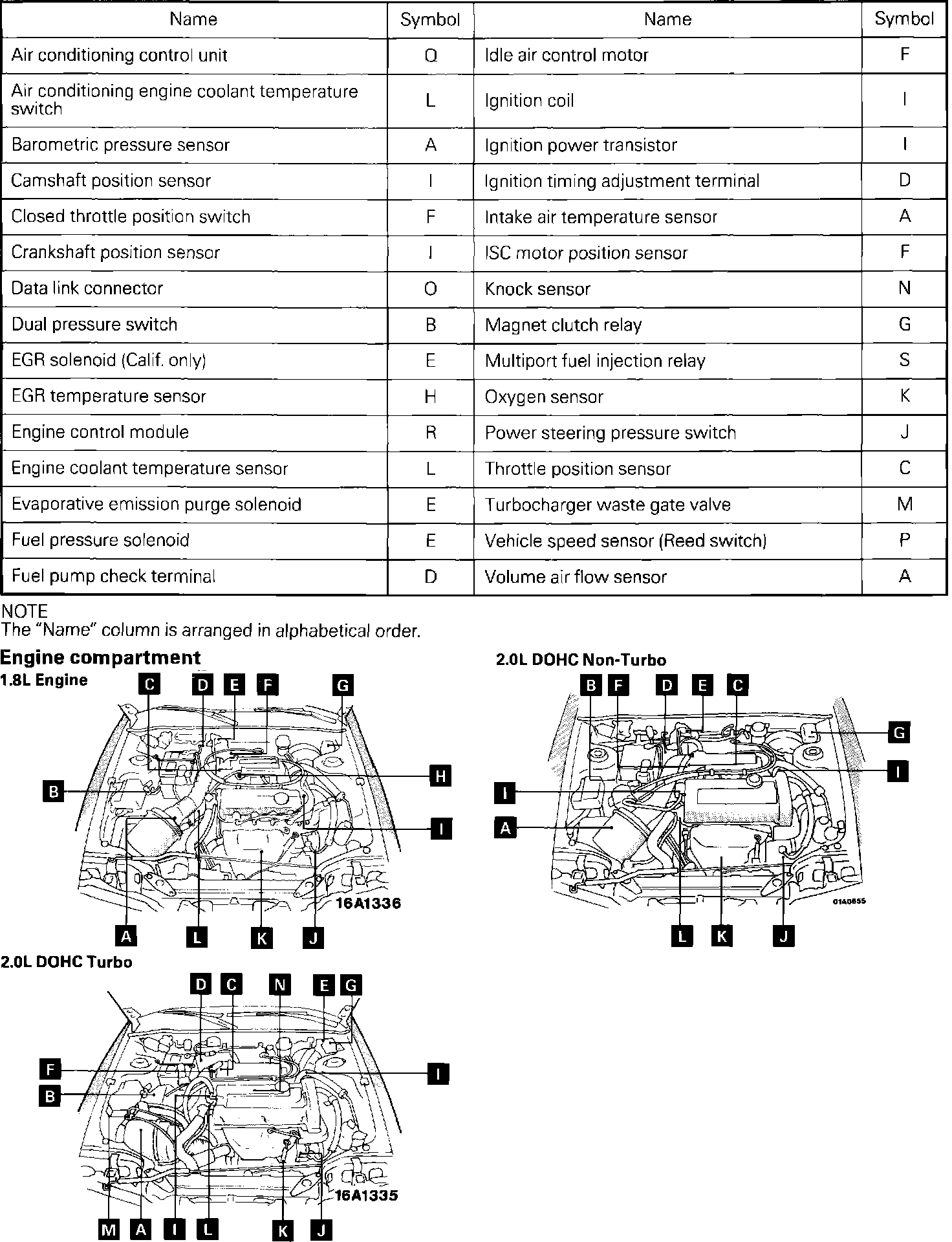

Engine Management Component Locations:
