Eagle
>>
1993
>>
Vision V6-215 3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

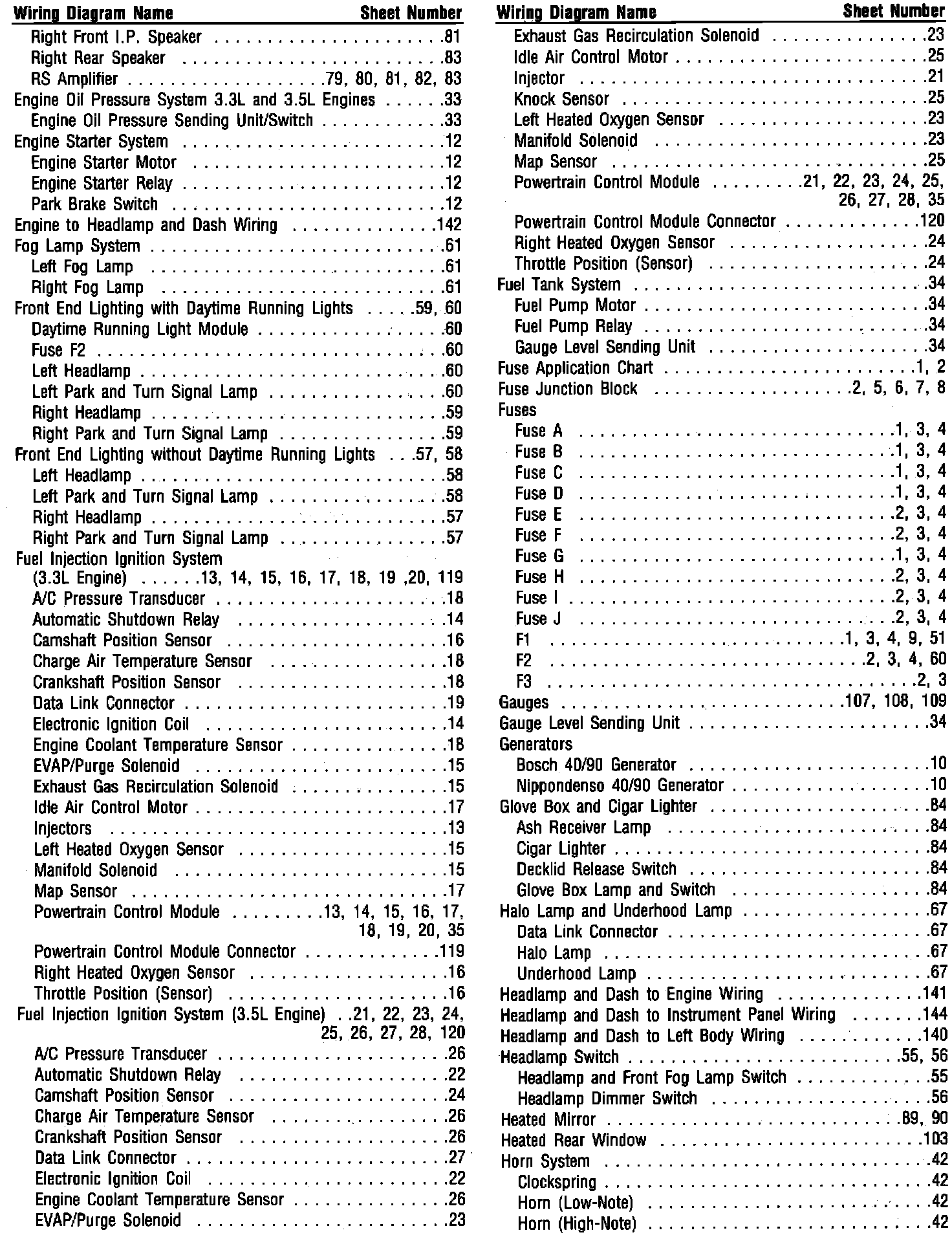

Component to Wiring Diagram Number Index
>>
Electronically Tuned to Horn System
Electronically Tuned to Horn System
