Eagle
>>
1994
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
12
Manufacturer Code Charts: 12

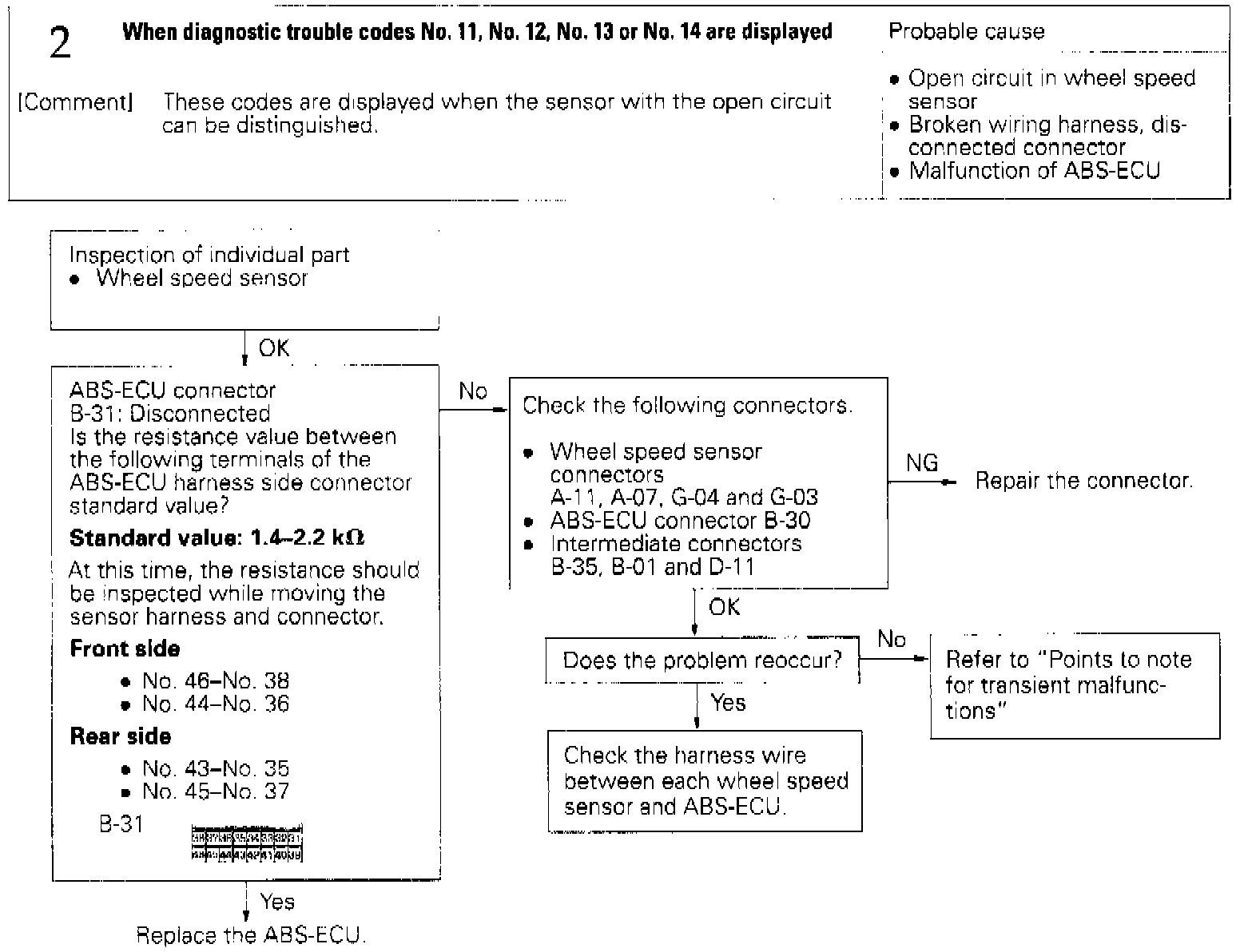

Fig 15 Codes 11, 12 & 14: Open Circuit In Wheel Speed Sensor:
