Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
51
Manufacturer Code Charts: 51

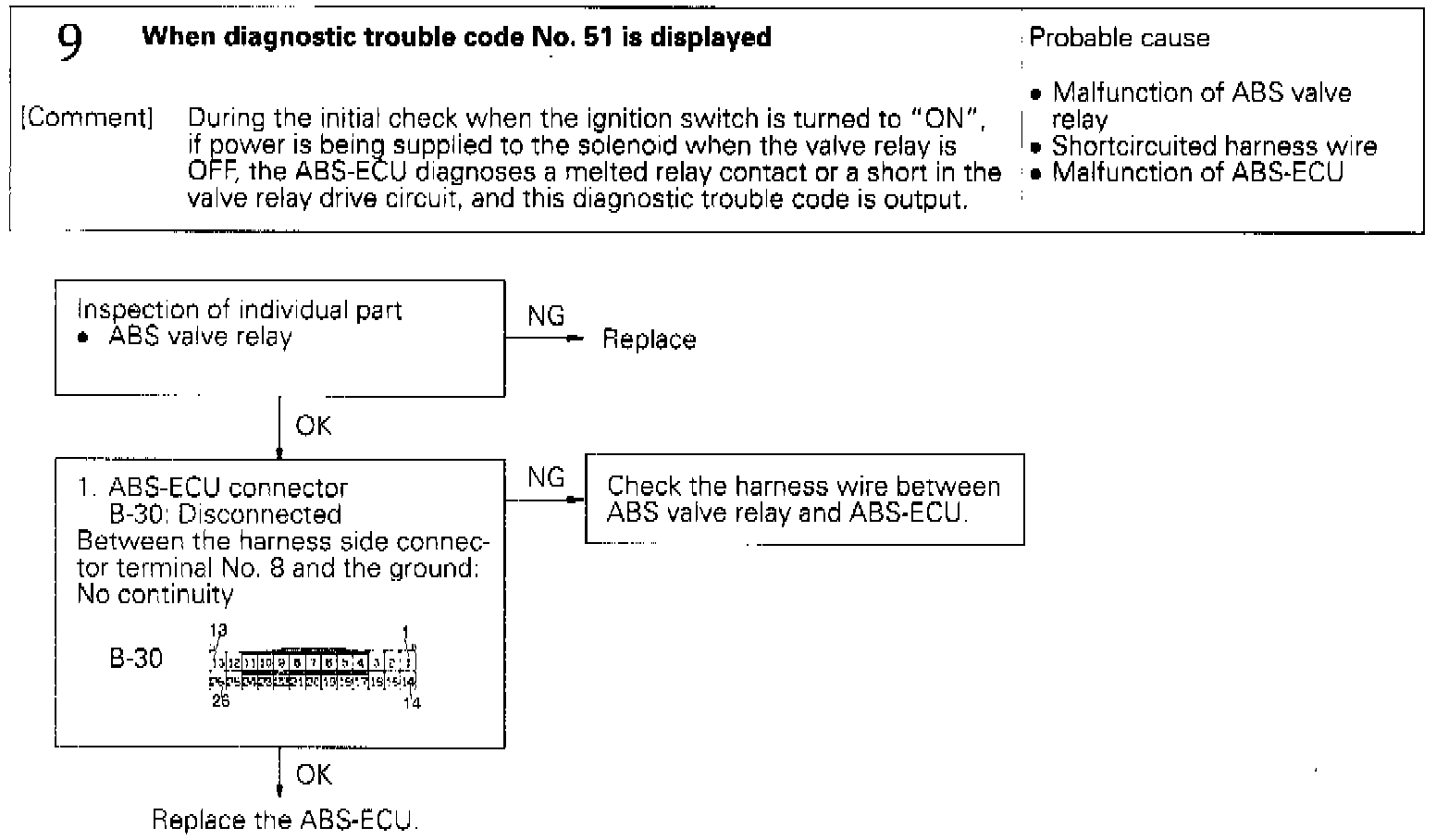

Fig 23 Code 51: Valve Relay "On" Problem:
