Automatic Transmission/Transaxle

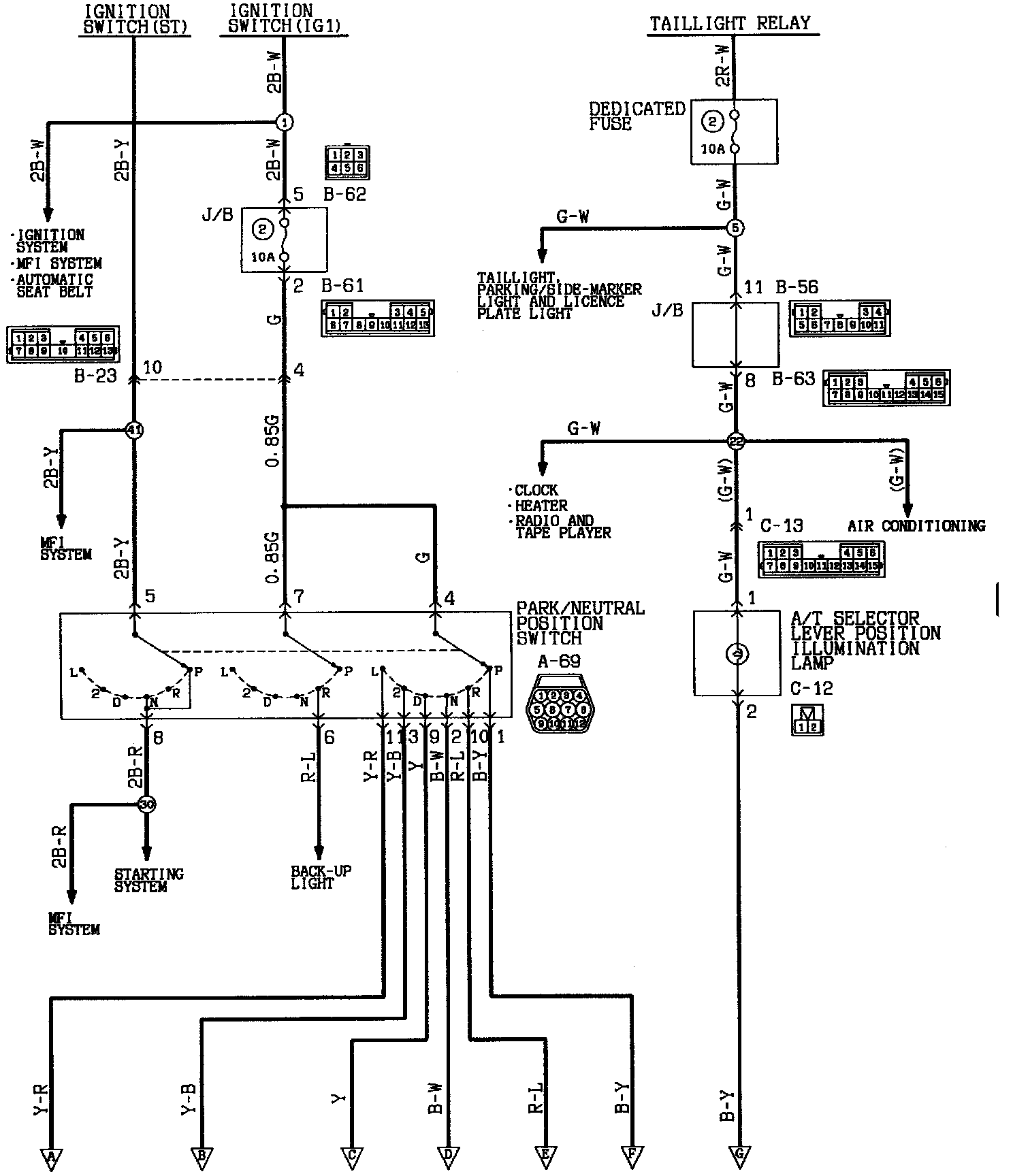

3 A/T Circuit (Part 1 Of 2):

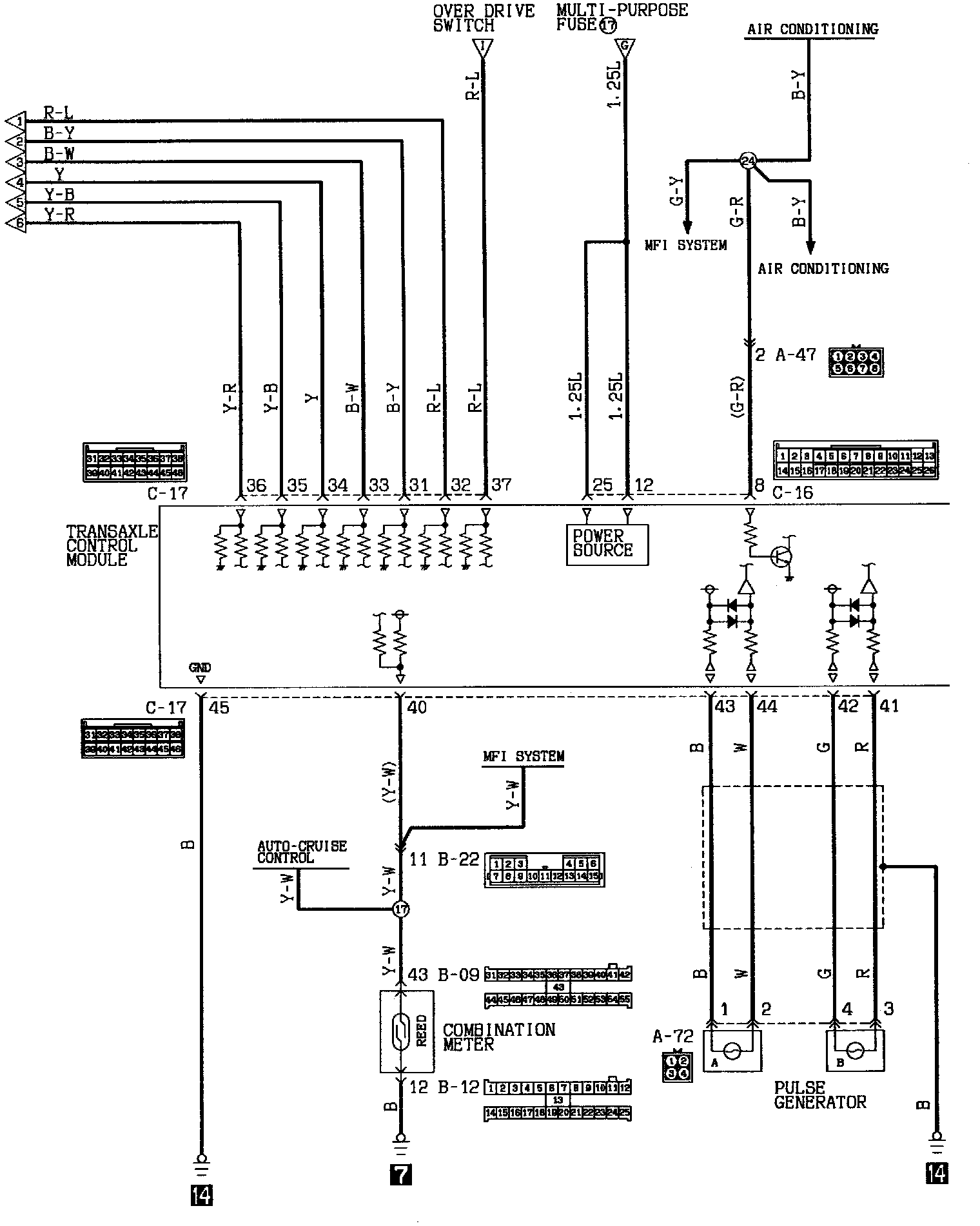

3 A/T Circuit (Part 2 Of 2):

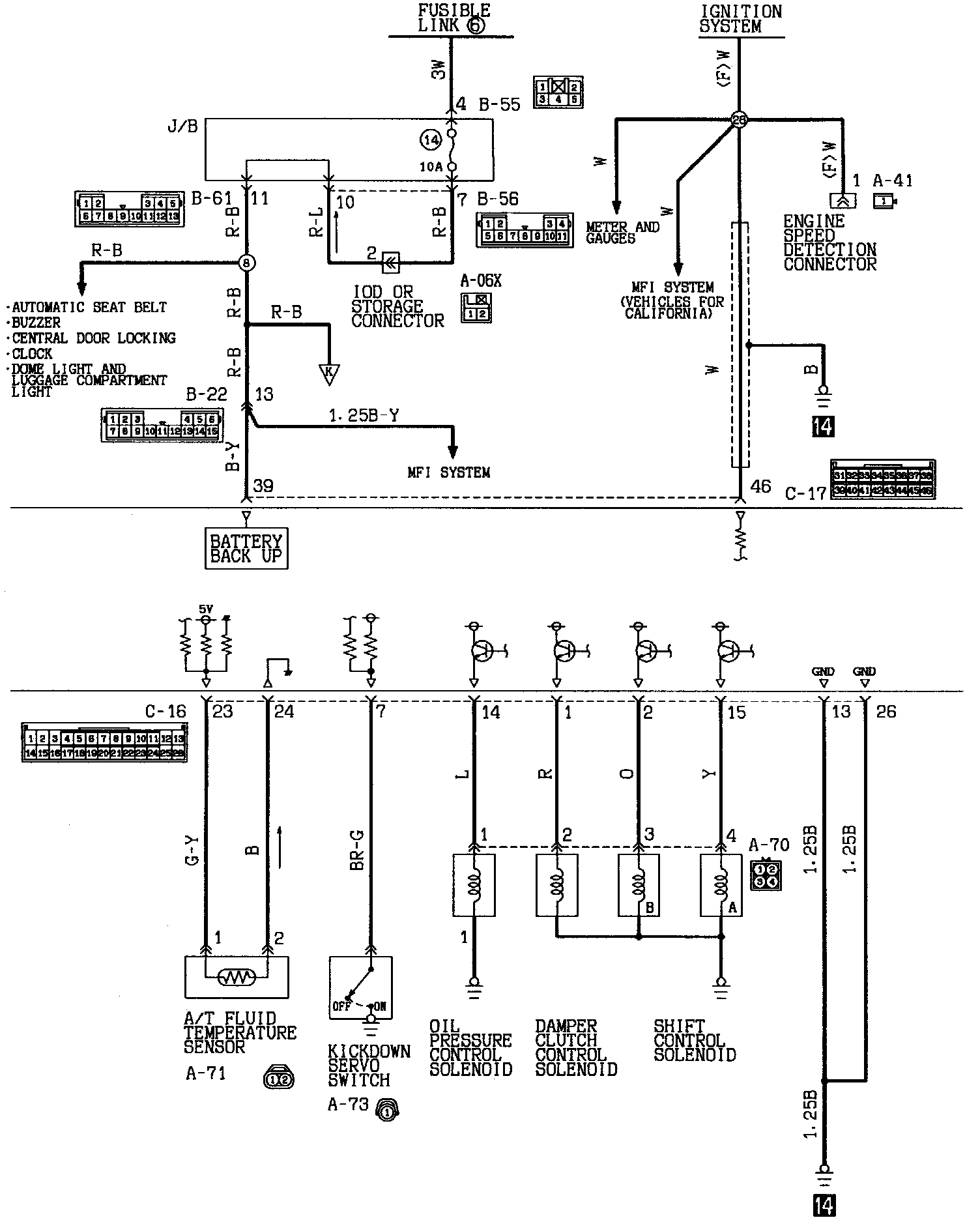

4 A/T Circuit (Part 1 Of 6):

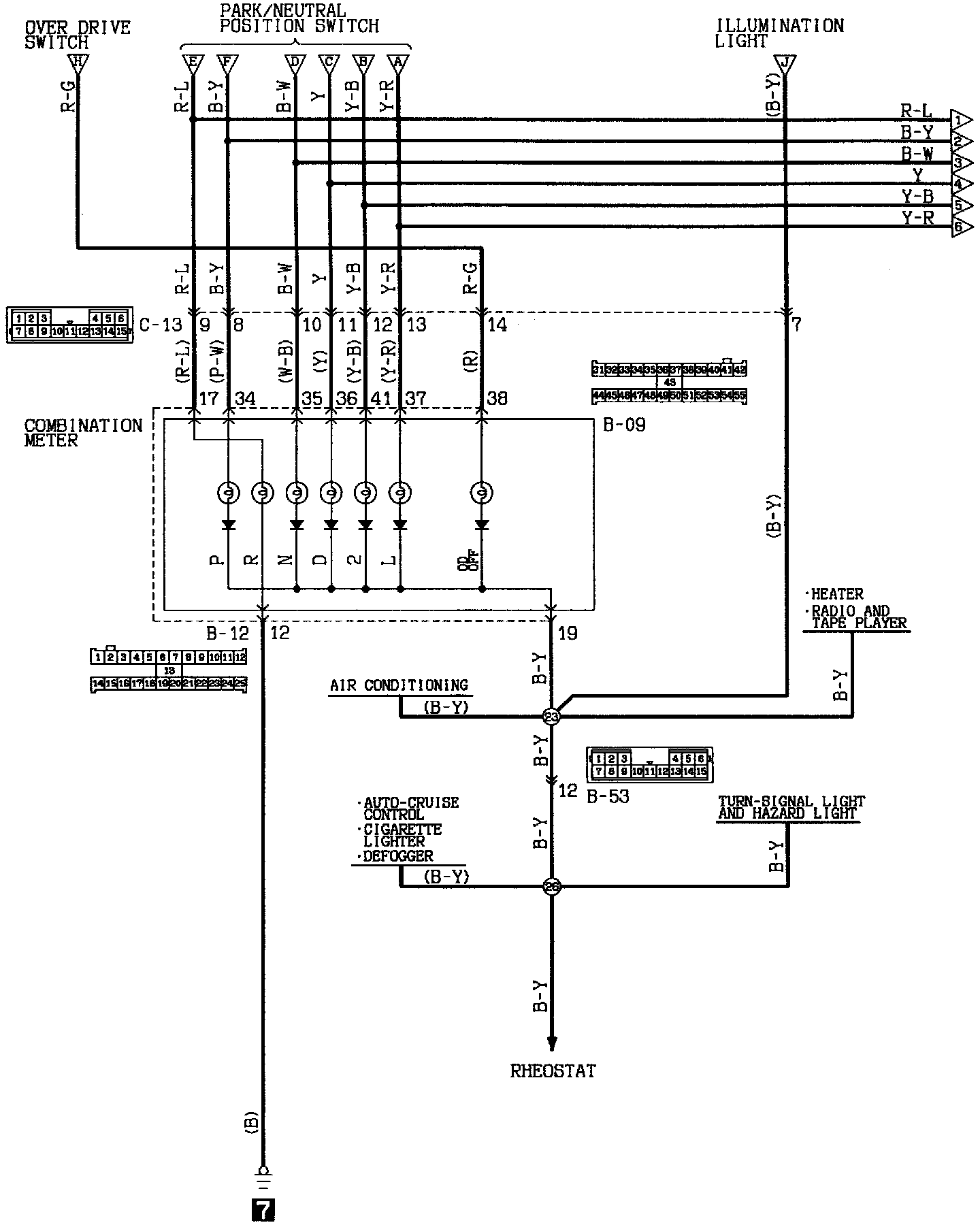

4 A/T Circuit (Part 2 Of 6):

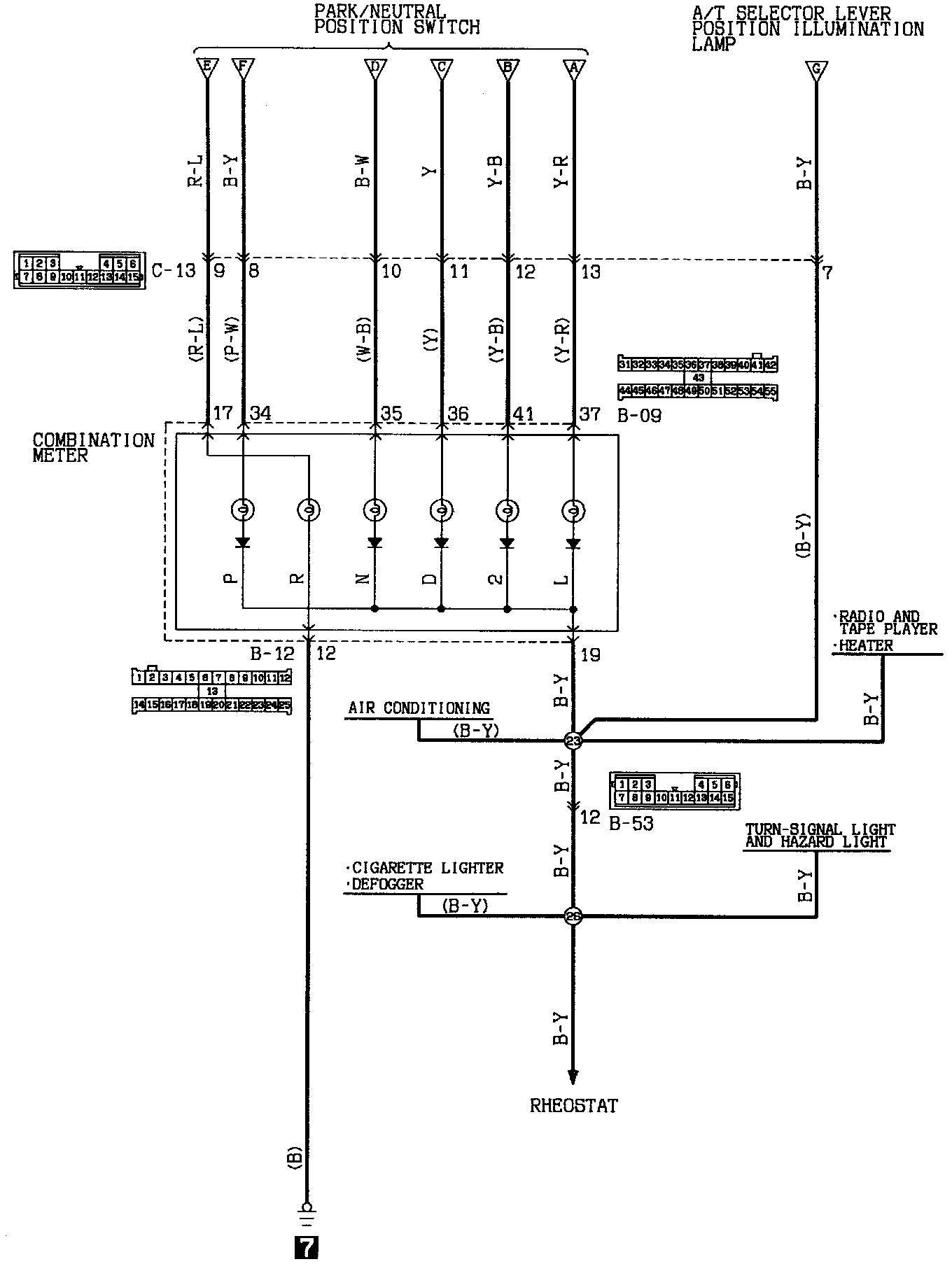

4 A/T Circuit (Part 3 Of 6):

4 A/T Circuit (Part 4 Of 6):

4 A/T Circuit (Part 5 Of 6):

4 A/T Circuit (Part 6 Of 6):
