Turn Signals
Turn Signals

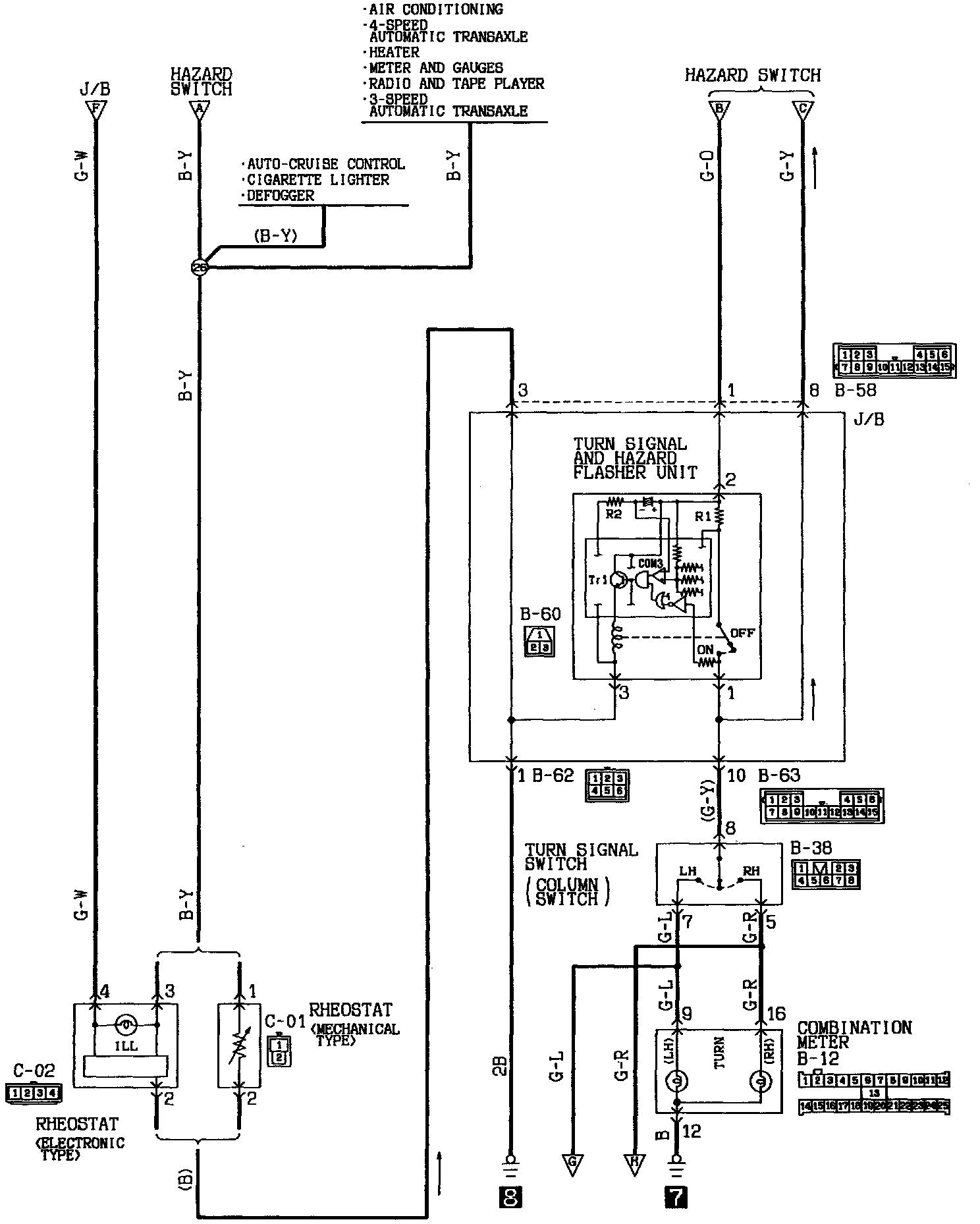

Turn-Signal Light And Hazard Light Circuit (Part 1 Of 3):
Turn-Signal Light And Hazard Light Circuit (Part 2 Of 3):
Turn-Signal Light And Hazard Light Circuit (Part 3 Of 3):
