B Connectors - Dash Panel Harness

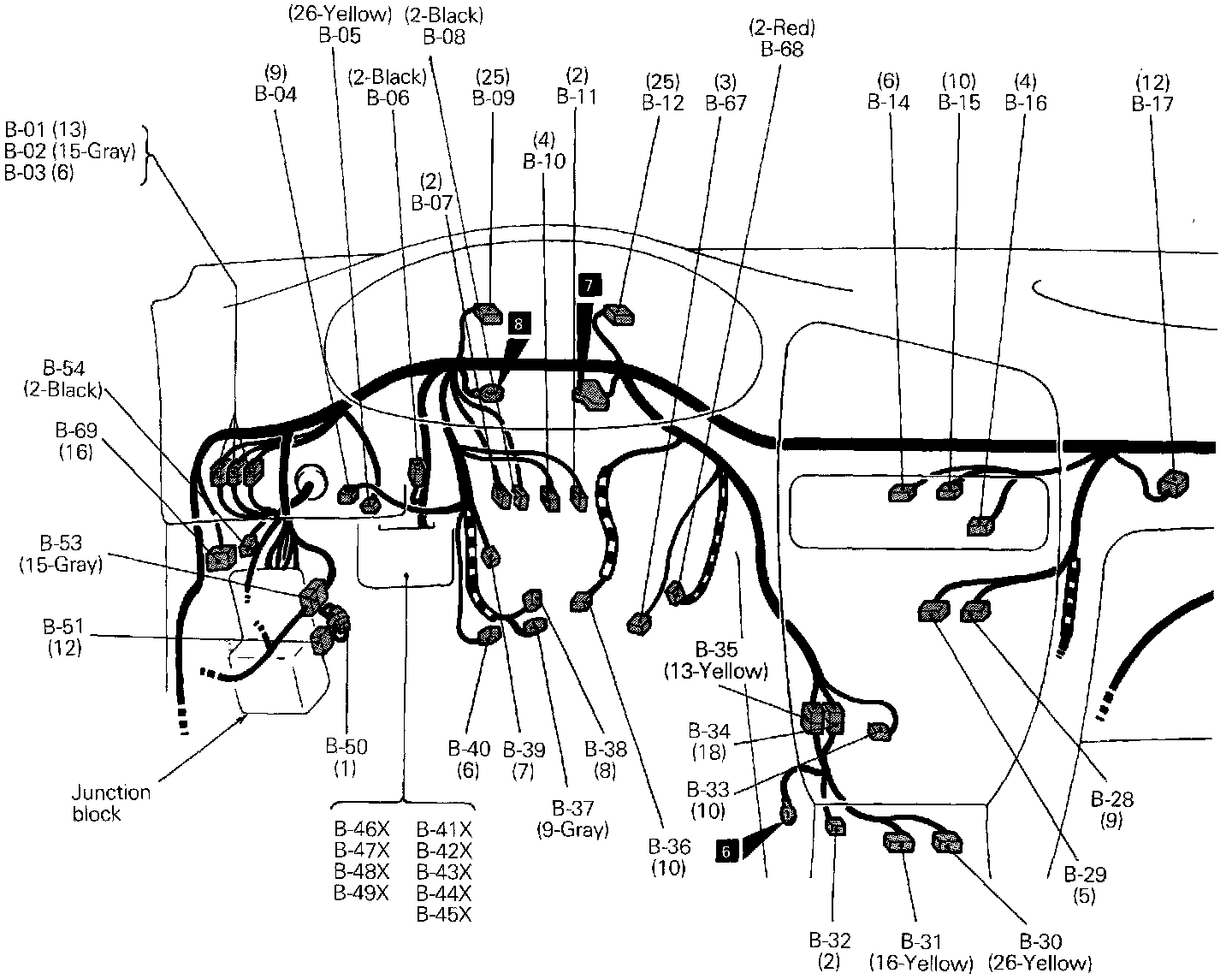

Connector [B-01] - [B-69] (Part 1 Of 2):

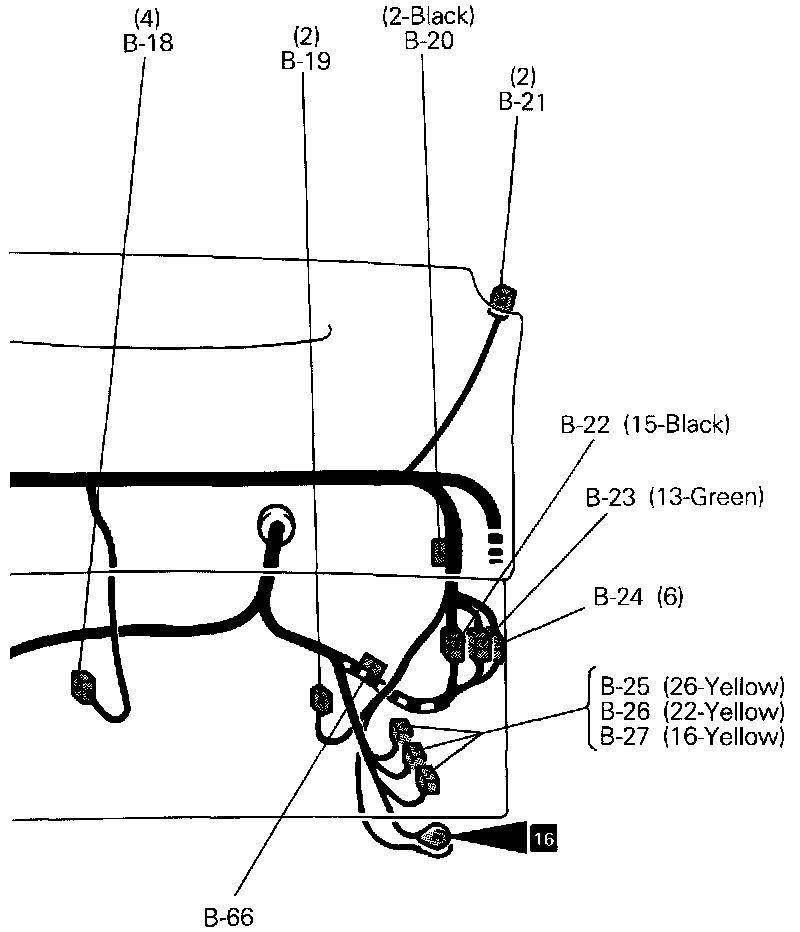

Connector [B-01] - [B-69] (Part 2 Of 2):

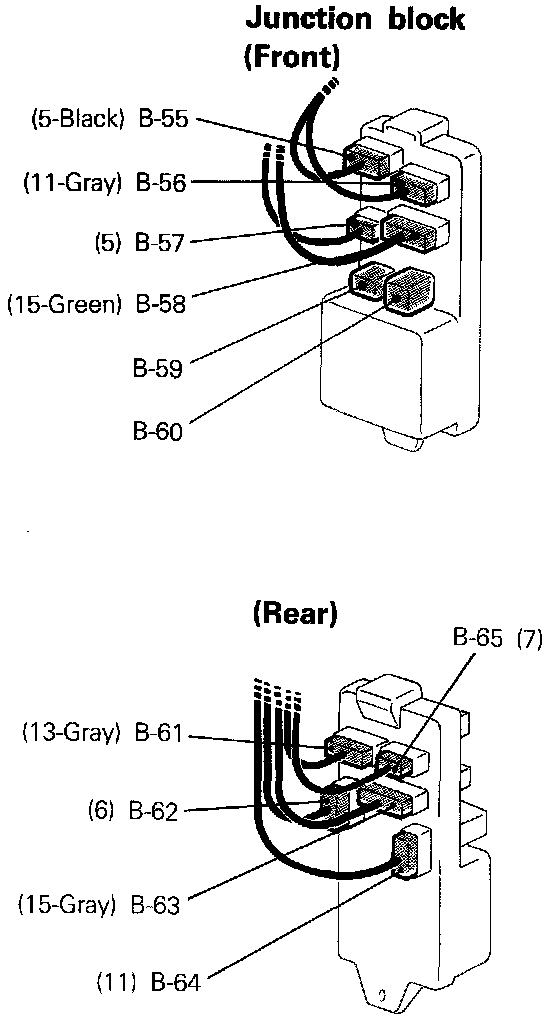

Junction Block:

B-01 Thru B-03 Body wiring harness and front wiring harness combination
B-04 Remote controlled mirror switch
B-05 Auto-cruise control unit
B-06 Diode (for ABS circuit)
B-07 Clutch pedal position switch
B-08 Clutch pedal position switch
B-09 Combination meter
B-10 Stop light switch
B-11 Stop light switch
B-12 Combination meter
B-13 -
B-14 A/C switch
B-15 Blower switch
B-16 Clock
B-17 Automatic compressor control unit
B-18 Resistor
B-19 Blower motor
B-20 Diode (for MFI system circuit)
B-21 Release switch (RH)
B-22 Thru B-24 Body wiring harness and control wiring harness combination
B-25 Engine control module
B-26 Engine control module
B-27 Engine control module
B-28 Radio and tape player
B-29 Radio and tape player
B-30 ABS control unit
B-31 ABS control unit
B-32 Diagnostic trouble code erasure connector
B-33 Buzzer assembly
B-34 Body wiring harness and ABS wiring harness combination
B-35 Body wiring harness and ABS wiring harness combination
B-36 Column switch
B-37 Column switch
B-38 Column switch
B-39 Steering lock switch
B-40 Ignition switch
B-41X thru B-49X Refer to CENTRALIZED JUNCTION
B-41X ABS power relay
B-42X Power window relay
B-43X Horn relay
B-44X Door lock control unit
B-45X Jumper connector
B-46X -
B-47X Defogger relay
B-48X Starter relay
B-49X -
B-50 Automatic seat belt motor connector (used to cut off the motor power supply for servicing)
B-51 Data link connector
B-52 -
B-53 Body wiring harness and instrument panel wiring harness combination
B-54 Diode (for ABS circuit)
B-55 Front wiring harness and junction block combination
B-56 Front wiring harness and junction block combination
B-57 Roof wiring harness and junction block combination
B-58 Instrument panel wiring harness and junction block combination
B-59 Blower motor relay
B-60 Turn-signal and hazard flasher unit
B-61 Thru B-65 Body wiring harness and junction block combination
B-66 Diode (for MFI system circuit)
B-67 Clock spring
B-68 Clock spring
B-69 Data link connector

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
