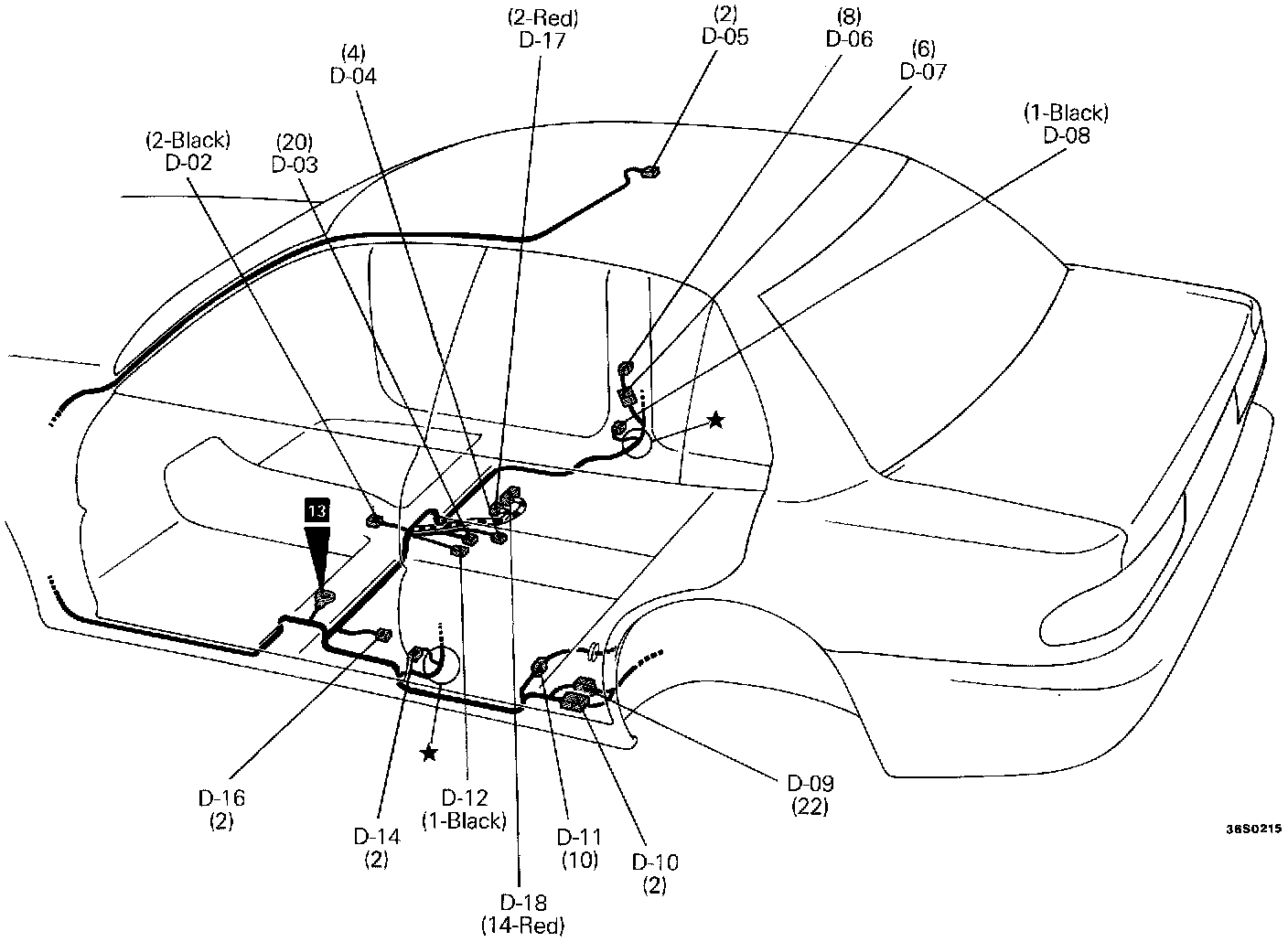

D Connectors - Interior Harness

Connector [D]:

D-01 -
D-02 No connection
D-03 Automatic seat belt control unit
D-04 Outer switch
D-05 Dome light
D-06 Automatic seat belt motor assembly (RH)
D-07 Automatic seat belt motor relay (RH)
D-08 Front door switch (RH)
D-09 Body wiring harness and rear wiring harness combination
D-10 Body wiring harness and rear wiring harness combination
D-11 Body wiring harness and fuel pump wiring harness combination
D-12 Parking brake switch
D-13 -
D-14 Front door switch (LH)
D-15 -
D-16 Seat belt buckle switch
D-17 SRS diagnosis unit
D-18 SRS diagnosis unit

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
