F Connectors - Luggage Compartment Harness

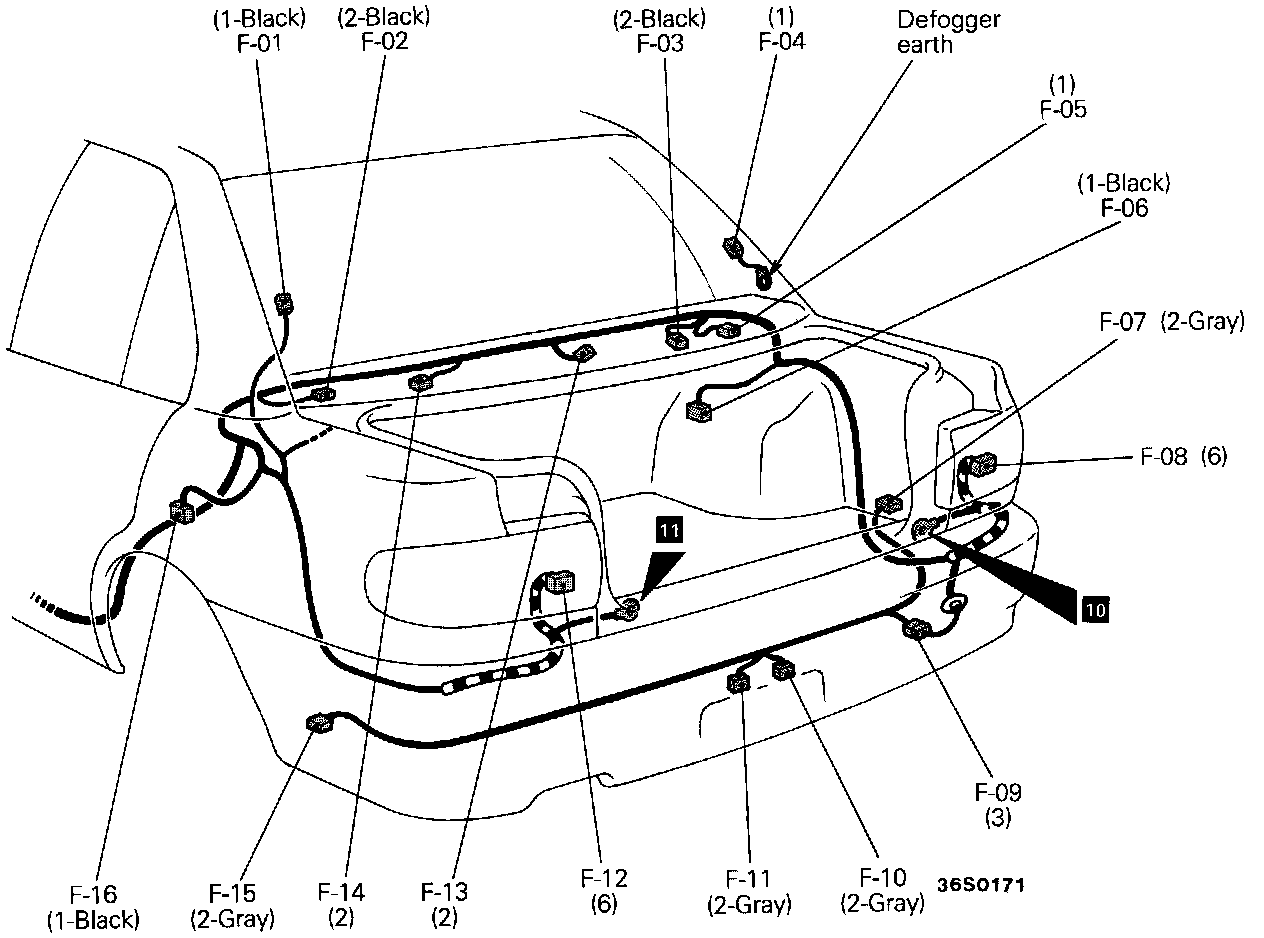

Connector [F] - Luggage Compartment (Part 1 Of 2):

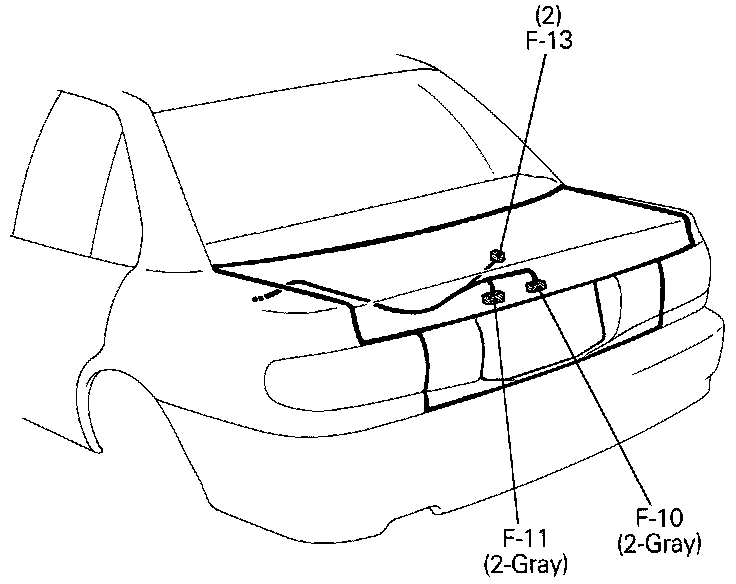

Connector [F] - Luggage Compartment (Part 2 Of 2):

F-01 Defogger (+)
F-02 Rear speaker (LH)
F-03 Rear speaker (RH)
F-04 Defogger (-)
F-05 Luggage compartment light switch
F-06 Rear door switch (RH)
F-07 Rear side-marker light (RH)
F-08 Rear combination light (RH)
F-09 Rear wiring harness and rear bumper wiring harness combination
F-10 License plate light (RH)
F-11 License plate light (LH)
F-12 Rear combination light (LH)
F-13 High-mounted stoplight
F-14 Luggage compartment light
F-15 Rear side-marker light (LH)
F-16 Rear door switch (LH)
