Clock: Service and Repair

Clock Removal: Step (1):

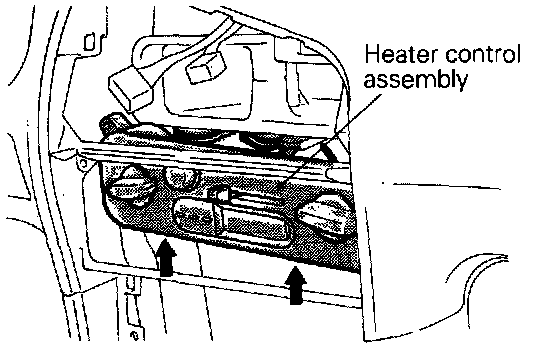

1. Remove the heater control assembly mounting screws.

Clock Removal: Step (2):

2. Remove the heater control assembly boss from center reinforcement (L.H.).

Clock Removal: Step (3):

3. Push the heater control assembly into the instrument panel, remove the clock mounting screws, and remove the clock.
