Center Mounted Brake Lamp: Service and Repair

Clip Removal/Installation

Clip Removal:

REMOVAL

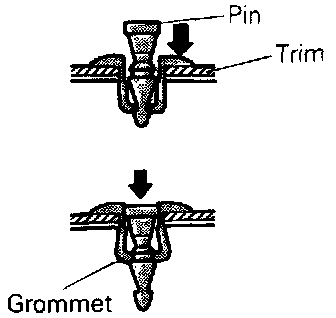

1. Use a cross-tip (+) screwdriver to push inward the pin (at the center of the clip) to a depth of about 2 mm (.08 in.).

2. Pull the clip outward to remove it.
CAUTION:
Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.

Clip Installation:

INSTALLATION
1. With the pin pulled out, insert the clip into the hole in the trim.
2. Push the pin inward until the pin's head is flush with the grommet.
3. Check whether the trim is secure.
