Turn Signals: Service and Repair

Front Turn Signal Light Removal & Installation

Front Turn Signal Light Removal:

REMOVAL
Remove the set spring, and pull the front turn signal light forward to remove it.

Front Turn Signal Light Installation:

INSTALLATION

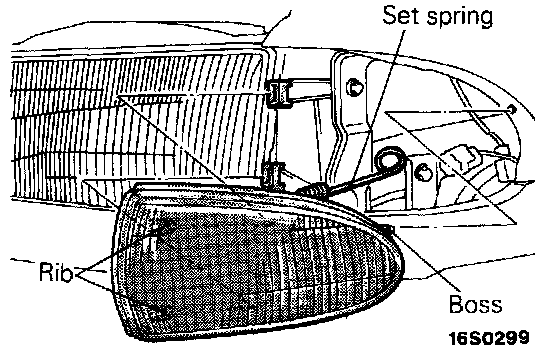

1. After aligning the positioning boss of the front turn signal light with the fender insertion hole, align the ribs with the headlight insertion holes.

2. While pressing in the front turn signal light towards the rear of the vehicle, hook the set spring to the fender shield inner to secure the front turn signal light to the vehicle body.
