Steering/Drivetrain - Power Steering/Hub Service Rev.

NUMBER: 26-08-96I

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1994 Colt/Summit - Publication Number 81-270-4111

DESCRIPTION OF CHANGES

Revisions to the axle hub service procedures.

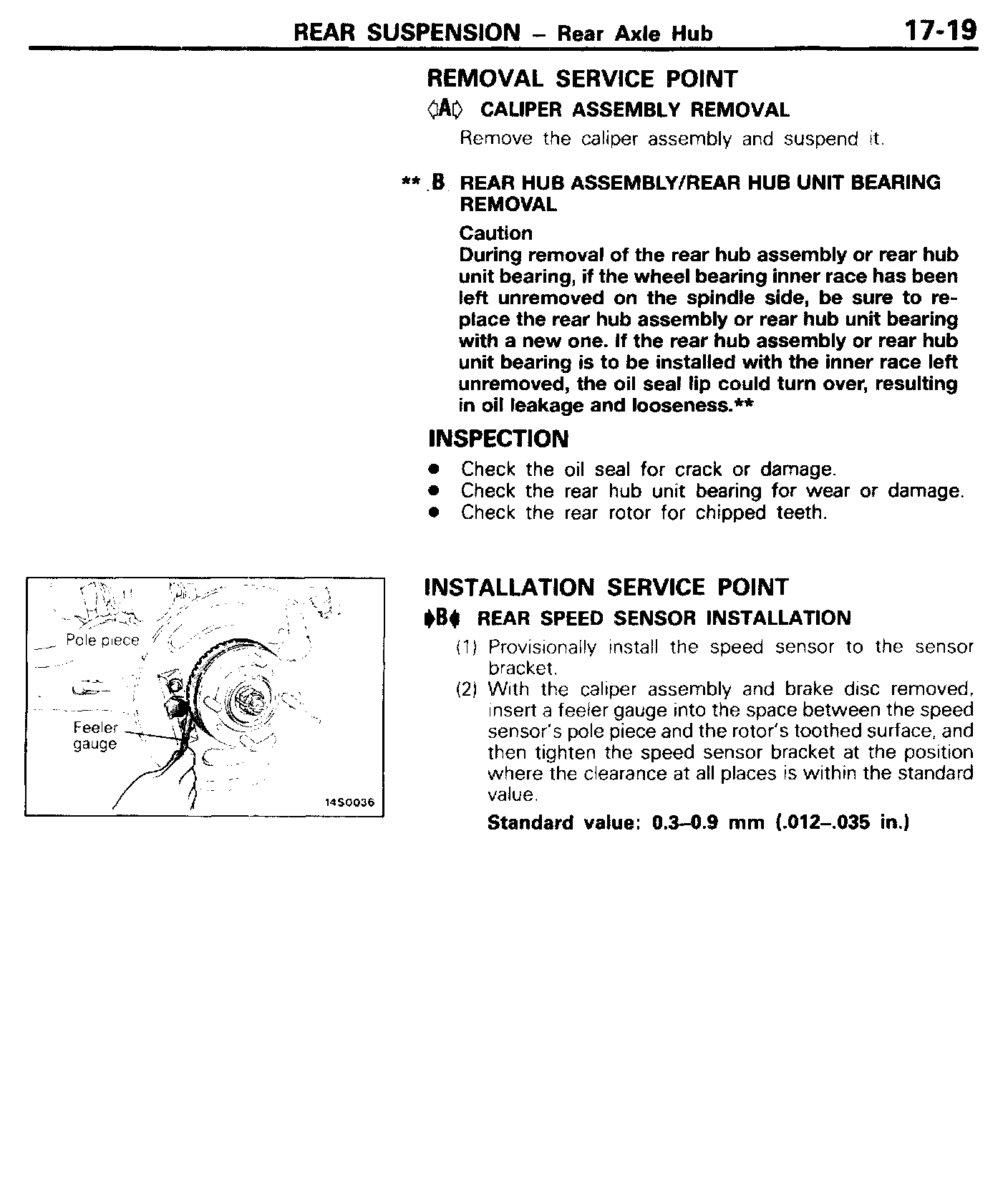

17-19

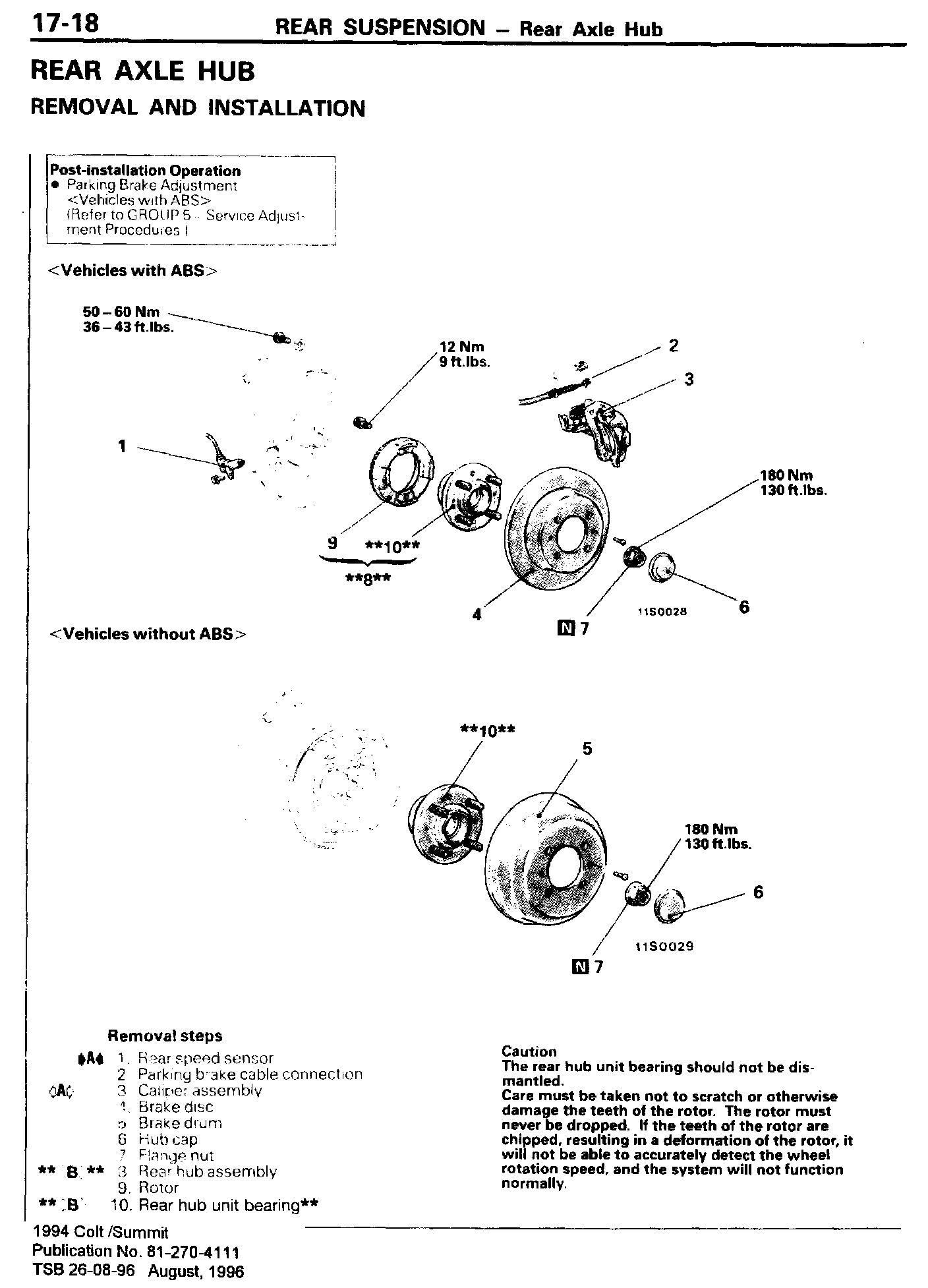

17-18

Revisions to the power steering system graphics.

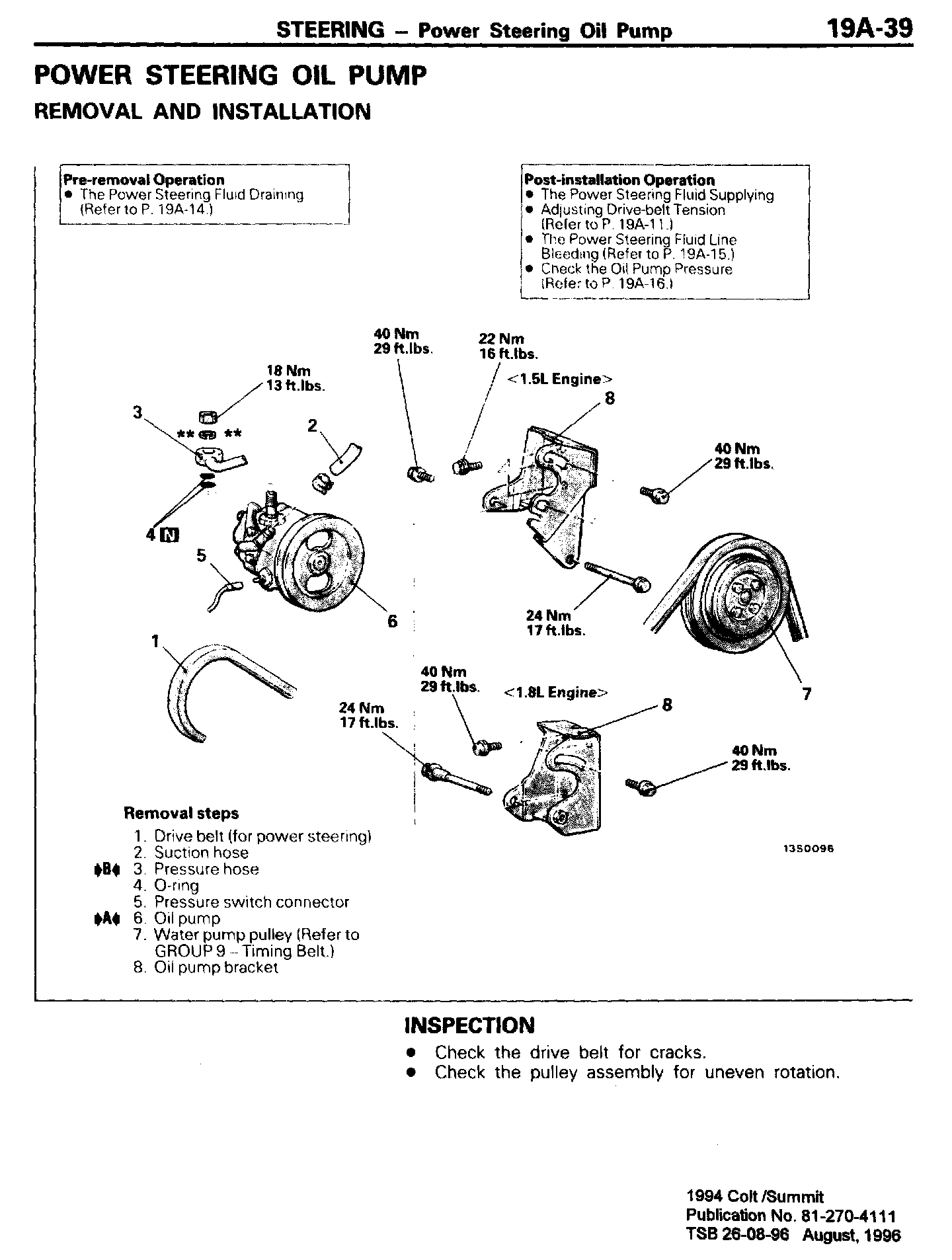

19A-39

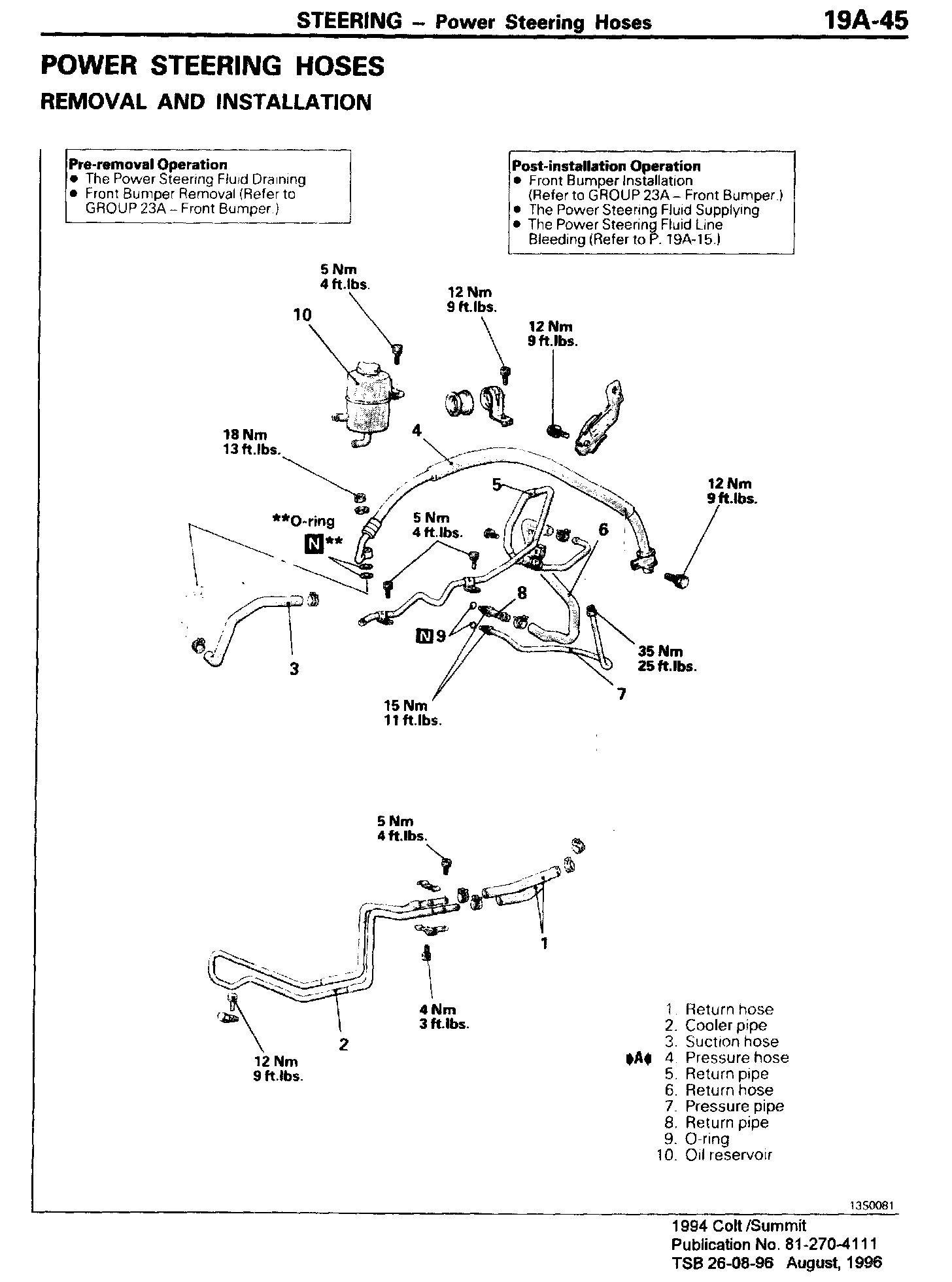

19A-45
