Automatic Transmission/Transaxle: Description and Operation
The
F3A21
is fully automatic three speed transaxle with a lock-up
torque
converter

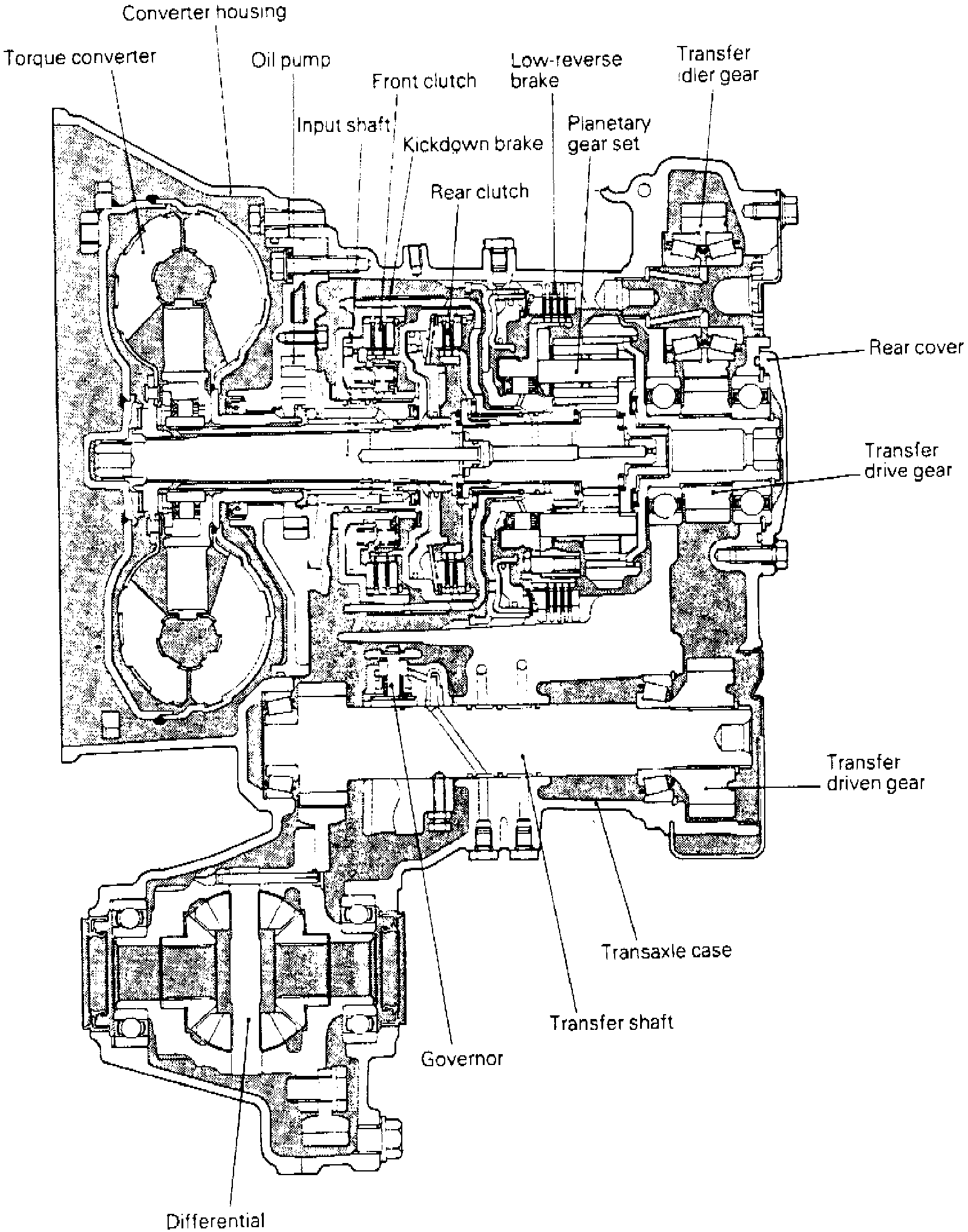

Fig.1
. This transaxle is used on all Colt and Summit models with
1.5L
engines.
