Automatic Transmission/Transaxle: Testing and Inspection

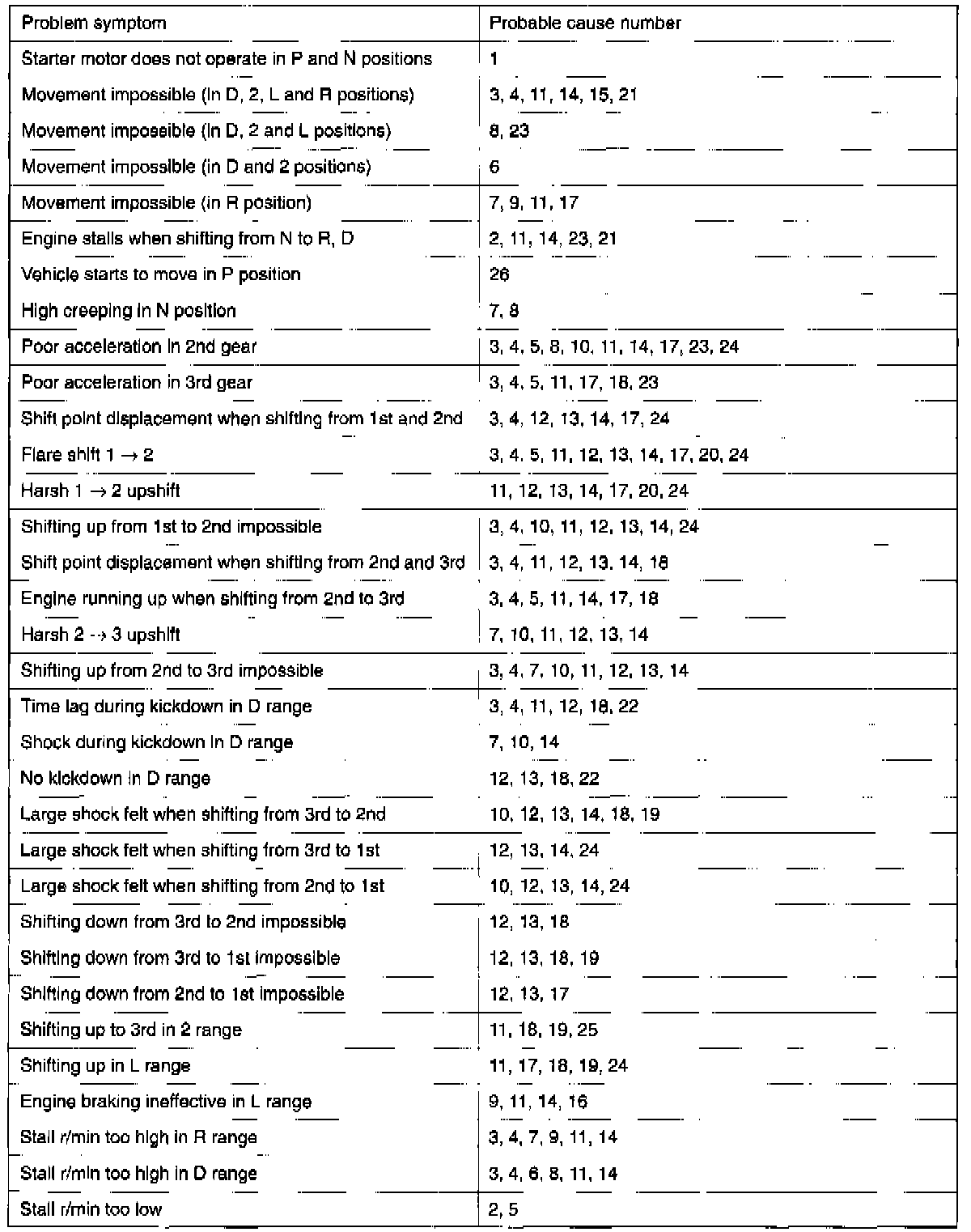

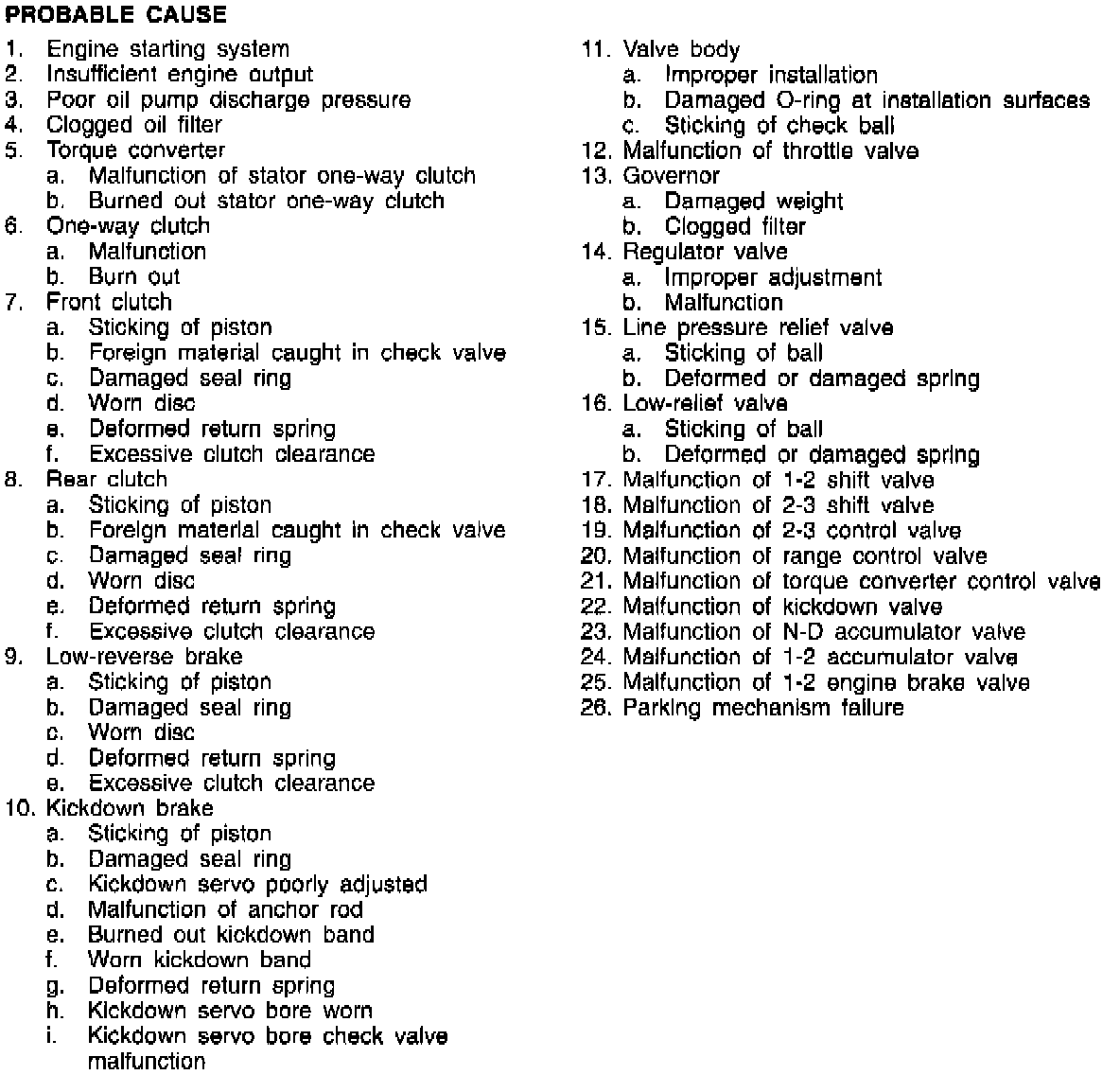

Refer to Fig.2 when troubleshooting this transaxle.
