Wiper Arm: Service and Repair

Wiper Arm And Blade Assembly Installation:

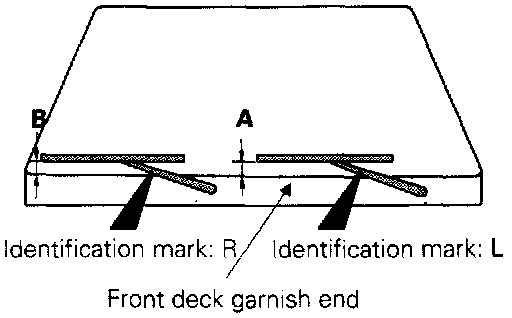

1. The movements of the left and right wiper arms are different, so check the identification marks.

2. Install the wiper blade in the specified position (standard value) as shown in the illustration.

Standard Values:
(A): 20 - 30 mm (0.79 - 1.18 in.)
(B): 15 - 25 mm (0.59 - 0.98 in.)
