Manufacturer Code Charts: 34

Diagnostic Chart:

Code No.34 Connector lock system

[Explanation]

This code is output when the opened state of the double lock short bar of the SDU connector is detected.

When the normal state is restored for a continuous period of 5i0.2 seconds, code No.34 is automatically erased, and the SRS warning light goes out.

Probable cause of trouble

^ Defective connector

^ Defective SDU

Caution

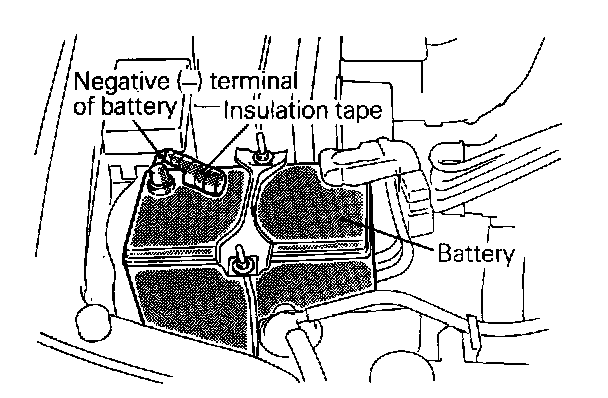

1. After the ignition switch has been placed at the LOCK position and the negative (-) terminal of the battery has been disconnected, wait for more than 60 seconds before starting work. Wind a tape around the disconnected (-) terminal for insulation.

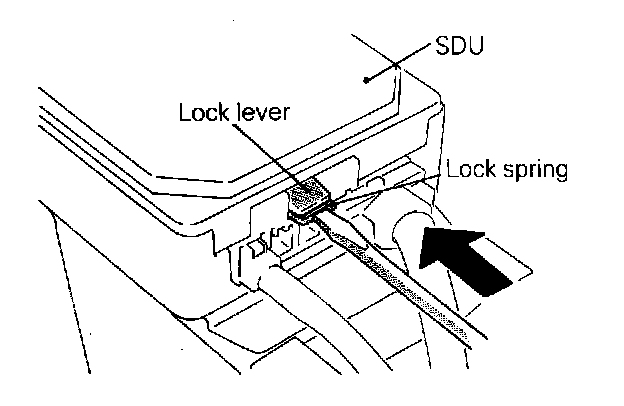

2. To unlock the SDU connector, put a flat tip screwdriver on the lock spring (metallic portion) of the lock lever as shown, and press it horizontally toward the inside of the unit. In this case, do not force the lock lever up. Do not put the flat tip screwdriver in the clearance between the lock lever and lock spring (me
