Symptom Related Diagnostic Procedures

Fig 1 Anti-Lock Brake System Troubleshooting (Part 1 Of 3):





Fig 1 Anti-Lock Brake System Troubleshooting (Part 2 Of 3):

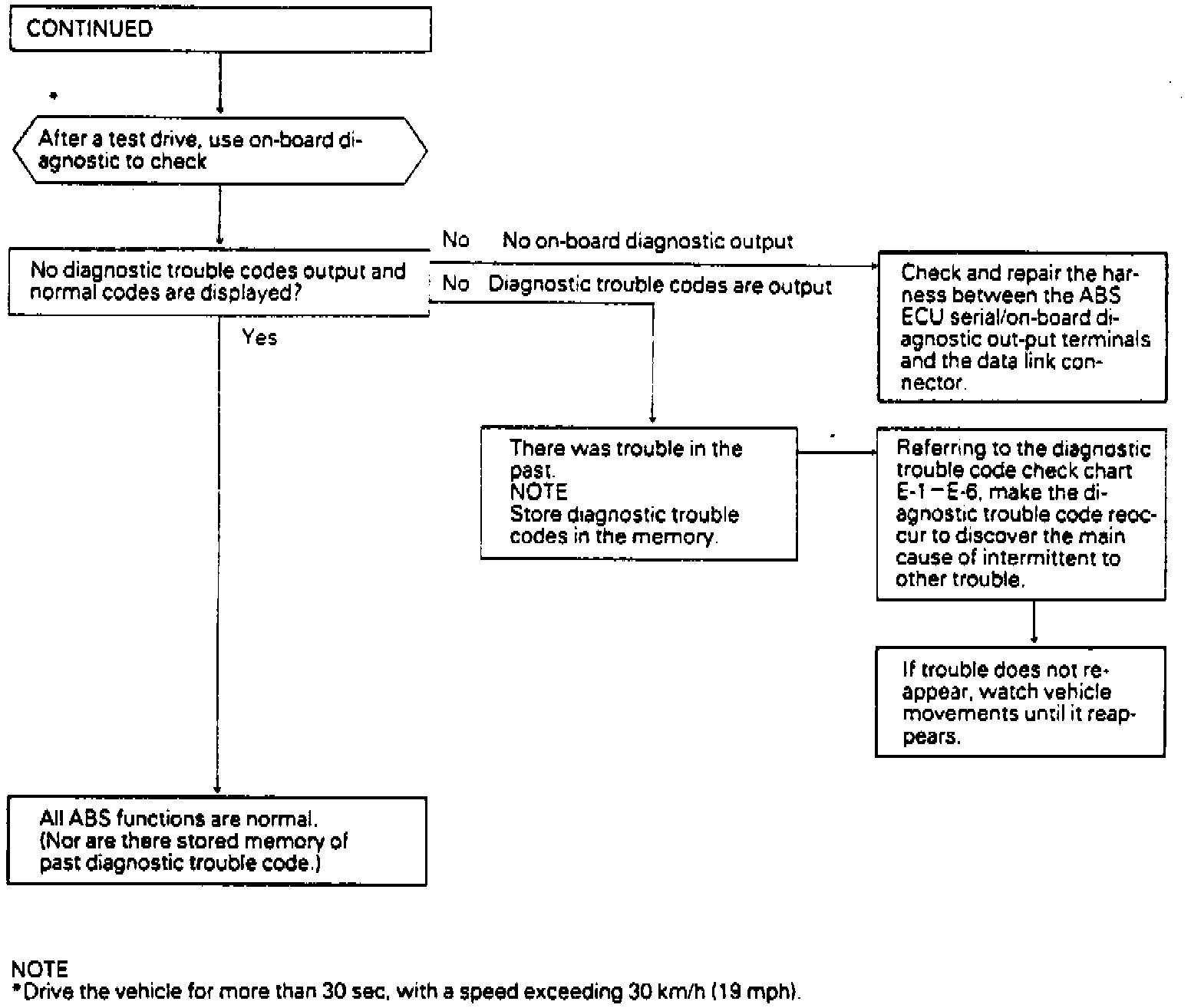

Fig 1 Anti-Lock Brake System Troubleshooting (Part 3 Of 3):
