Home >> Eagle >> 1994 >> Summit Wagon FWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Part 1 of 3

Part 1 of 3

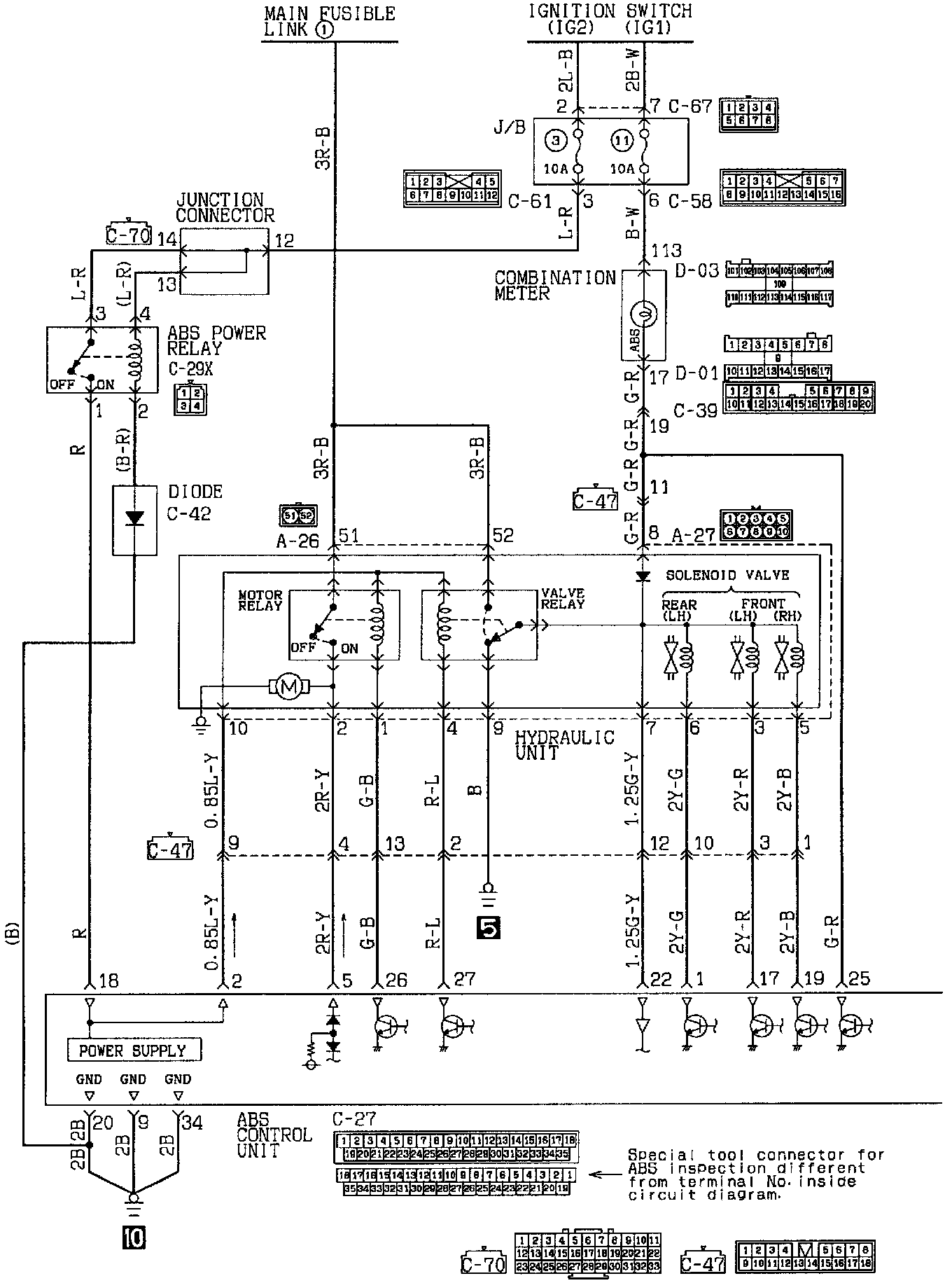

Anti-Lock Braking System <FWD> (Part 1 Of 3):
