Cargo Lamp
>>
With Keyless Entry System
With Keyless Entry System

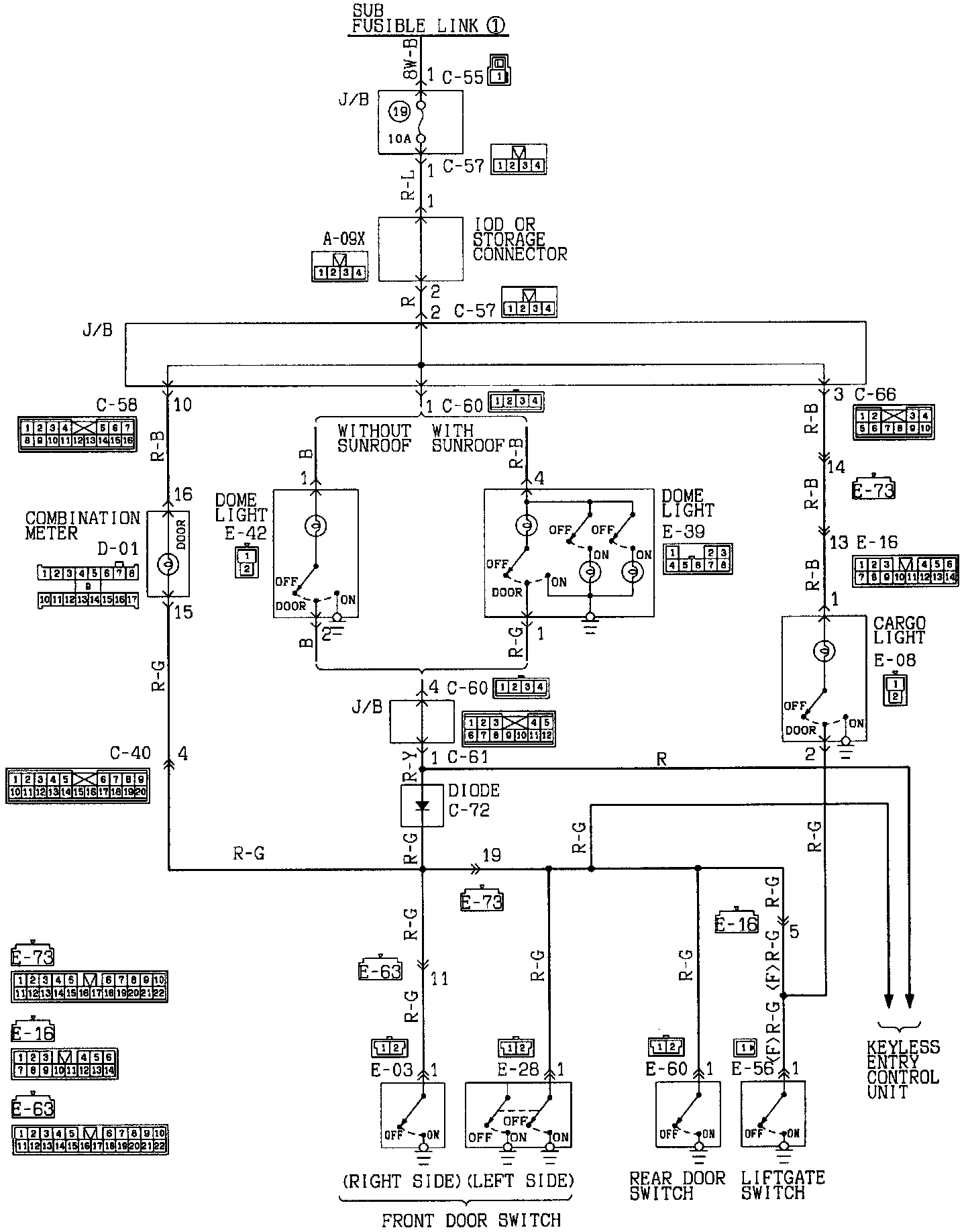

Dome And Cargo Lights <Vehicles With Keyless Entry System>:
