Eagle
>>
1994
>>
Summit Wagon FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cargo Lamp
>>
Without Keyless Entry System
Without Keyless Entry System

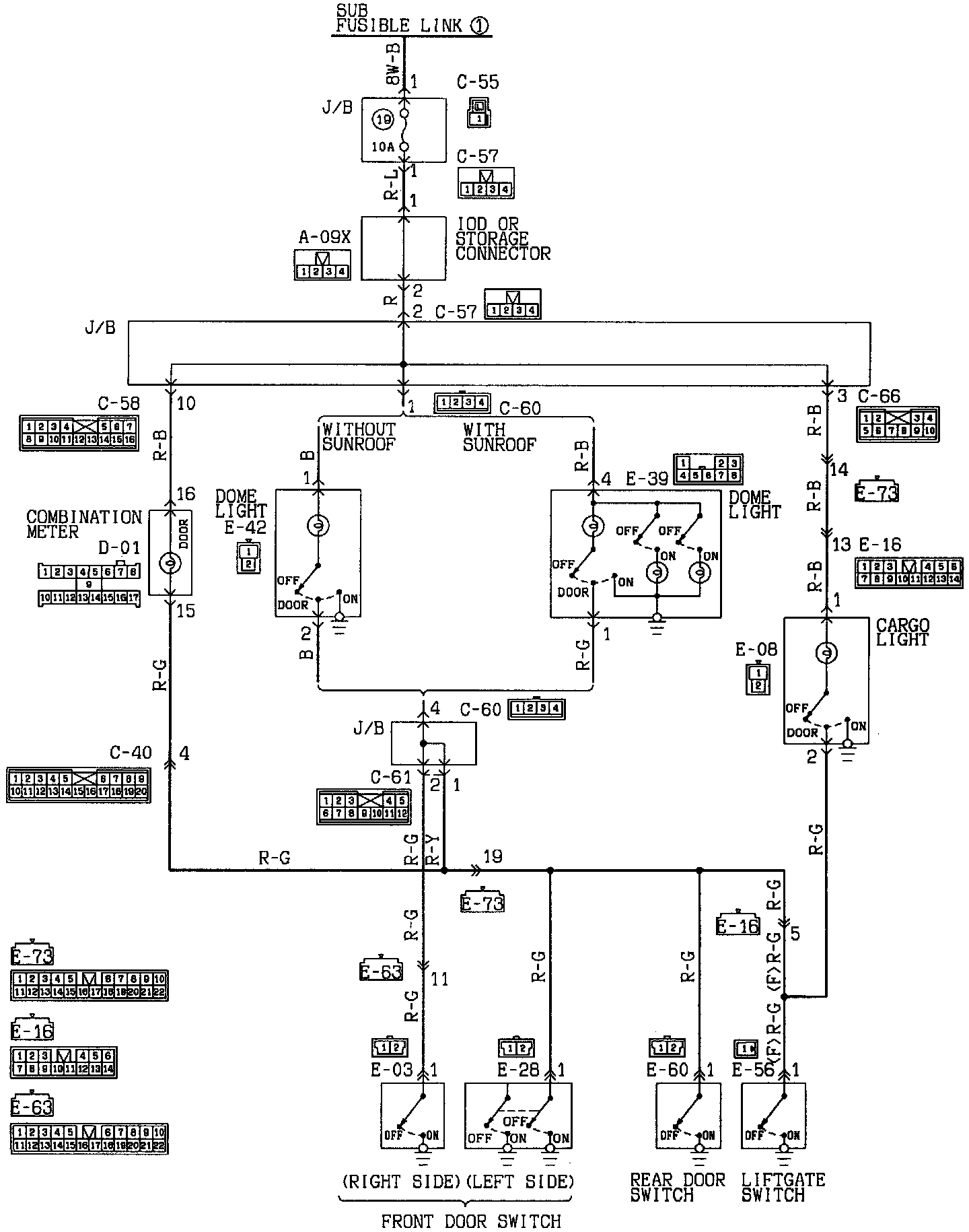

Dome And Cargo Lights <Vehicles Without Keyless Entry System>:
