Eagle
>>
1994
>>
Summit Wagon FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
With Daytime Running Lamps
With Daytime Running Lamps

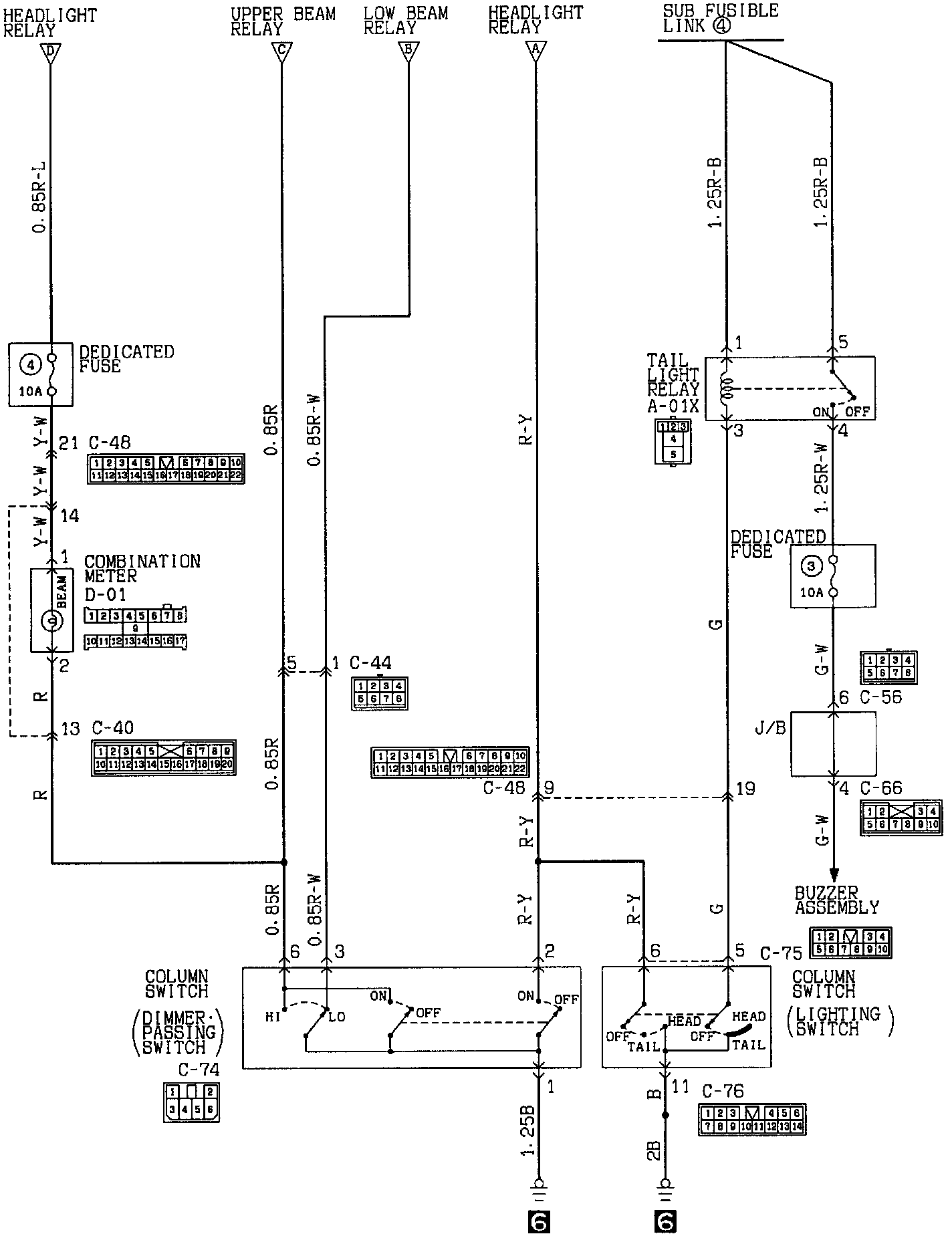

Headlight <Vehicle With Daytime Running Light> (Part 2 Of 2):

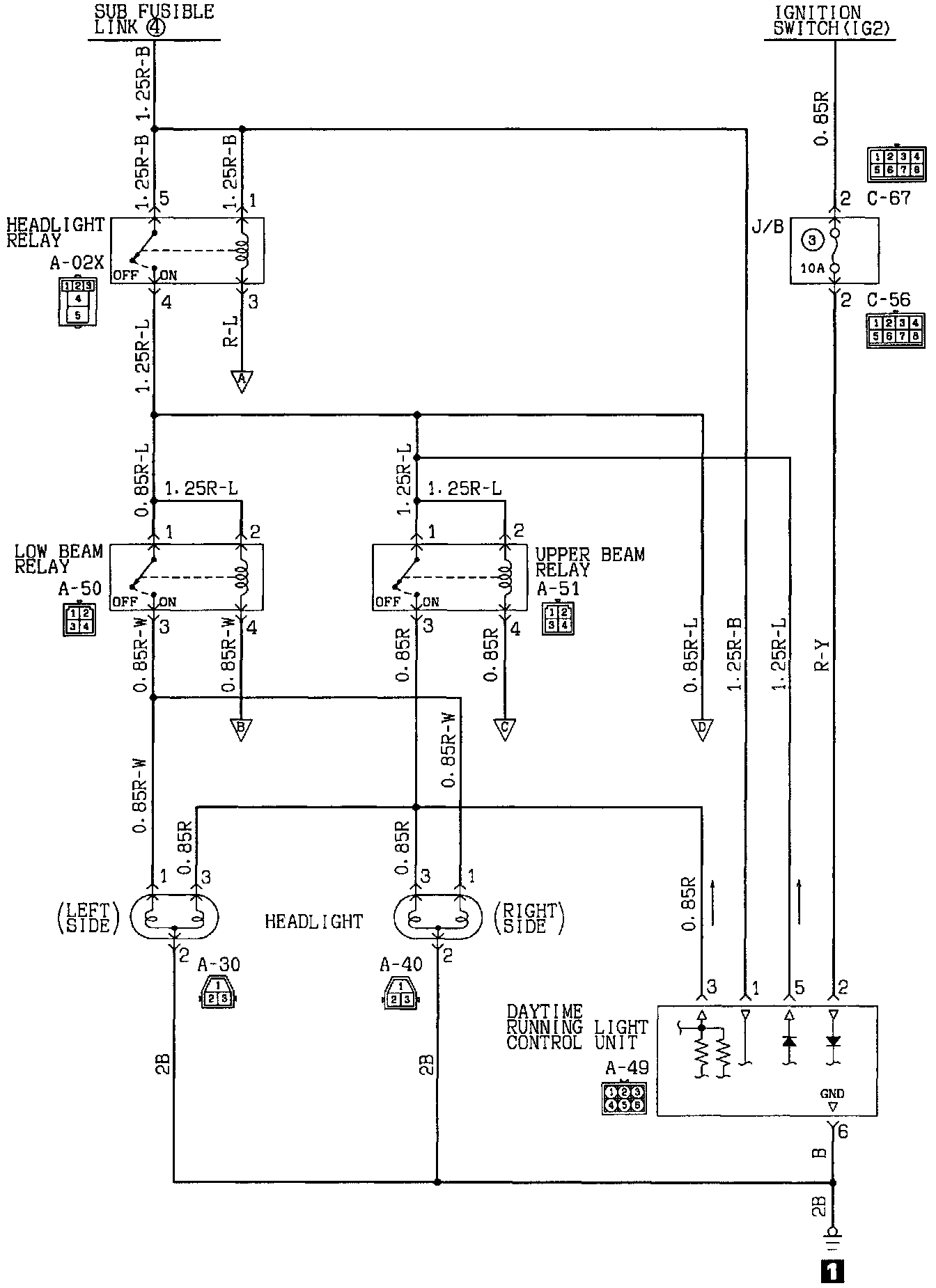

Headlight <Vehicles With Daytime Running Light> (Part 1 Of 2):
