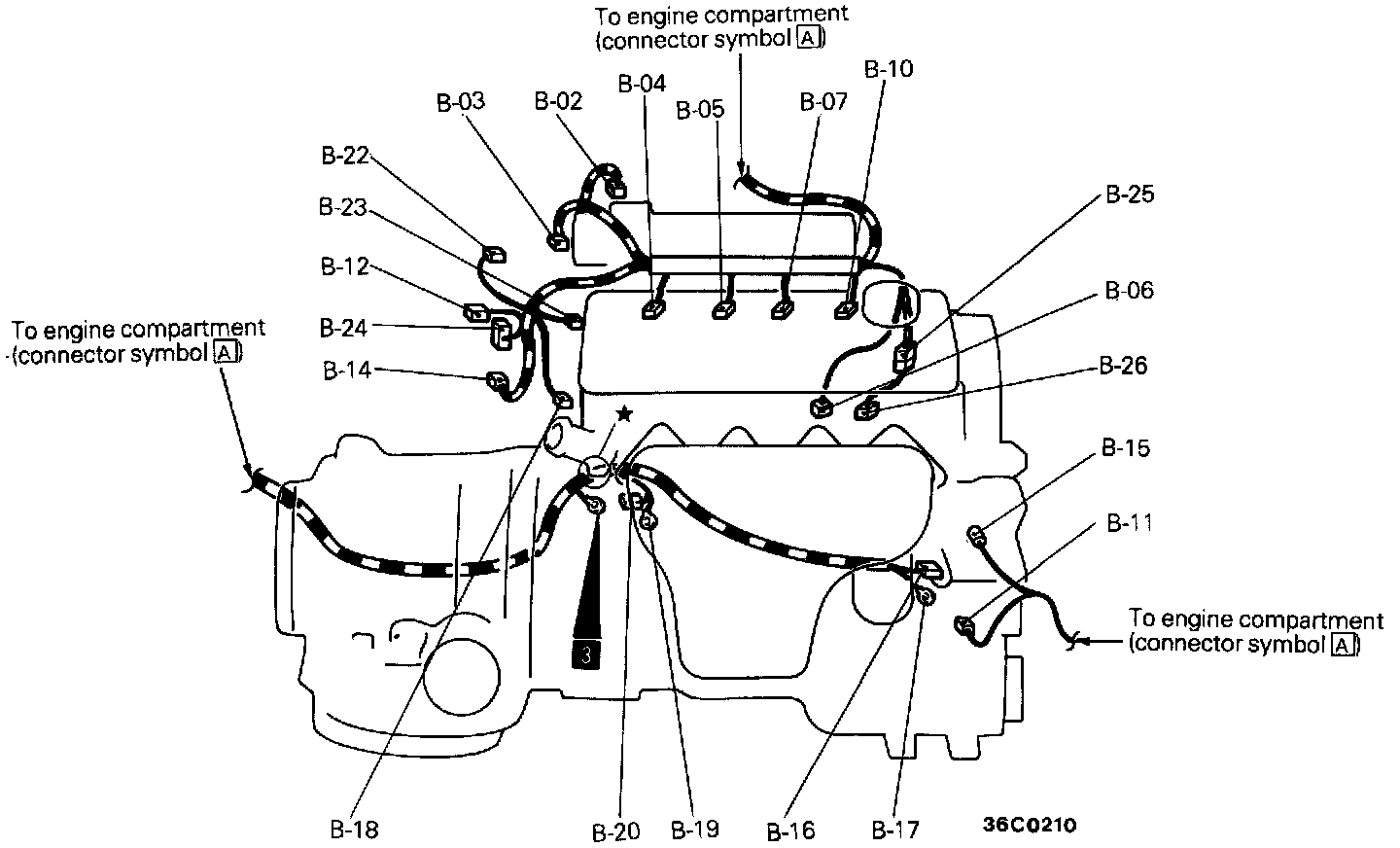

B Connectors - Engine And Transaxle Harness

Engine And Transaxle:

B-01 -
B-02 Throttle position sensor
B-03 Idle speed control motor
B-04 Injector No.4
B-05 Injector No.3
B-06 EGR temperature sensor
B-07 Injector No.2
B-08 -
B-09 -
B-10 Injector No.1
B-11 Air conditioning compressor
B-12 Condenser
B-13 -
B-14 Distributor assembly
B-15 Power steering pressure switch
B-16 Generator
B-17 Generator
B-18 Oil pressure switch
B-19 Starter
B-20 starter
B-21 -
B-22 Engine coolant temperature sensor
B-23 Engine coolant temperature gauge unit
B-24 Distributor assembly
B-25 Control wiring harness and oxygen sensor wiring harness combination
B-26 Heated oxygen sensor (front)

Remarks:
1. The mark "star" shows the standard mounting position of wiring harness.
2. For details concerning the ground point [3] refer to Grounding Location.
3. "-" means that the connector with code-number is not used.
