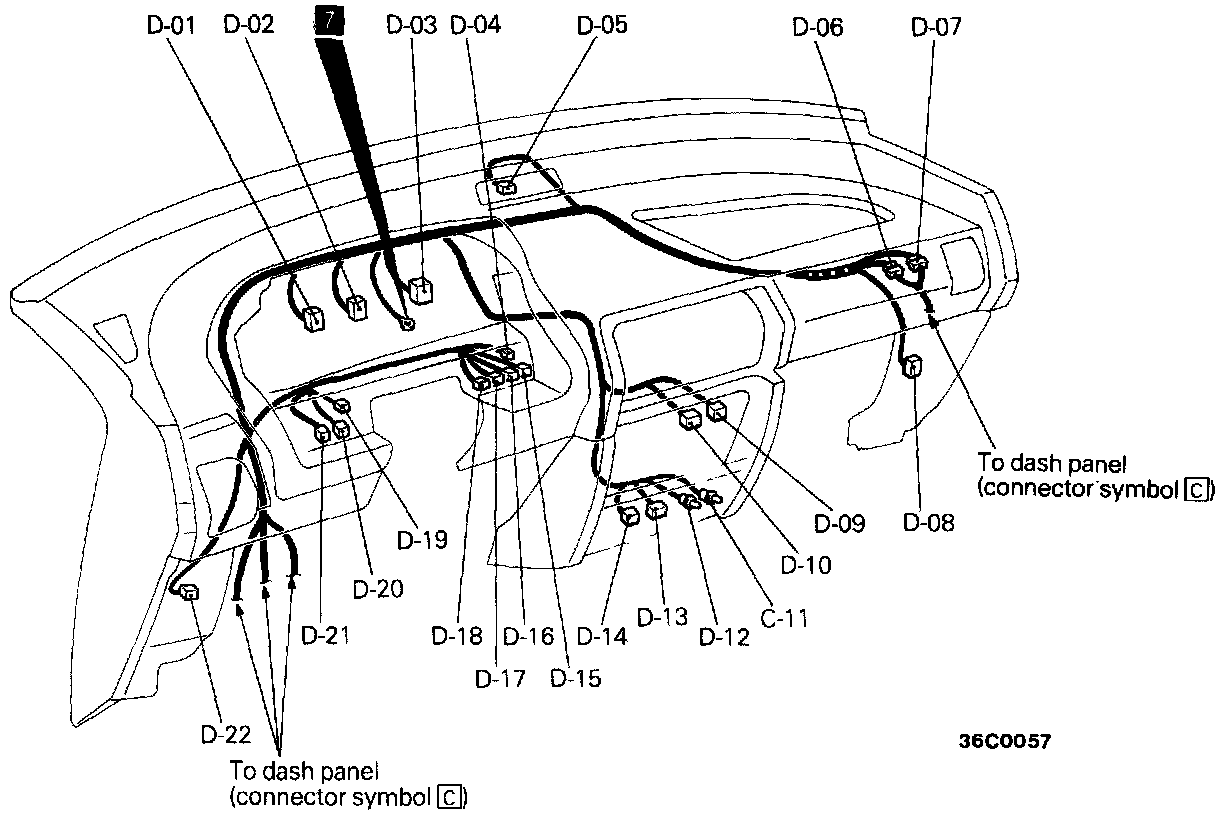

D Connectors - Instrument Panel Harness

Instrument Panel:

D-01 thru D-03 Combination meter
D-04 Cluster switch illumination light (right side)
D-05 Clock
D-06 Instrument panel wiring harness and control wiring harness combination
D-07 Instrument panel wiring harness and control wiring harness combination
D-08 Front speaker (right side)
D-09 Radio
D-10 Radio
D-11 Ashtray illumination light
D-12 Cigarette lighter illumination light
D-13 Cigarette lighter
D-14 Cigarette lighter
D-15 Hazard switch
D-16 Defogger switch
D-17 Rear wiper and washer switch
D-18 Auto-cruise control main switch
D-19 Rheostat
D-20 Liftgate lock switch or door lock switch
D-21 Cluster switch illumination light (left side)
D-22 Front speaker (left side)

Remark:
For details concerning the ground point [7], refer to Grounding Location.
