Without Daytime Running Light

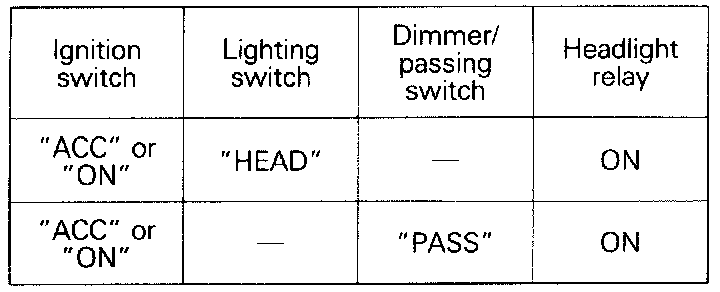

Conditions For Switch-ON Of Headlight Relay:

Conditions for switch-ON of headlight relay


^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.

^ The low beam of the headlights will illuminate when, in this condition, the dimmer/passing switch is set to the "LO" position.


^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.

^ The high beam of the headlights will illuminate when, in this condition, the dimmer/passing switch is set to the "HI" position.


^ This indicator illuminates during use of the high beam of the headlights, and when the passing signal (high beam) is activated, this indicating that the headlight's high beam is illuminated.
