Electrical Diagrams

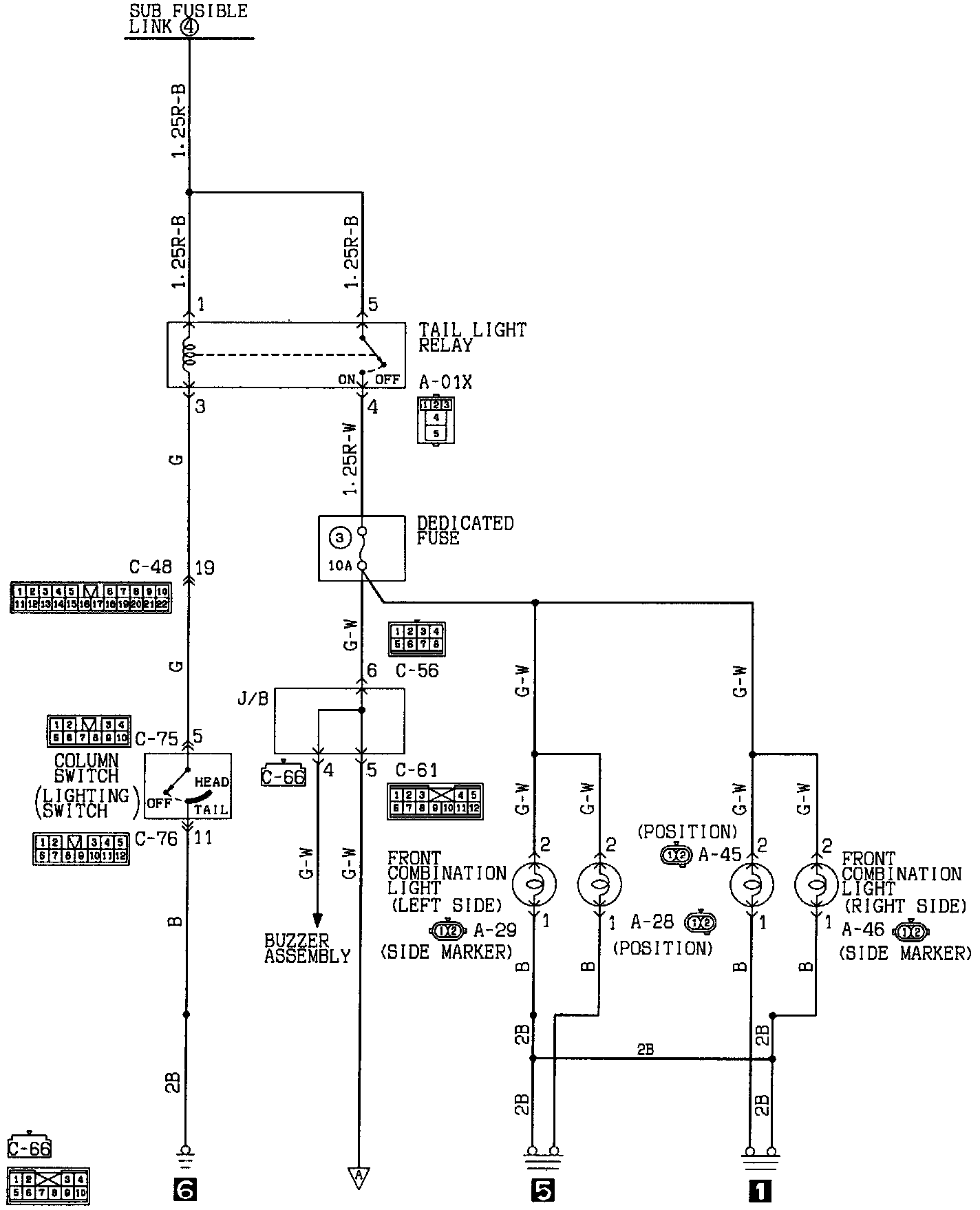

Tail, Position, Side Marker, And License Plate Lights (Part 1 Of 2):

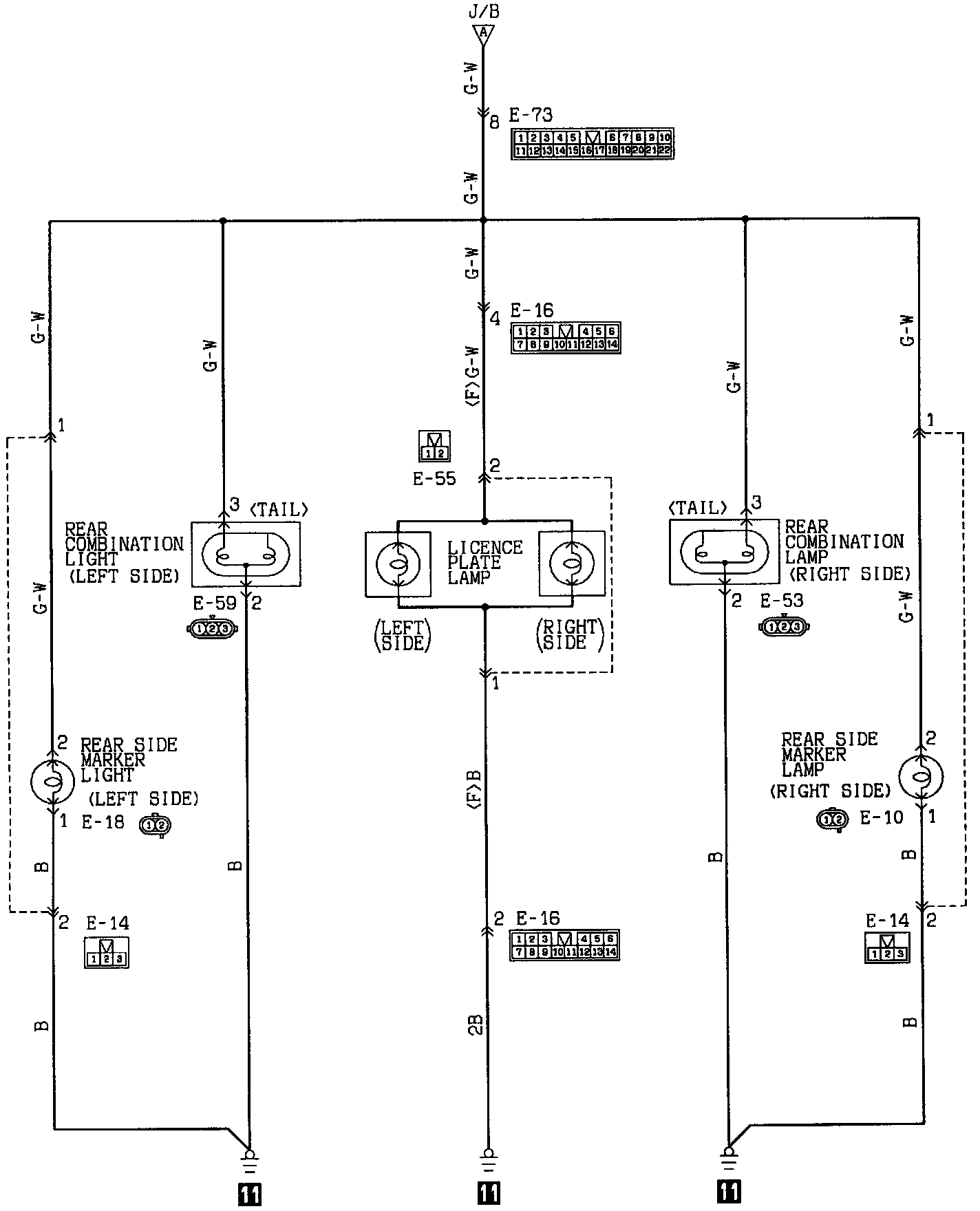

Tail, Position, Side Marker, And License Plate Lights (Part 2 Of 2):
