Electrical Diagrams

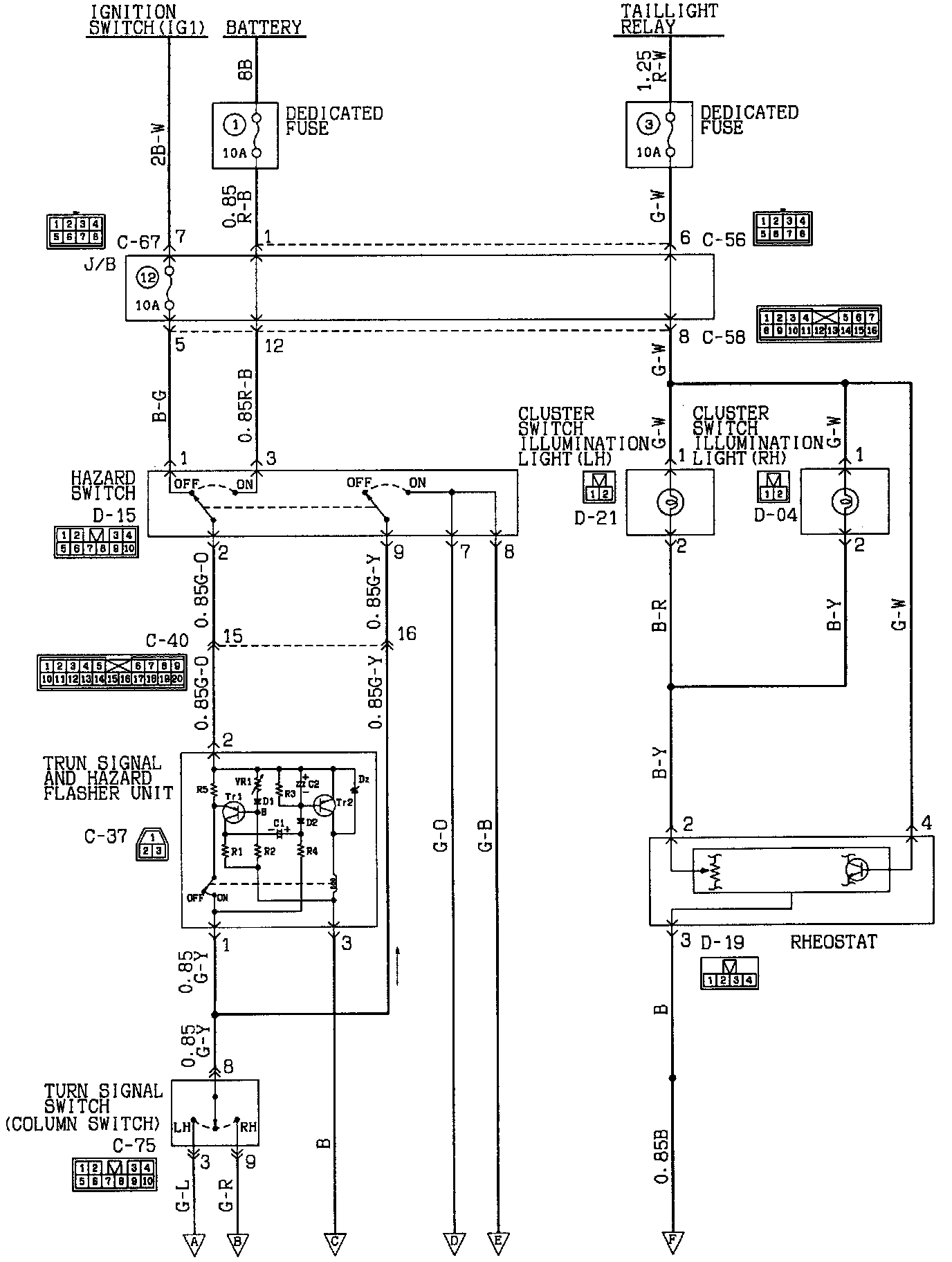

Turn-Signal And Hazard Lights (Part 1 Of 2):



Turn-Signal And Hazard Lights - Part 2:
