Electrical Diagrams

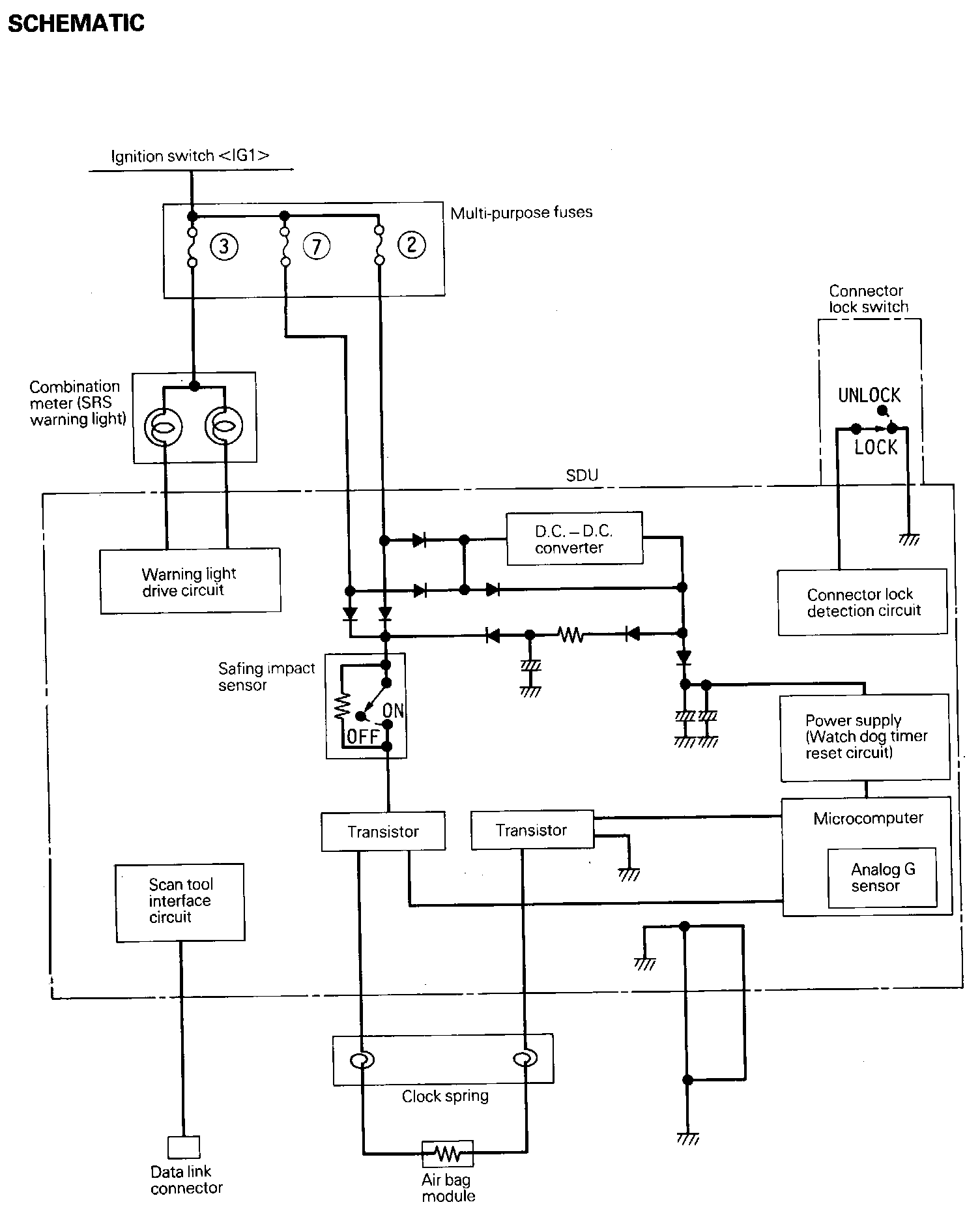

Wiring Schematic:




schematic

Configuration Diagrams:




Configuration diagrams

Interior:




interior

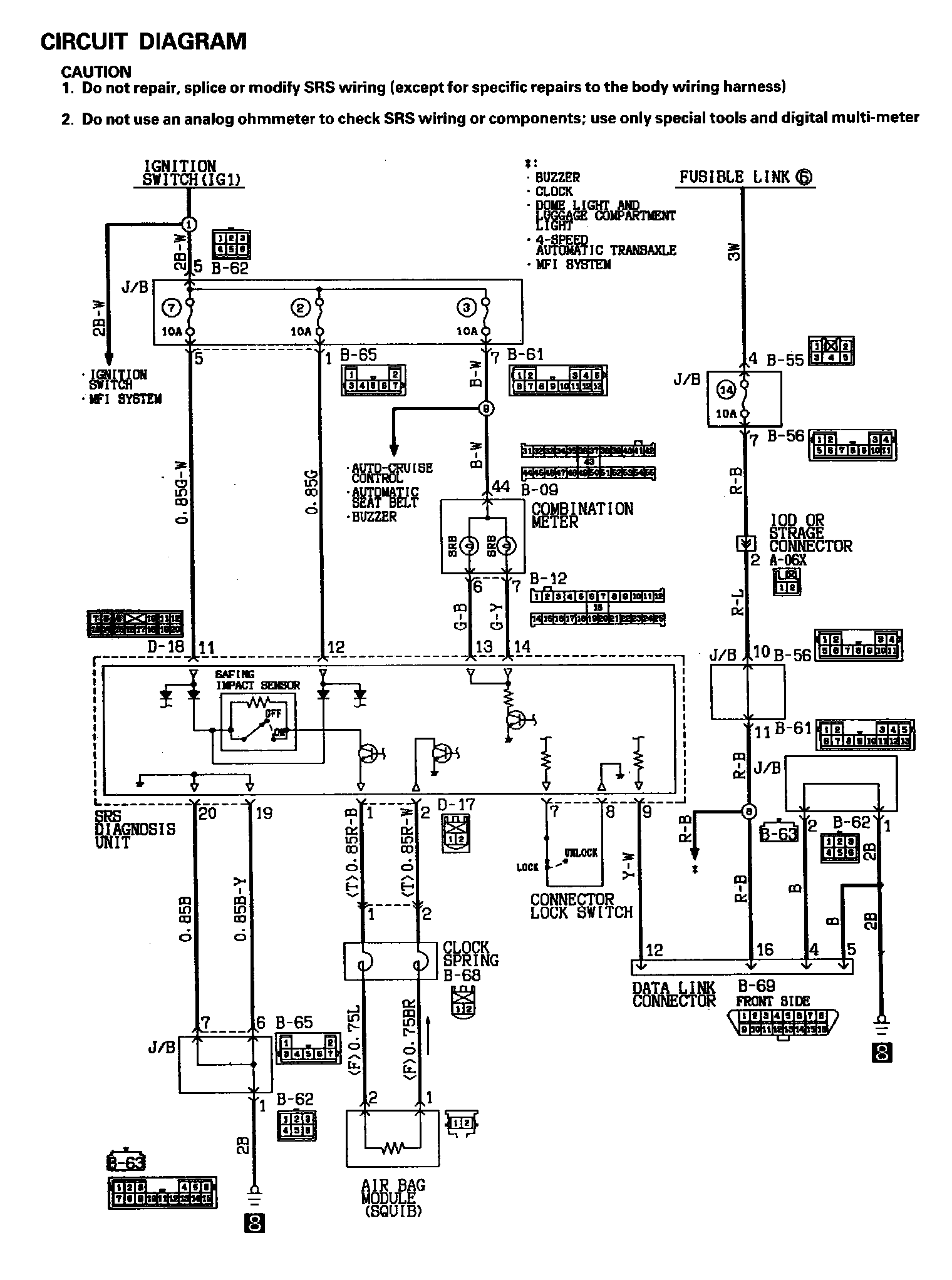

Circuit Diagram:




circuit diagram

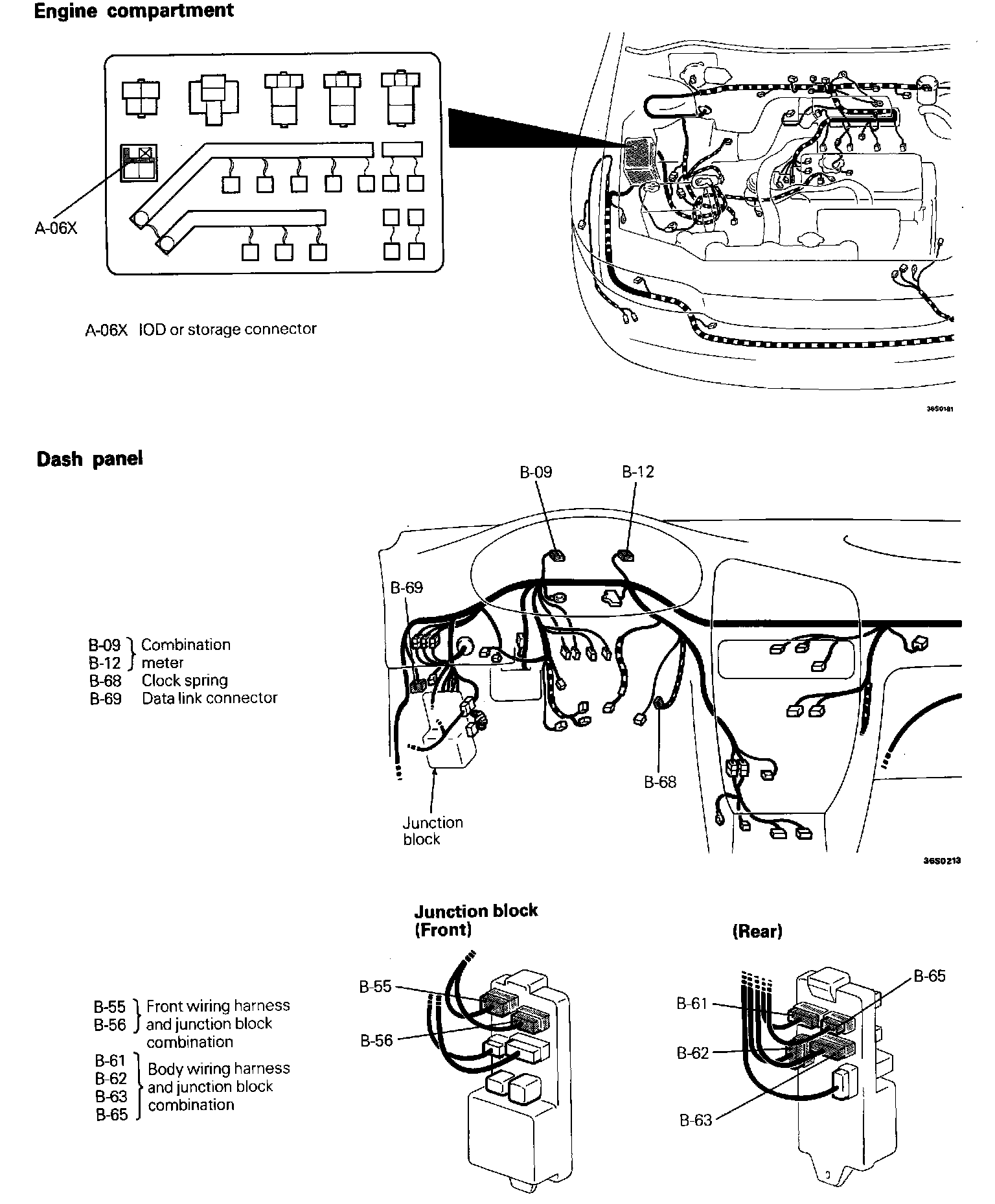

Component Location:




component location
