Electrical Diagrams

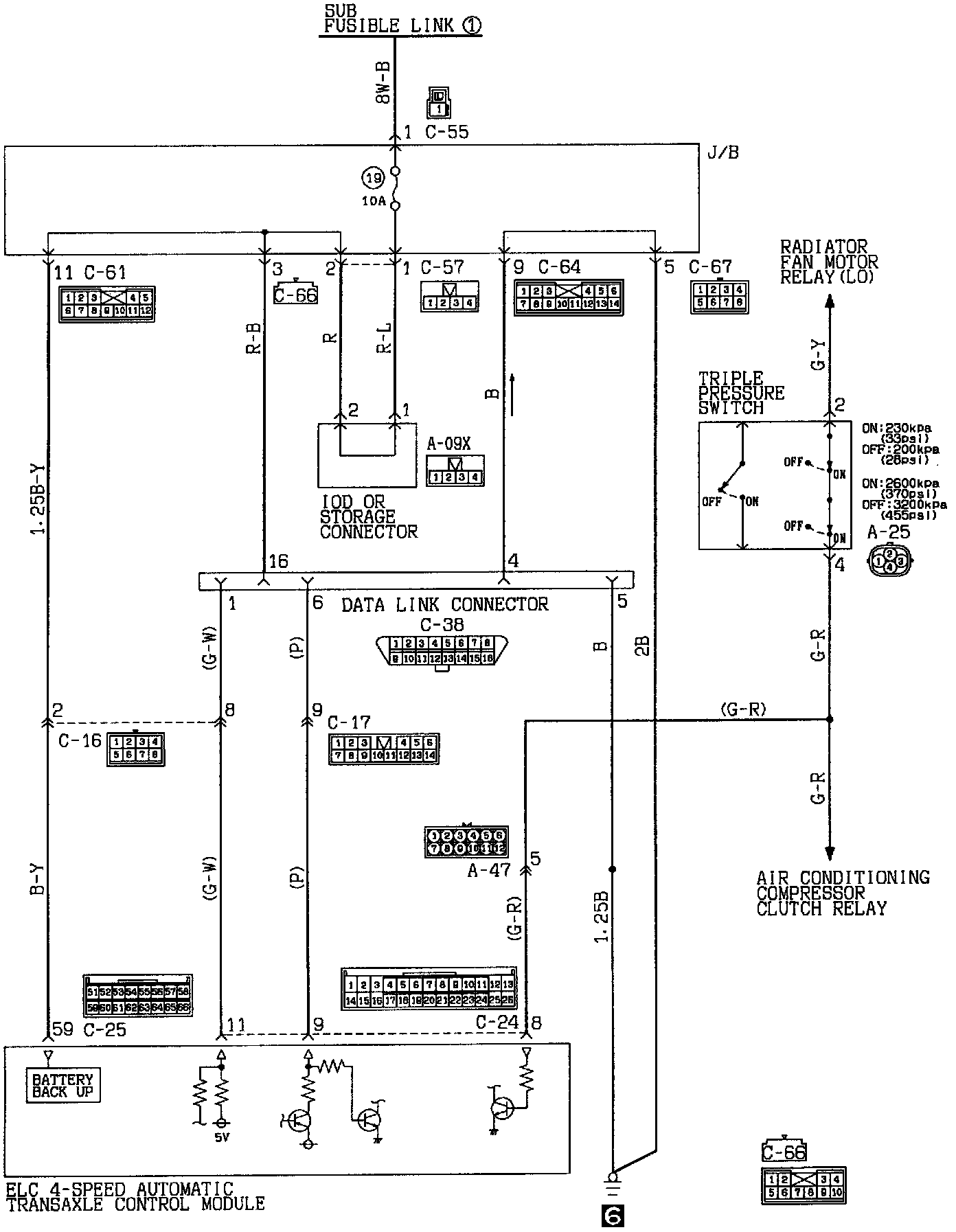

ELC 4-Speed Automatic Transaxle (Part 1 Of 5):

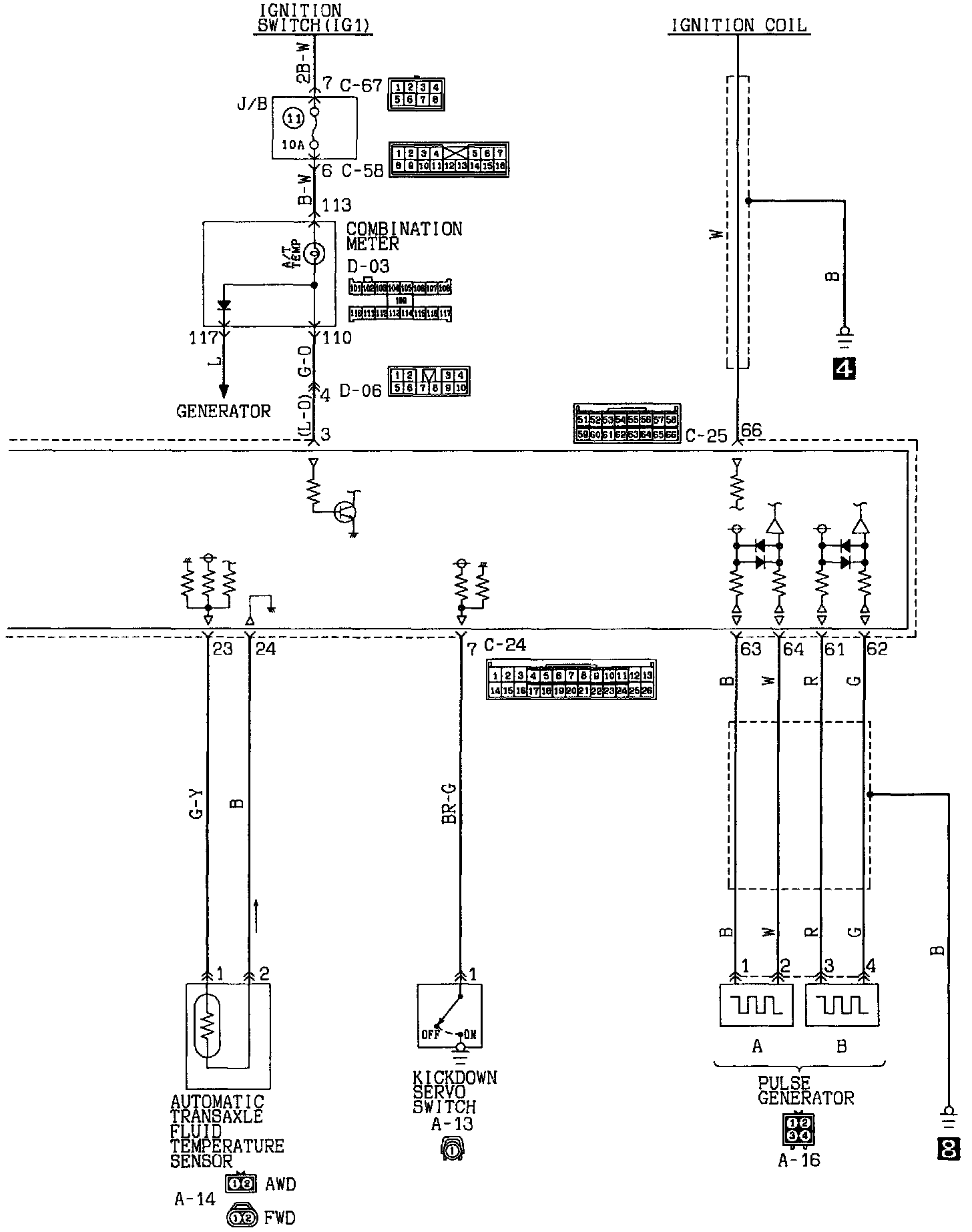

ELC 4-Speed Automatic Transaxle (Part 2 Of 5):

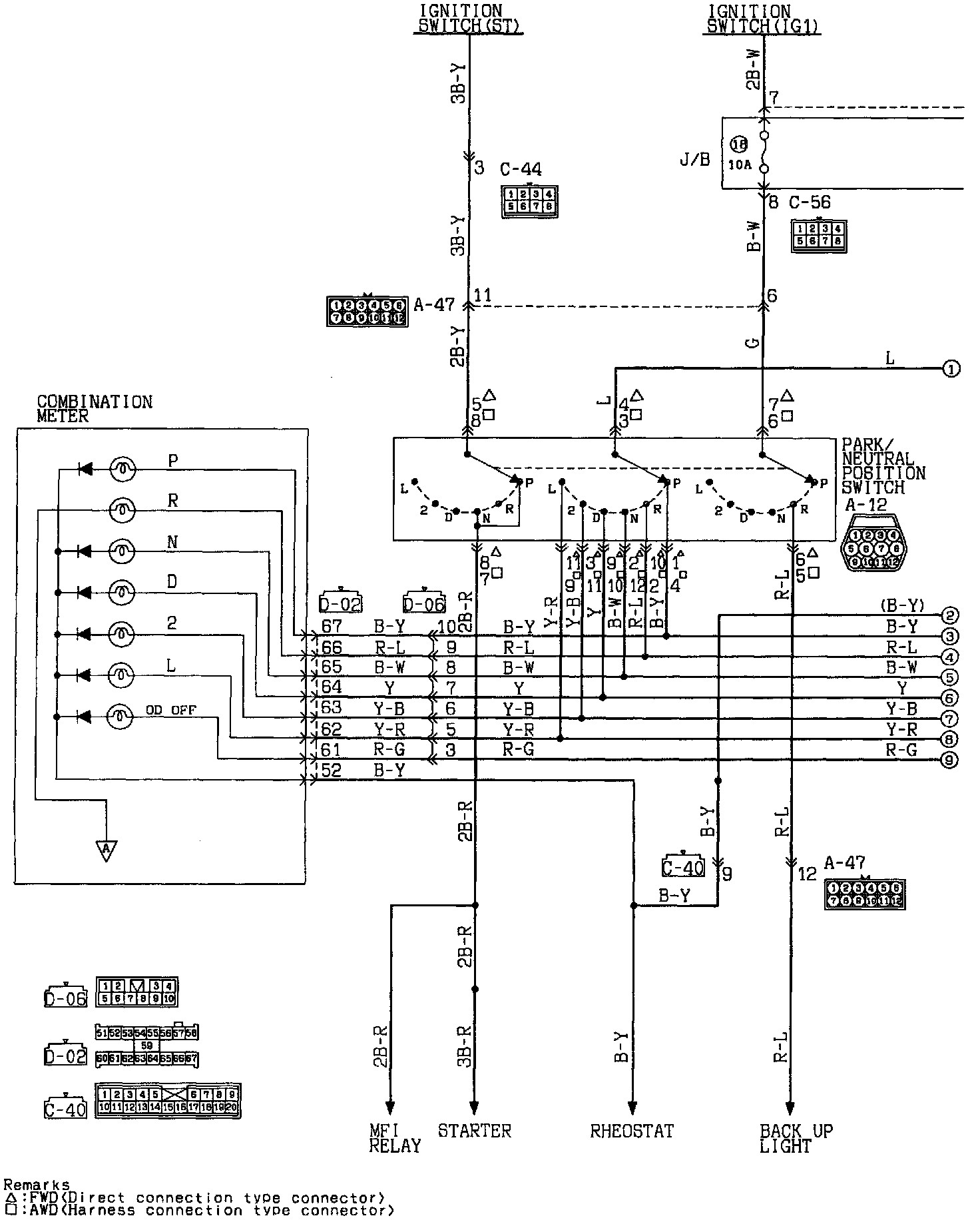

ELC 4-Speed Automatic Transaxle (Part 3 Of 5):

ELC 4-Speed Automatic Transaxle (Part 4 Of 5):

ELC 4-Speed Automatic Transaxle (Part 5 Of 5):
