Rear Wiper and Washer

1. Wipers do not operate.
(a) Washer is not operative, either.
- Check multi-purpose fuse No. 9.
- Check ground,

2. Low-speed wiper operation only is inoperative.
- Check wiper switch.

3. Wipers do not stop.
- Check wiper motor.
- Check rear intermittent wiper relay.
- Check rear wiper switch.

Rear Wiper And Washer:

4. Intermittent wiper operation is inoperative.

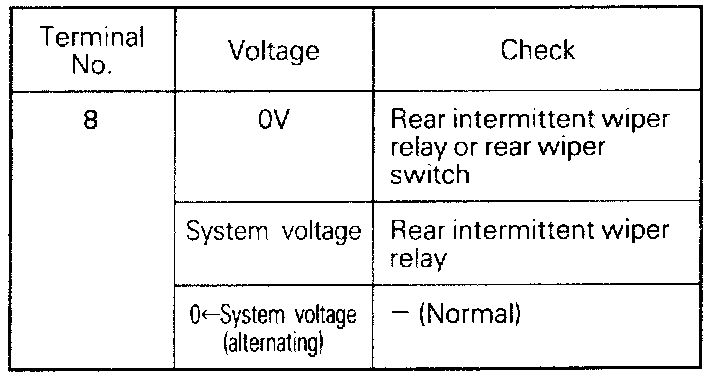

- Check terminal voltage of rear wiper switch (with a built-in intermittent wiper relay) with the rear intermittent wiper relay energized.

5. Washer is inoperative.
- Check washer motor.
- Check washer switch.
