Home
>>
Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Fuse and Fusible Link Locations
>>
Sub-Fusible Links
Sub-Fusible Links

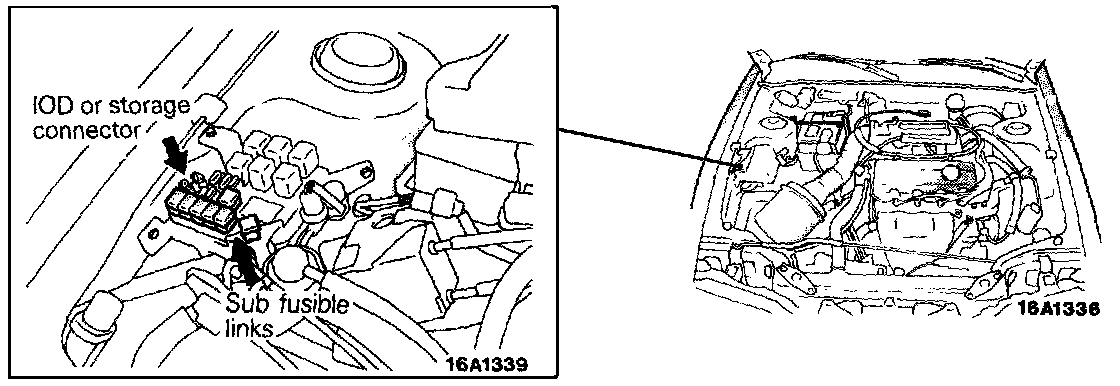

IOD Or Storage Connector, Sub-Fusible Links:
