Multiport Fuel Injector (MFI) Relay
Multiport Fuel Injector (MFI) Relay

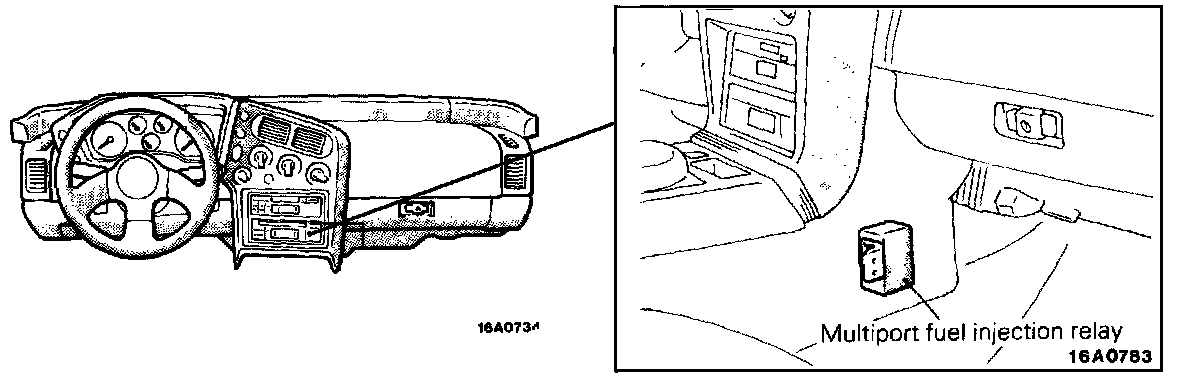

Multiport Fuel Injection Relay:
