Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

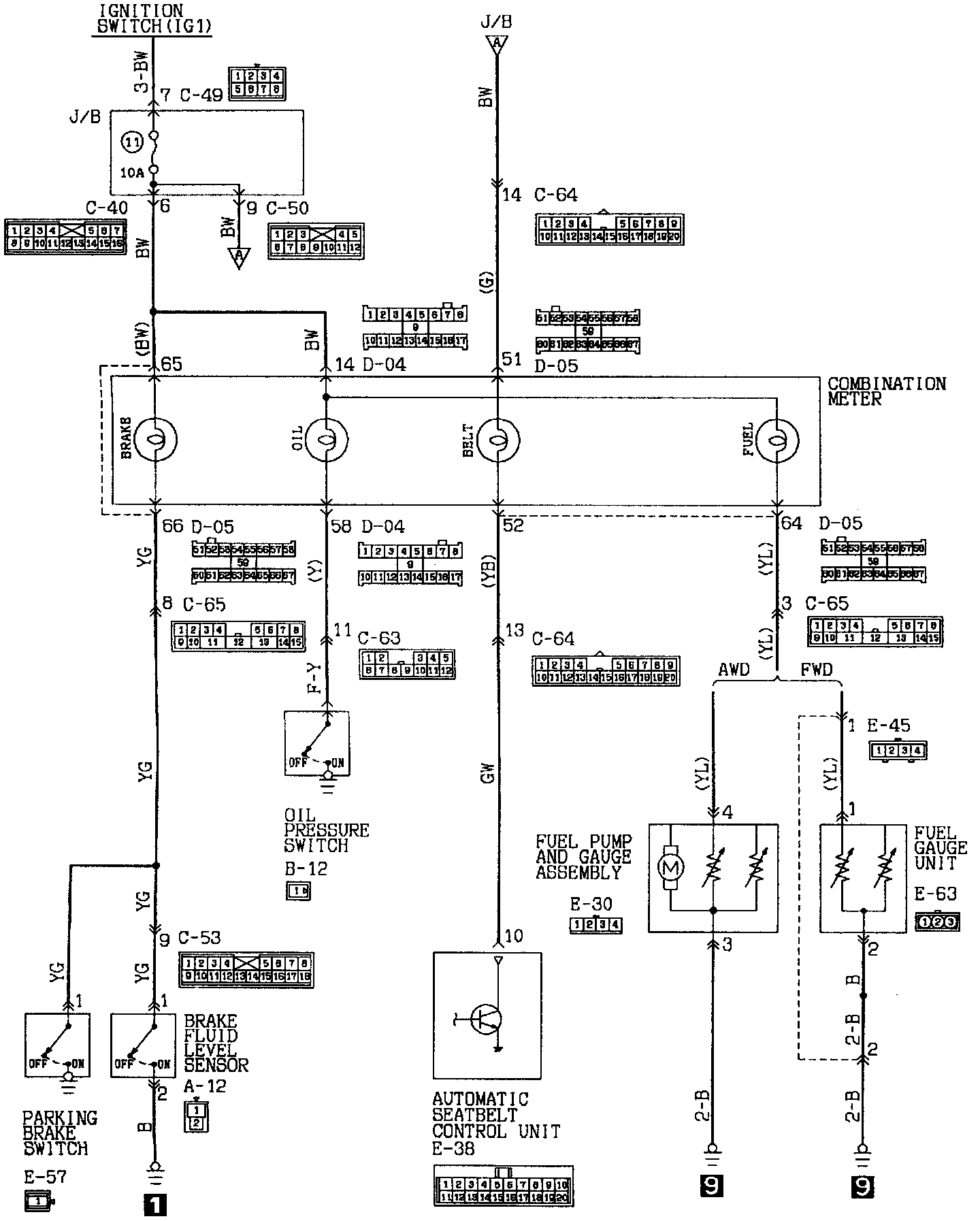

Brake, Oil Pressure, Seat Belt, And Fuel Warning Lights:
