Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Part 2 of 2

Part 2 of 2

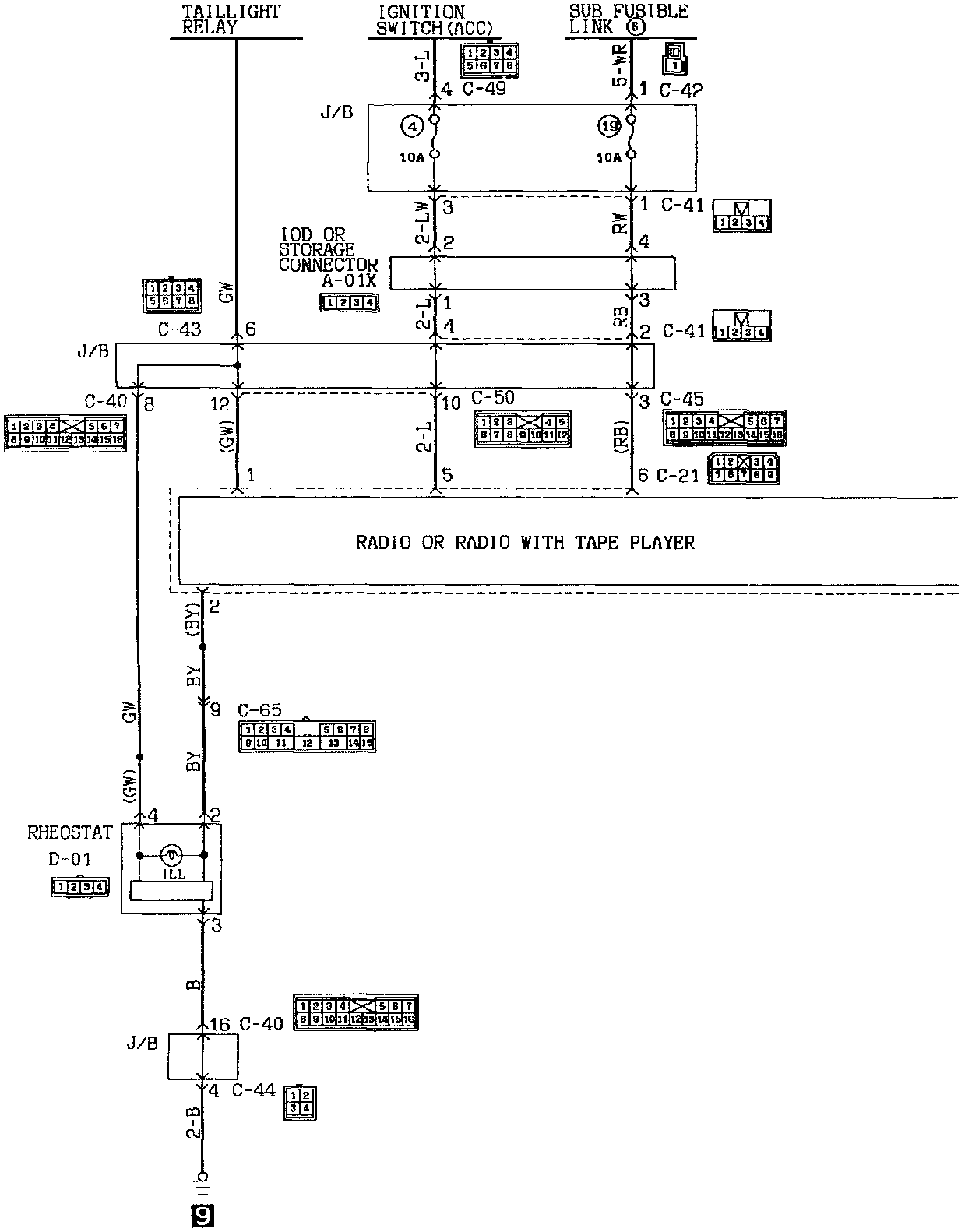

Audio System Circuit (Part 2 Of 2):
