Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

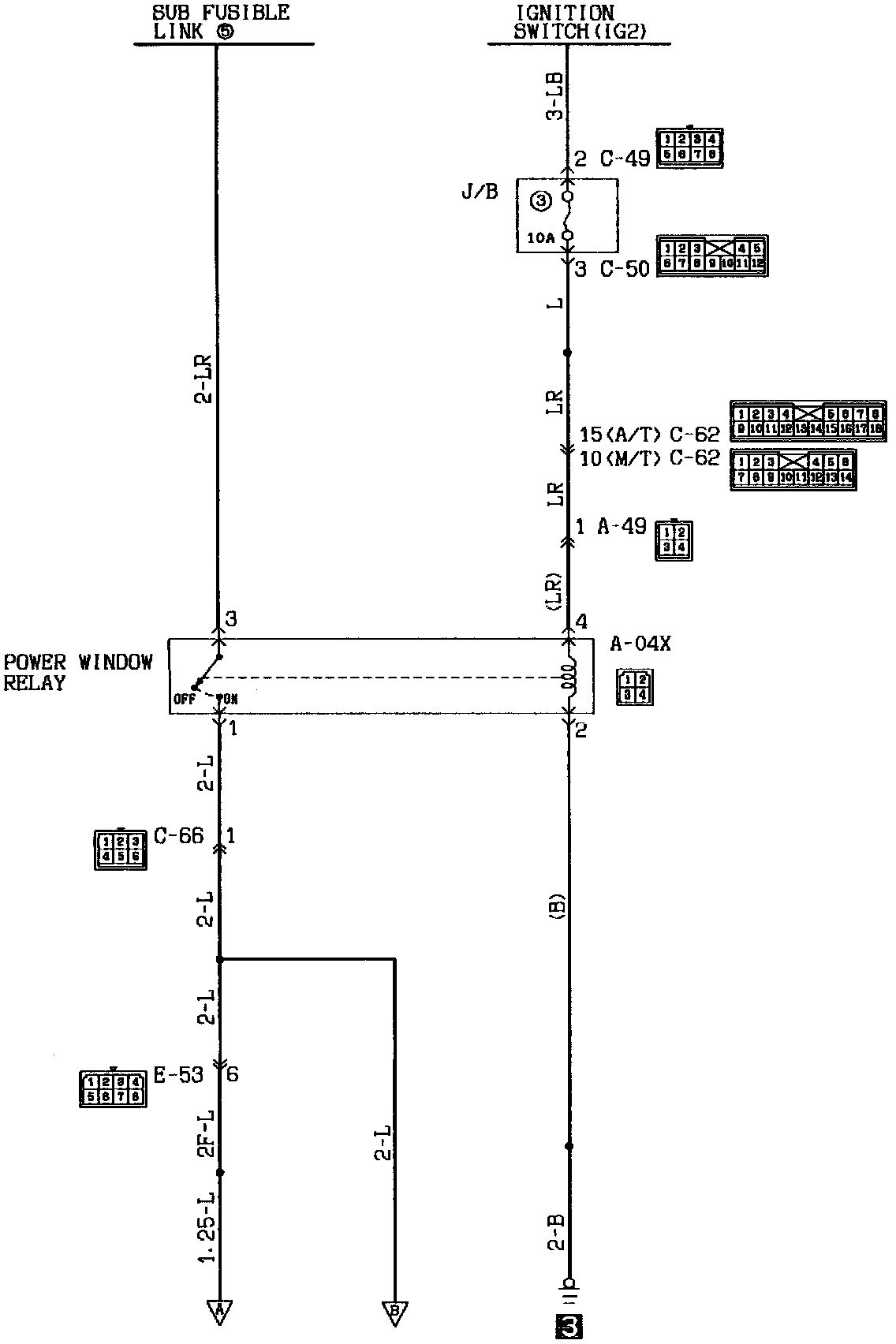

Power Window Circuit (Part 1 Of 2):

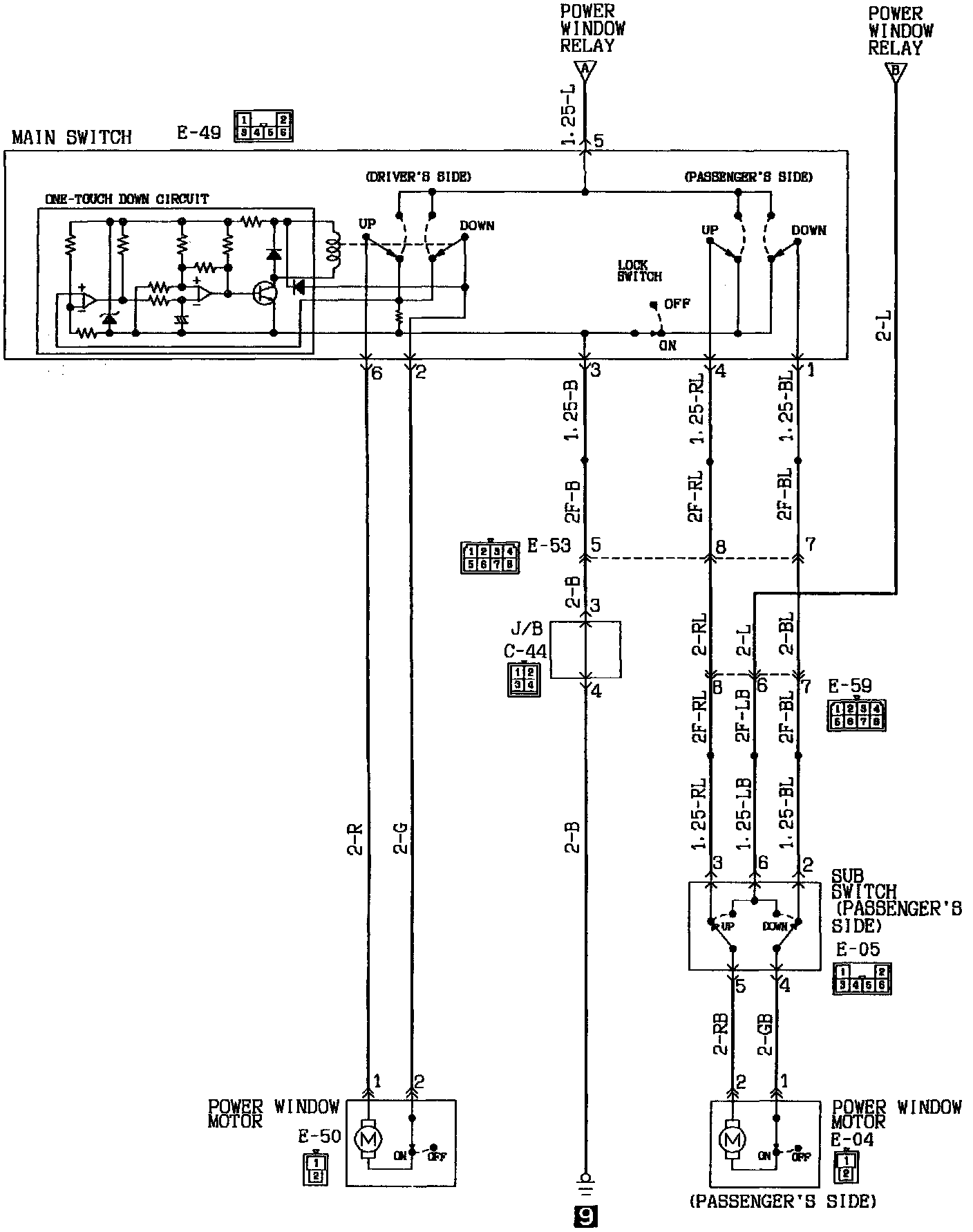

Power Window Circuit (Part 2 Of 2):
