Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

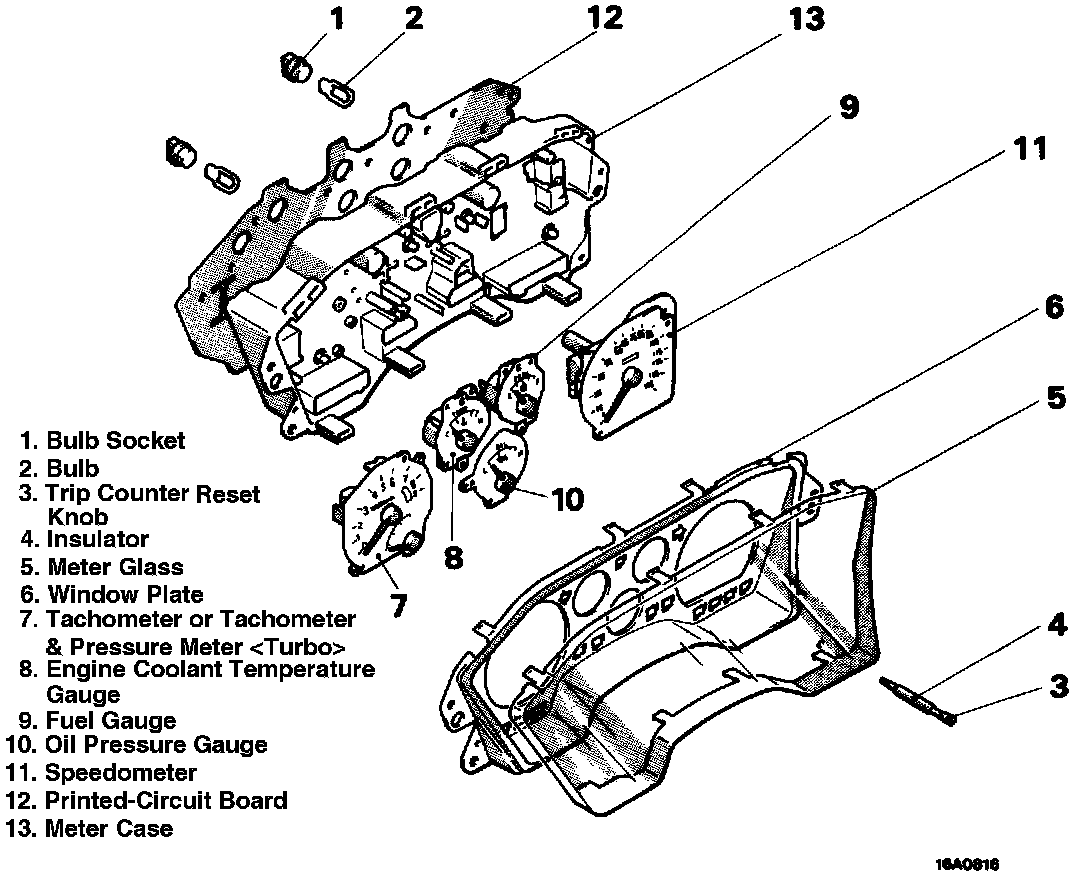

Meters and Gauges: Component
Meters and Gauges: Component
Meters And Gauges Removal And Installation:
