Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Lighting and Horns
>>
Horn
>>

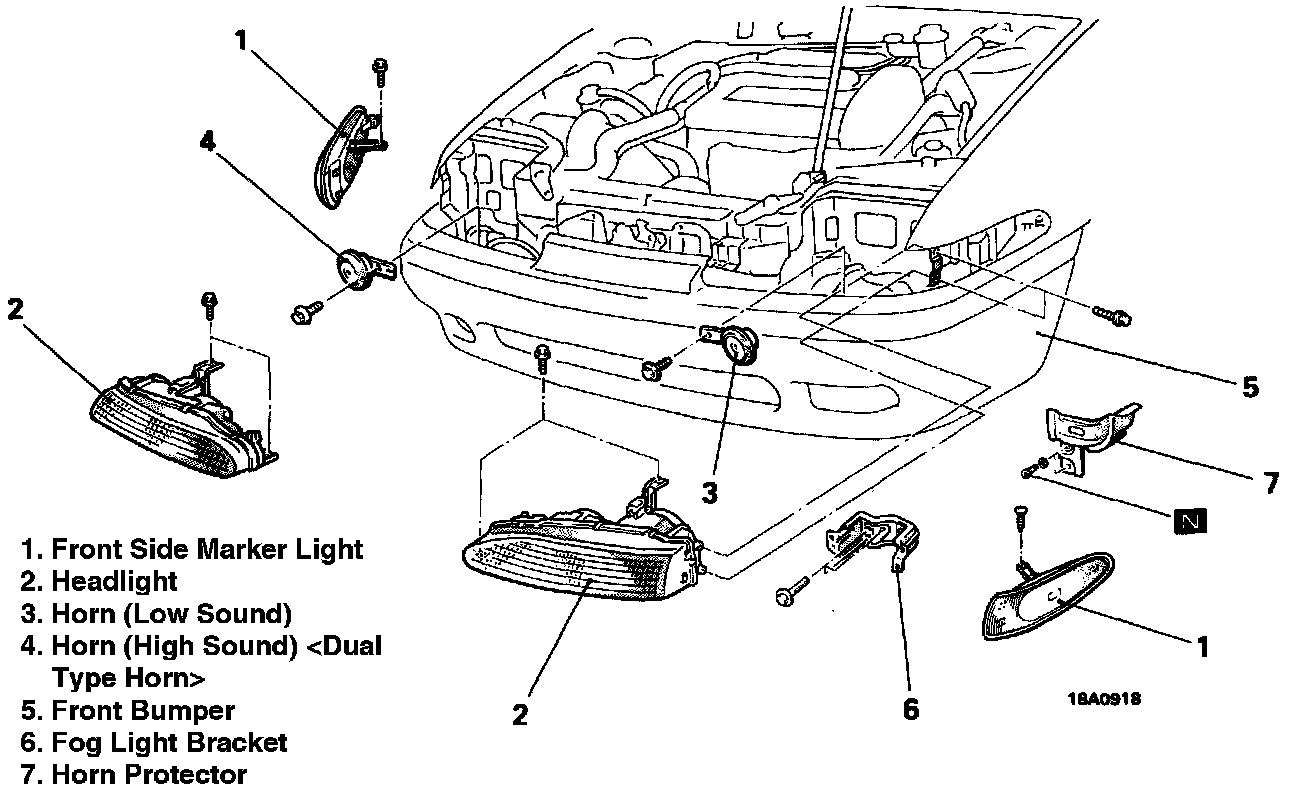

System Diagram
System Diagram
Horn Removal And Installation:
