Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

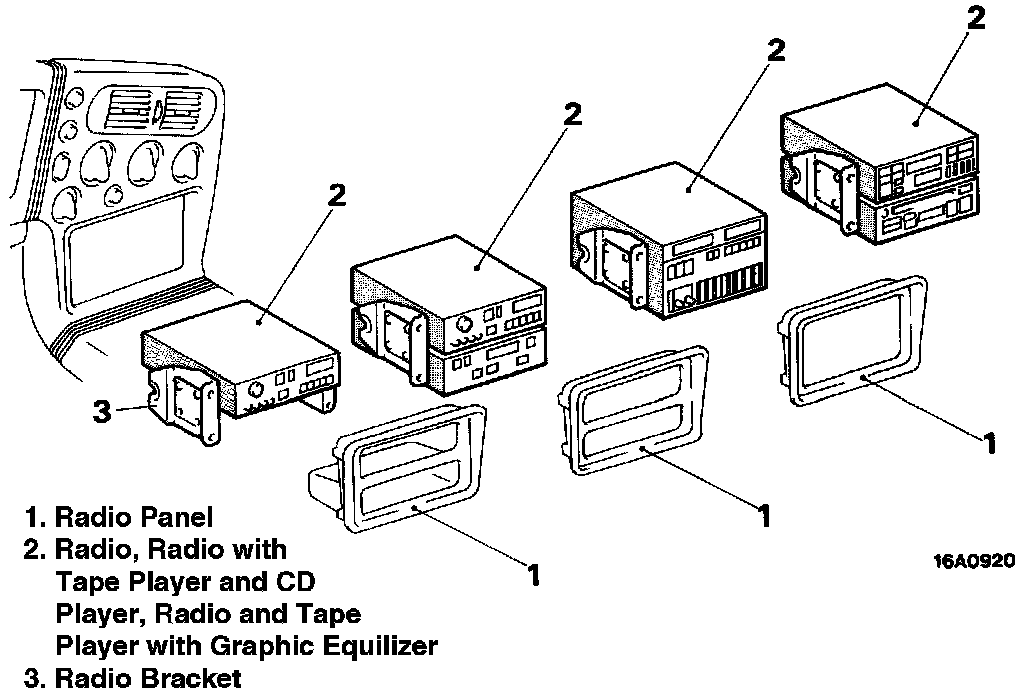

Radio And Tape Player Removal And Installation:
