Home
>>
Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Hazard Warning Lamps
>>
Testing and Inspection
>>
Inspection
Inspection
Inspection Of Hazard Switch:

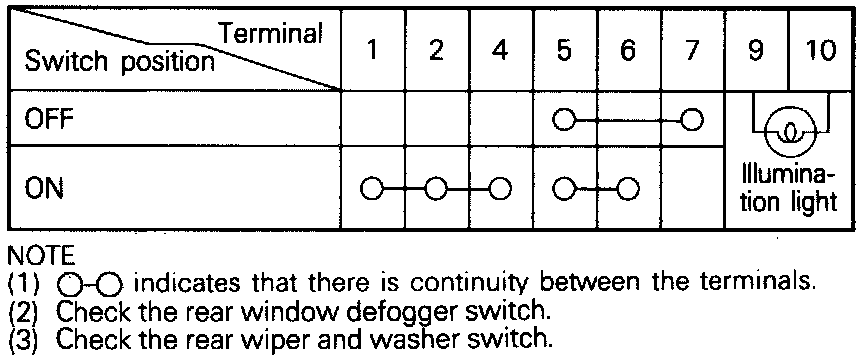

Continuity Chart:

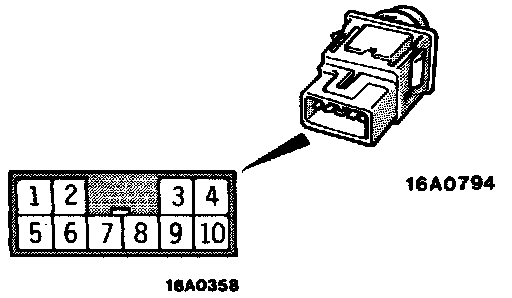

Operate the switch to check for continuity between terminals.
