How to Use Complete Body and Chassis Diagrams

Symbol Identification - 1 of 2:

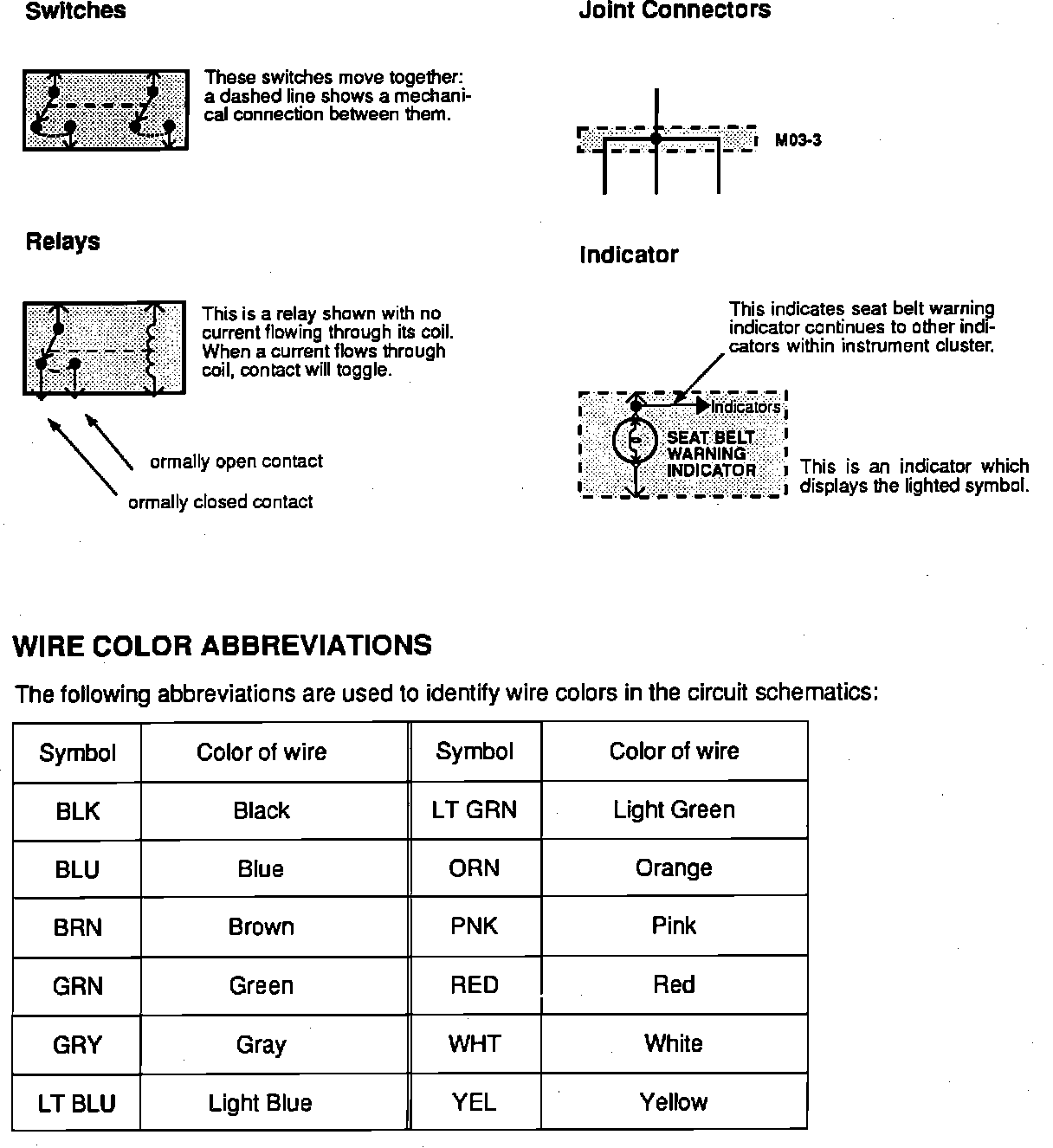

Key To Wiring Diagrams:

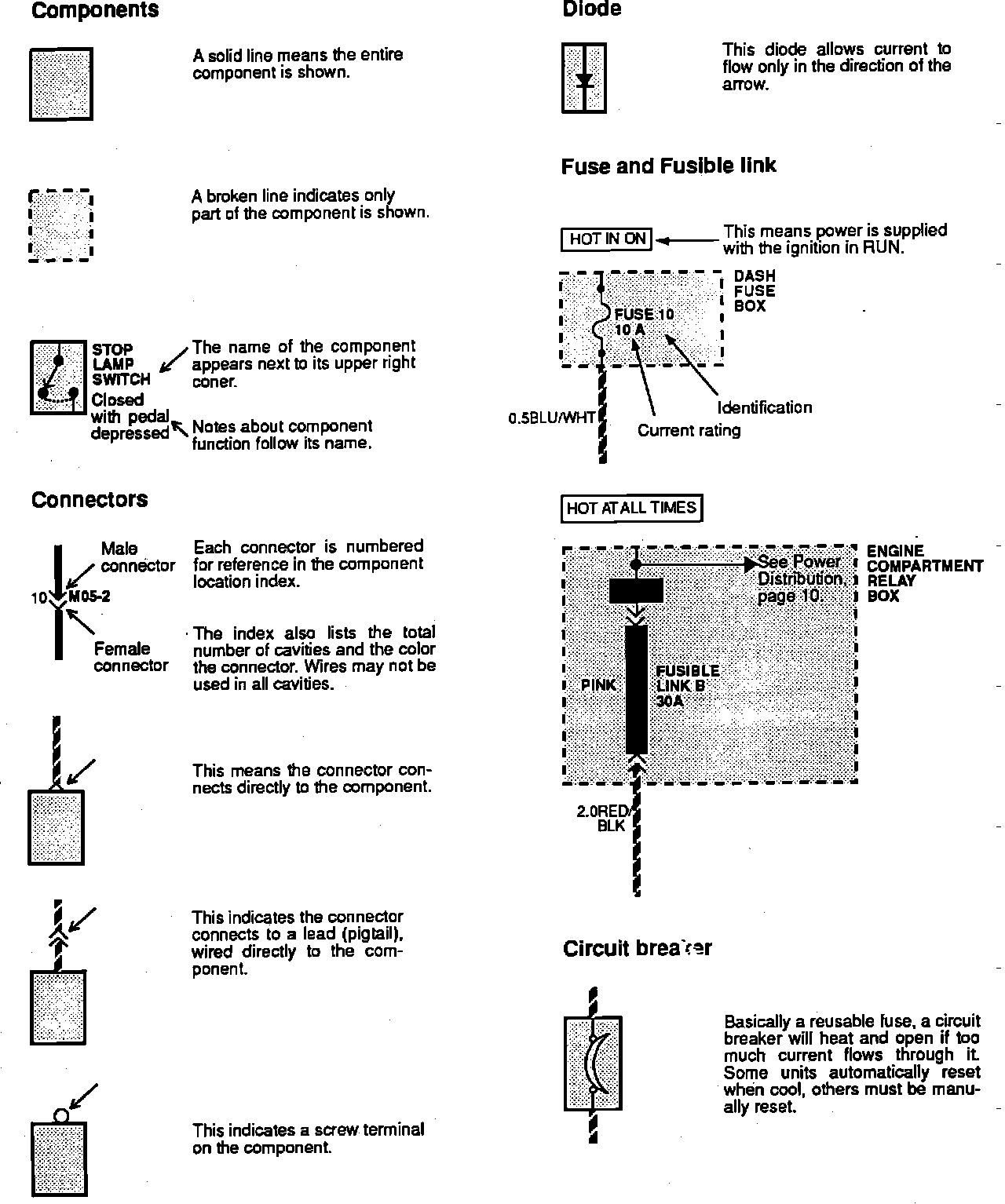

Key To Wiring Diagrams:



Key To Wiring Diagrams:

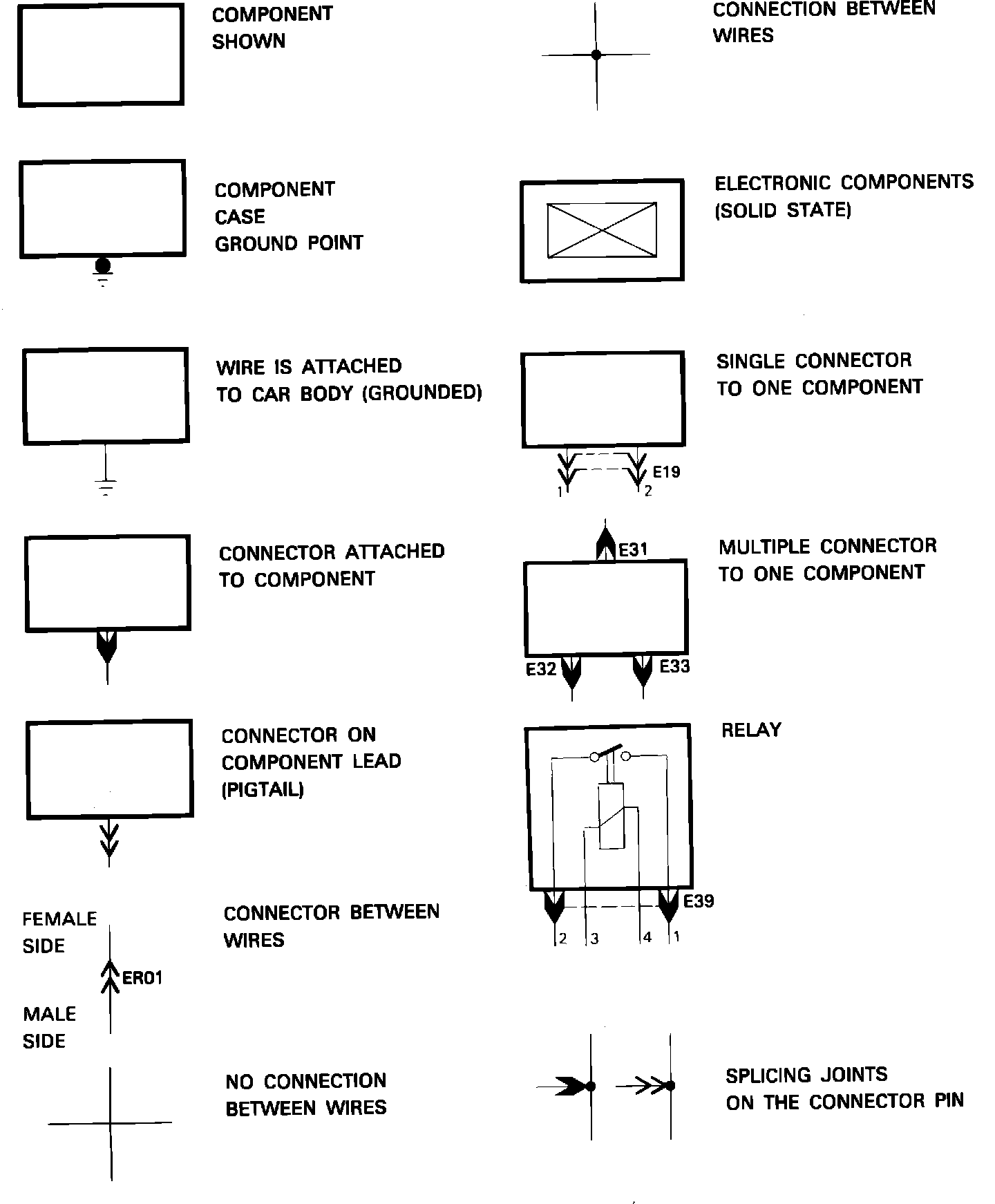

Electrical Symbols:
