Exhaust Gas Recirculation: Locations

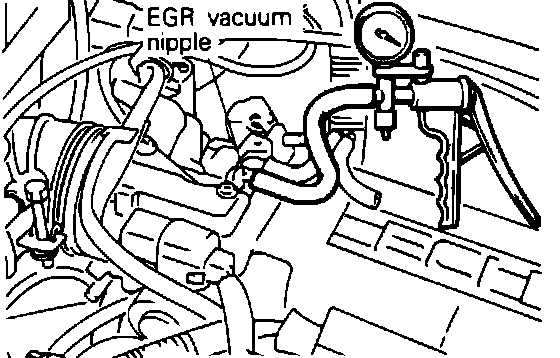

EGR Vacuum Port Location:






The EGR vacuum source is located on the throttle body.
